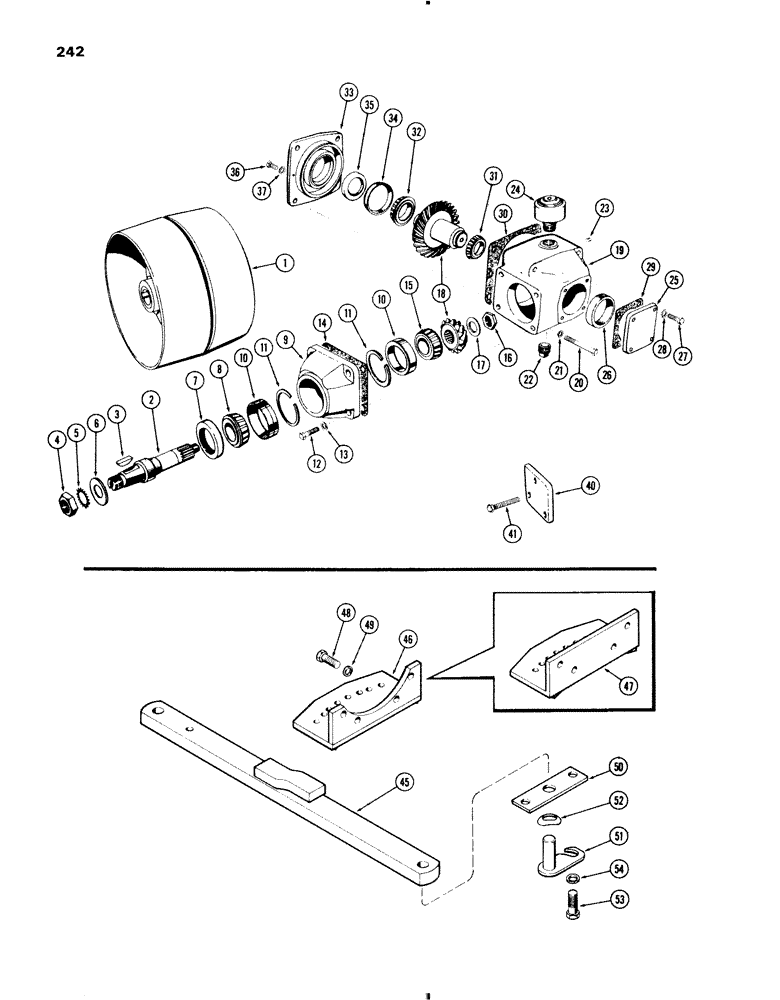

Запчасти Case IH 470 (242) - BEAT PULLEY (09) - CHASSIS/ATTACHMENTS

1

G14189

PULLEY - belt (10-1/4" dia.)

1шт.

2

A36055

SHAFT

- pulley

1шт.

3

126-44

WOODRUFF KEY,#129, 3/8" x 2 1/8"

KEY - pulley to shaft

1шт.

4

25-1516

NUT,Jam, 1"-14, G5

- hex. (1" N.F. jam)

1шт.

5

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

6

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

1шт.

7

G13817

SEAL ASSY.

SEAL - oil, pulley shaft

1шт.

8

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft

1шт.

9

G14188

HOUSING ASSY. - output (includes ref. 10 & 11)

1шт.

10

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing

2шт.

11

A29330

RING, SNAP

RING - snap, bearing cup

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

G46832

GASKET - output housing (.003")

1шт.

15

A36054

CONE

- inner bearing, output shaft

1шт.

16

G16614

NUT

- lock (3/4"-24 thread)

1шт.

17

195-45

WASHER,3/4"

1шт.

18

A37736

GEAR SET - pinion (matched)

1шт.

19

G1297

HOUSING - pinion gear

1шт.

20

15-872

X

BOLT - hex hd. (1/2 x 4-1/2" N.C.) (Gr. 5)

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" square head)

1шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" socket head)

1шт.

24

A9238

BREATHER

- oil

1шт.

25

G14186

HOUSING ASSY. - rear bearing, pinion gear (includes ref. 26)

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rear bearing, pinion

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

G46830

GASKET - rear housing (blue .005")

1шт.

29

G46834

GASKET - rear housing (brown .010")

1шт.

30

G46831

GASKET - front housing (blue .005")

1шт.

30

G46833

GASKET

- front housing (brown .010")

1шт.

31

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - rear bearing, pinion

1шт.

32

G15215

ROLLER BEARING

CONE - front bearing, pinion

1шт.

33

A37645

CARRIER

HOUSING - front bearing, pinion gear

1шт.

34

G15214

BEARING CUP

CUP - front bearing

1шт.

35

G13817

SEAL ASSY.

SEAL - oil, front bearing housing

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

T134

PULLER - belt pulley

1шт.

41

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex hd. (3/8 x 2-1/2" N.C.)

3шт.

45

A37809

BAR

DRAWBAR

1шт.

46

G30266

SUPPORT

- rear, drawbar (Standard 4 Wheel)

1шт.

47

NS

NOT SERVICED

SUPPORT - rear, drawbar (General Purpose) (Order G30266)

1шт.

48

113-661

BOLT - hex hd. (5/8 x 1-3/4" N.C.), drawbar

4шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

50

G10617

SUPPORT

- front, drawbar

1шт.

51

G14403

PIN

- pivot, drawbar

1шт.

52

A35270

WASHER

- spring, drawbar

1шт.

53

113-745

BOLT - hex hd. (3/4 x 1-3/4" N.C.), drawbar

2шт.

54

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar 3/4"

2шт.
