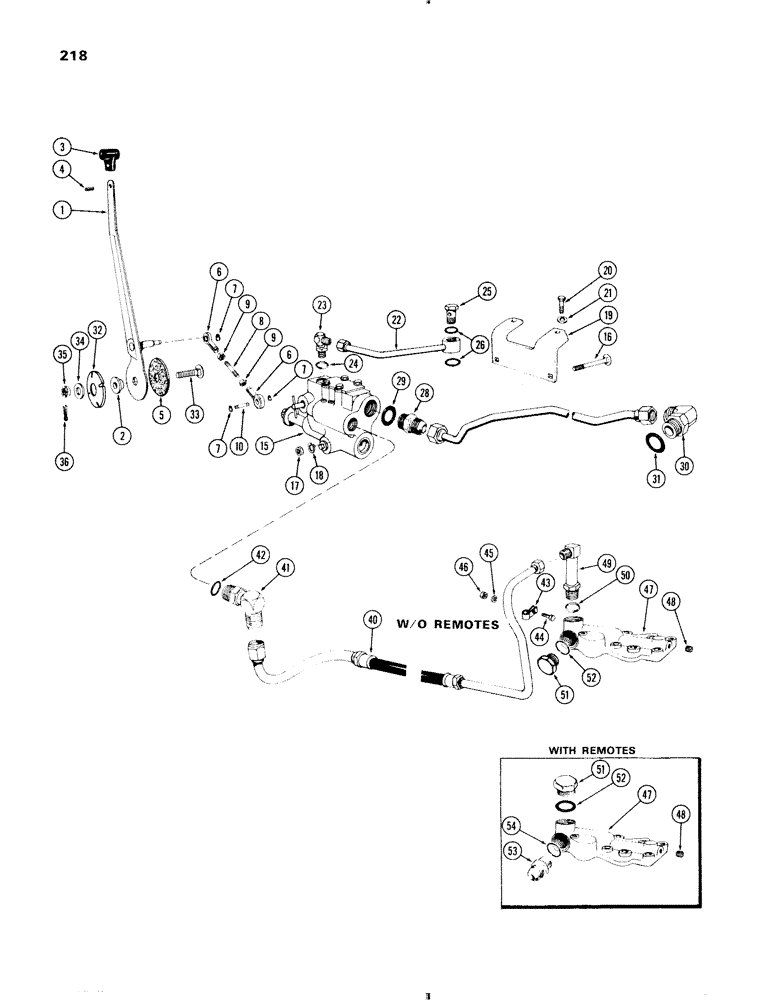

Запчасти Case IH 470 (218) - VALVE AND CONTROLS, DRAFT-O-MATIC, GENERAL PURPOSE MODELS (09) - CHASSIS/ATTACHMENTS

1

A35701

LEVER ASSY. - hand, quadrant control (includes ref. 2, 3 & 4)

1шт.

2

G15947

BUSHING - lever

1шт.

3

A36509

KNOB - lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G10786

DISC

- friction

1шт.

6

A35134

BEARING

EYE - adjusting, control rod

2шт.

7

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING, retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

8

A35135

ROD

- hand, Serial Range: lever-valve

1шт.

9

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex (5/16" N.C. jam)

2шт.

10

A35137

PIN

- rod to valve spool

1шт.

15

A35685

VALVE

ASSY. - control (For Repairs See Page 221)

1шт.

16

11-548

BOLT - (5/16 x 3" round head, square neck)

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

A35136

BRACKET - valve mounting

1шт.

20

113-236

X

BOLT - hex hd. (3/8 x 2" N.C.)

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A35515

TUBE

- valve to rockshaft housing

1шт.

23

A37080

ELBOW

ASSY. - tube to valve (includes ref. 24)

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (1/2" tube)

1шт.

25

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

26

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube screw

2шт.

27

A35140

TUBE

- return

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

3/4" tube (Incl. Ref. 29) 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4" tube)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, return tube (3/4" tube) (Incl. ref. 31) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4" tube)

1шт.

32

G49412

WASHER

- spring

1шт.

33

G49100

BOLT - hand lever

1шт.

34

195-533

WASHER,1/2", SAE

- plain (1/2") (plated)

1шт.

35

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex (1/2" N.C. slotted) (plated)

1шт.

36

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

40

A37765

TUBE - pressure

1шт.

41

A37067

ELBOW ASSY. - pressure tube to valve (5/8" O.D.) (includes ref. 42)

1шт.

42

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 7/64")

1шт.

43

A35506

CLAMP - pressure tube

1шт.

44

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

25-114

NUT,1/4"-28, G5

- hex (1/4" N.C.)

1шт.

47

A35425

COVER ASSY

COVER - adapter housing or remote valve

1шт.

48

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" socket head)

1шт.

49

D23143

FITTING

ELBOW ASSY. - pressure tube to cover (w/o remote valves) (includes ref. 50)

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.

51

86512512

PLUG,7/8" - 14 ORB

(Incl. Ref. 52) Hex Hd, 7/8"-14 ORB

1шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.

53

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube to cover (w/remotes) (includes ref. 54)

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.
