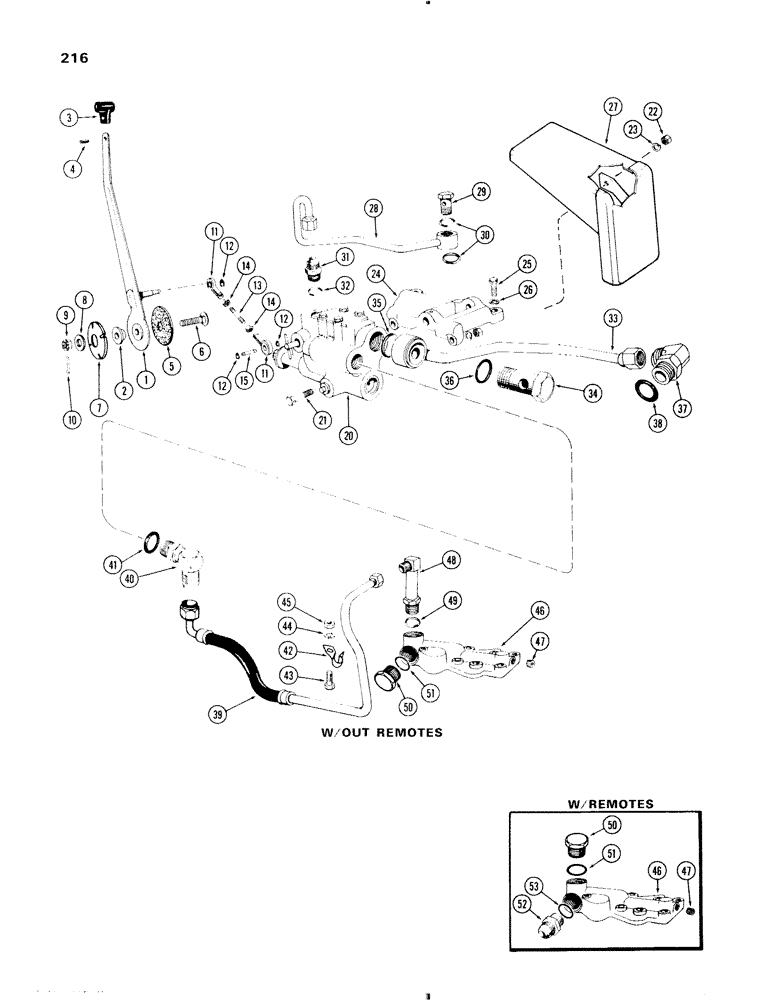

Запчасти Case IH 470 (216) - VALVE AND CONTROLS, DRAFT-O-MATIC, STANDARD 4 WHEEL TRACTOR (09) - CHASSIS/ATTACHMENTS

1

A35701

LEVER ASSY. - hand (includes ref. 2, 3 & 4)

1шт.

2

G15947

BUSHING - lever

1шт.

3

A36509

KNOB - lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G10786

DISC

- friction

1шт.

6

G49100

BOLT - hand lever

1шт.

7

G49412

WASHER

- spring

1шт.

8

195-533

WASHER,1/2", SAE

- plain (1/2") (plated)

1шт.

9

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex (1/2" N.C. slotted) (plated)

1шт.

10

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

11

A35134

BEARING

EYE - adjusting, lever to valve rod

2шт.

12

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING, retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

13

A35135

ROD

- hand, Serial Range: lever-valve

1шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex (5/16" N.F. jam)

2шт.

15

A35137

PIN

- eye to valve spool

1шт.

20

A35685

VALVE

ASSY. - control (For Repairs See Page 221)

1шт.

21

15-552

X

BOLT - rd. hd. (5/16 x 3-1/4" N.C.)

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

A35478

BRACKET

- valve mounting

1шт.

25

113-236

X

BOLT - hex hd. (3/8 x 2" N.C.) (Grade 8)

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

A36515

GUARD

SHIELD - valve

1шт.

28

A35507

TUBE - valve to rockshaft housing

1шт.

29

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (1/2" tube)

1шт.

30

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to housing

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Valve (1/2" O.D.) (Incl. Ref 32) 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2" tube)

1шт.

33

A35490

TUBE

- return

1шт.

34

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

35

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4" O.D.)

1шт.

36

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer (1-1/16" O.D.)

1шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, return tube (Incl. ref. 38) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4" tube)

1шт.

39

A35489

TUBE - pressure

1шт.

40

A37067

ELBOW ASSY. - pressure tube to valve (includes ref. 41)

1шт.

41

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 7/64")

1шт.

42

A35506

CLAMP - pressure tube

1шт.

43

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

45

25-114

NUT,1/4"-28, G5

- hex (1/4" N.F.)

1шт.

46

A35425

COVER ASSY

COVER - adapter housing or remote valve

1шт.

47

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" socket head)

1шт.

48

D23143

FITTING

ELBOW ASSY. - pressure tube to cover (w/o remote valves) (includes ref. 49)

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.

50

86512512

PLUG,7/8" - 14 ORB

(Incl. Ref. 51) Hex Hd, 7/8"-14 ORB

1шт.

51

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.

52

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - pressure tube to cover (w/remotes)

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" tube)

1шт.
