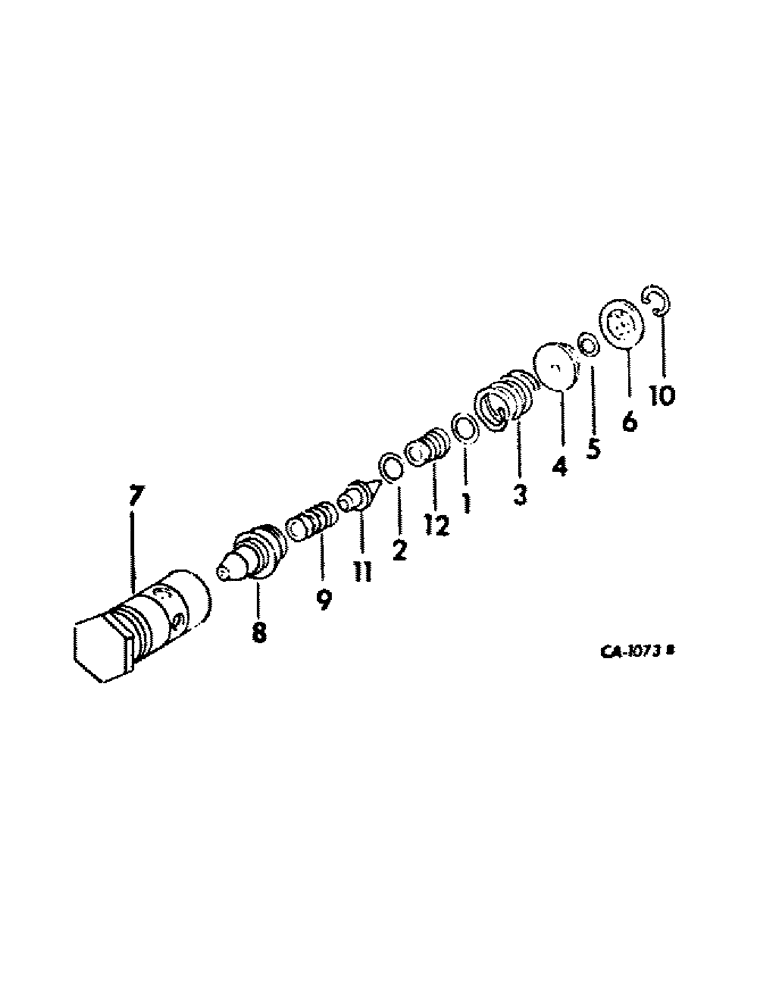

Запчасти Case IH 464 (10-22) - HYDRAULICS, PILOT RELIEF VALVE (07) - HYDRAULICS

399858R92

VALVE

ASSY, pilot relief

1шт.

1

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/16 x 7/16 x 1/16, class 5

1шт.

2

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

3

386040R1

SPRING

poppet return

1шт.

4

386042R1

PLATE

orifice

1шт.

5

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

6

386073R91

SCREEN

ASSY, pilot relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, relief valve, not serviced separately, furnish valve assy

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET, pilot relief valve, not serviced separately, furnish valve assy

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING, pilot relief, not serviced separately, furnish valve assy

1шт.

10

NSS

NOT SOLD SEPARAT

RING, cap retaining, not serviced separately, furnish valve assy

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET, not serviced separately, furnish valve assy

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT, valve, not serviced separately, furnish valve assy

1шт.
