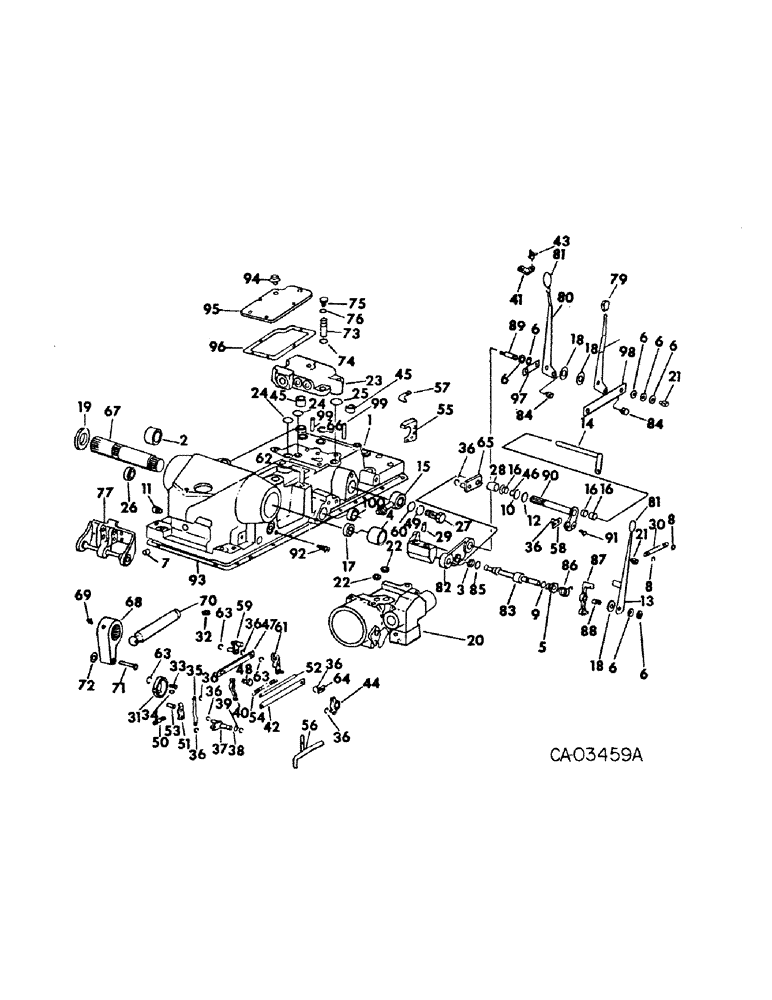

Запчасти Case IH 464 (10-16) - HYDRAULICS, DRAFT CONTROL (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
406003R22
HOUSING ASSY.
HOUSING ASSY, hydraulic unit, includes Ref. nos. 2, 4, 7, 11, 62, 99 and 100
1шт.
179846
LEVER
11шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
SCREW, 3/8-16 x 2-3/4 hex-hd cap
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
14шт.
179885
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
2шт.
179888
LEVER
SCREW, 1/2-13 x 1-7/8 hex-hd cap
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
20953R1
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
PLUG, 1-1/4 x 11 x 1/2 automotive sq-hd pipe
1шт.
2
399992R1
BUSHING
BEARING, rockshaft RH
1шт.
3
529355R1
WASHER
back-up
2шт.
4
527749R1
BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L
rockshaft LH
1шт.
5
529356R1
PLUG
variable flow control valve
1шт.
6
536847R1
BELLEVILLE WASHER
WASHER, belleville
7шт.
18253R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 nylon insert
3шт.
7
273279R91
BUSHING
BEARING, sensing shaft
2шт.
376022R91
OIL SEAL
SEAL, sensing shaft oil
1шт.
8
204502R1
SNAP RING,#43, Ext
Arm #43, Ext
4шт.
9
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube
1шт.
10
574069R1
O-RING,0.750" ID x .062"
3/4 x 7/8 x 1/16
1шт.
11
399993R1
BUSHING
eccentric shaft
1шт.
12
252739R1
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1/2 x 11/16 x 3/32
1шт.
13
527921R1
LEVER ASSY.
LEVER ASSY, flow control adj
1шт.
14
534352R1
SHAFT ASSY.
SHAFT ASSY, load control
1шт.
15
66762C1
PIPE,0.625" OD, 3.5" Length
TUBE ASSY, inlet union
1шт.
16
374940R1
NYLON BEARING
BEARING, control lever shaft
3шт.
17
380770R91
OIL SEAL
SEAL, rockshaft RH oil
1шт.
18
380421R1
FRICTION WASHER
DISC, sensitivity control friction
3шт.
19
537126R2
PLATE
retaining lift arm
2шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap
2шт.
20
NSS
NOT SOLD SEPARAT
VALVE ASSY, draft control cyl, for components, see list of parts under details of draft control cylinder valve
1шт.
179884
BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd
SCREW, 1/2-13 x 1-3/8 hex-hd cap
3шт.
400000R1
SEALING WASHER
cap screw sealing
2шт.
21
400087R1
PIN
hitch link connecting rear
2шт.
22
400002R1
OLIVE
SEAL, cyl to hyd hsg
2шт.
23
59098C93
VALVE
ASSY, unloading & flow control, for components, see list of parts under details of unloading and flow control valve
1шт.
179848
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
2шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
24
377952R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
9/16 x 3/4 x 3/32
2шт.
25
21433R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
11/16 x 7/8 x 3/32
1шт.
26
380212R91
OIL SEAL
SEAL, rockshaft LH oil
1шт.
27
66766C1
PLUG
inlet union
1шт.
28
527927R1
SPACER
load control shaft
1шт.
29
364577R1
PIN,5/32" x 3/4", Coiled
1шт.
30
400085R1
STUD
hitch link connecting rod
2шт.
31
533340R1
HUB ASSY.
HUB ASSY, rockshaft actuating
1шт.
32
406734R1
SEAL
teflon
3шт.
33
377792R1
SET SCREW
SCREW, rockshaft hub set
1шт.
34
376057R1
BUCKET TOOTH KEY
KEY, rockshaft hub
1шт.
35
400008R1
LINK
position control walking
1шт.
36
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, #X31, .243" Dia, E-Type
8шт.
37
400036R1
ECCENTRIC ASSY.
ECCENTRIC ASSY, position control
1шт.
38
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16
1шт.
39
971043R1
SNAP RING,#50, Ext
Eccentric shaft #50, Ext
1шт.
40
400014R1
LEVER ASSY.
LEVER ASSY, follow up walking beam
1шт.
41
528169R1
STOP
position control
1шт.
42
400016R1
BAR
walking beam to quadrant link
1шт.
43
531340R1
KNOB
adjustable stop pin
1шт.
44
400017R1
LEVER ASSY.
LEVER ASSY, slow motion actuating
1шт.
102436
SET SCREW,Sq Hd, 1/4"-20 x 1 1/2"
1шт.
45
401941R1
SPACER
rear top cover mtg
2шт.
46
303004R1
SNAP RING,#78, Ext
Slow motion actuating lever #78, Ext
1шт.
47
400019R1
LINK
walking, Serial Range: beam-valve
1шт.
Q3817
WASHER
.344 x .656 x .021 plain
1шт.
48
376041R1
SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet
Shoulder
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .051
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
49
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
50
400020R1
ROD
draft control
1шт.
51
400021R1
LINK ASSY.
LINK ASSY, draft control
1шт.
52
400024R1
PIN
BAR, sensing beam
1шт.
53
400038R1
PIN
sensing lever
1шт.
20092R1
PIN,3/16" x 1 3/8", Coiled
3/16" x 1-3/8", coiled
1шт.
54
400025R1
SPRING
sensing beam
1шт.
55
400026R2
SUPPORT
BRACKET ASSY, hyd switch lever
1шт.
56
400029R1
TUBE
ASSY, lub, tractors w/steel draft control cylinder body
1шт.
56
60652C1
TUBE ASSY.
TUBE ASSY, lub, tractors w/cast iron draft control cylinder body
1шт.
222-504
TUBE NUT,9/16"-20
NUT, 9/16-20 hi-duty fitting
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
57
400033R1
LEVER
hyd switch
1шт.
179814
SPACER
1шт.
532467R1
WASHER
safety switch
1шт.
532468R1
SPACER
safety switch
1шт.
58
527926R1
LINK
flow control over-ride
1шт.
59
400039R1
PLATE ASSY.
PLATE ASSY, eccentric
1шт.
60
384376R1
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
15/16 x 1-1/16 x 1/16
1шт.
61
400042R2
LEVER ASSY.
LEVER ASSY, draft control trigger
1шт.
62
531143R2
STUD
top cover long
2шт.
63
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, #37, .300" Dia, E-Type
3шт.
64
400044R1
LINK
, Serial Range: trigger-quadrant
1шт.
65
534728R1
LEVER
ASSY, draft sensitivity control
1шт.
66
59099C1
O-RING,2.39mm Thk x 6.6mm ID
1шт.
67
400049R2
SHAFT
ROCKSHAFT, hyd draft control
1шт.
68
400053R1
LEVER
rockshaft bellcrank
1шт.
69
376069R1
SET SCREW
SCREW, rockshaft bellcrank set
1шт.
70
400054R1
PIN
ROD, hyd cyl connecting
1шт.
71
400052R1
PIN
hyd cyl conn. rod
1шт.
16558R1
WASHER
17/64 x 5/8 x 18 ga.
1шт.
72
83723R1
WAVE WASHER
spring
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
73
400095R92
VALVE, CUSHION
VALVE ASSY, cushion
1шт.
74
702788R1
O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro
3/8 x 9/16 x 3/32
1шт.
75
536855R1
PLUG
3/4-16 str thd
1шт.
77
527229R91
SUPPORT
SPRING ASSY, draft sensing
1шт.
21047R1
HEX SOC SCREW,5/8"-11 x 1 3/4"
5/8-11 x 1-3/4 hex-soc-hd
4шт.
19842R1
DOWEL,5/16" x 1/2"
PIN, 5/16 x 1/2 dowel
1шт.
78
528158R2
LEVER
load control
1шт.
79
400068R1
BUTTON
GRIP, load control
1шт.
80
528159R1
LEVER
position control
1шт.
81
400072R1
BUTTON
GRIP, position and speed control
2шт.
82
529349R2
SUPPORT ASSY.
SUPPORT ASSY, hitch control shaft
1шт.
83
529351R1
SPOOL
variable flow control
1шт.
84
400086R1
PIN
hitch link connecting front
2шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
2шт.
85
360599R1
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
3/16 x 5/16 x 1/16
2шт.
86
529352R1
SPRING
return
1шт.
87
529353R1
ARM ASSY.
ARM ASSY, flow control
1шт.
102436
SET SCREW,Sq Hd, 1/4"-20 x 1 1/2"
1шт.
65461C1
SET SCREW
SCREW W/NYLON PATCH INSERT, 1/4-28 x 3/8 hdls-hex-soc-set
1шт.
88
527919R1
BOLT
BOLT - Flow lever pivot
1шт.
89
400081R1
BOLT,3/8" - 16 x 72.90mm, HT
- Hitch control lever pivot
1шт.
19716R1
PIN,4.75mm OD x 44.45mm L, Coiled
3/16" x 1-3/4", coiled
2шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
90
400079R1
SHAFT ASSY.
SHAFT ASSY, position control lever
1шт.
91
527923R1
PIN
link arm
1шт.
92
82301R1
BLEEDER,3/8" - 24 x 117mm
brake bleed
2шт.
93
NSS
NOT SOLD SEPARAT
GASKET, hyd lift housing lower, not serviced separately, furnish gasket package 538649R92
1шт.
94
65970C2
BREATHER ASSY.
BREATHER ASSY, hyd unit housing
1шт.
444695
PLUG
3/8-18 auto-hex-soc-hd pipe
1шт.
95
65969C1
COVER
linkage access
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
5шт.
96
399996R1
GASKET
linkage access cover
1шт.
97
537600R1
PLATE
inner retaining
1шт.
98
536849R1
PLATE
outer retaining
1шт.
99
531144R1
STUD
top cover short
2шт.
100
376011R1
BUSHING
quadrant shaft
1шт.
538649R92
GASKET KIT
PACKAGE, rear frame cover gasket, consists of (1) gasket (NSS), (3) seal 406734R1
1шт.
