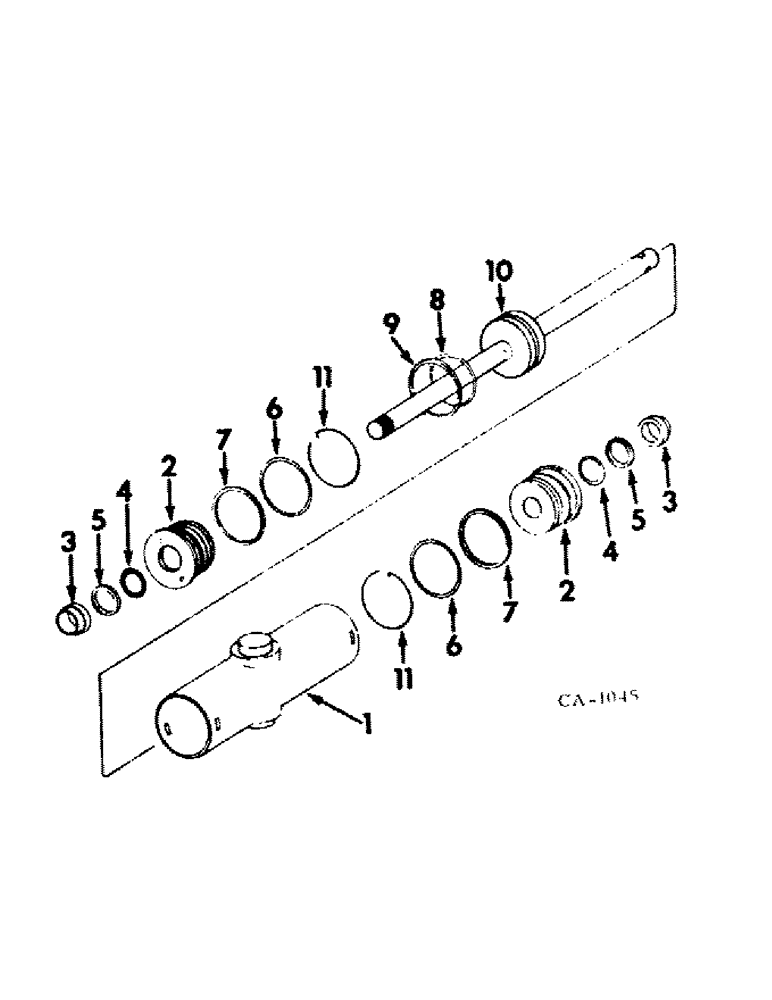

Запчасти Case IH 464 (10-08) - HYDRAULICS, POWER STEERING CYLINDER (07) - HYDRAULICS

549667R91

STEERING CYLINDER

CYLINDER ASSY, hyd power steering

1шт.

84336125R

REMAN-HYD CYLINDER

464 (1/73-12/73), Reman for New P/N 549667R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

400587R1

HYD CYL SLEEVE

BODY ASSY, hyd cyl

1шт.

84336125R

REMAN-HYD CYLINDER

464 (1/73-12/73), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

400591R1

HEAD

rear

2шт.

3

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, piston rod

2шт.

4

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8

2шт.

5

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod back-up

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8, rear head static

2шт.

7

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

rear head back-up

2шт.

8

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 x 2-1/4 x 3/32, piston seal, replaces 379961R1

1шт.

9

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL RING, piston

1шт.

10

549668R1

PISTON ROD

ROD ASSY, piston

1шт.

11

385133R1

RETAINING WIRE

RING, retaining

2шт.

55355C91

GASKET KIT

PACKAGE, hydraulic cylinder, consists of Ref. nos. 3 thru 9 and 11

1шт.
