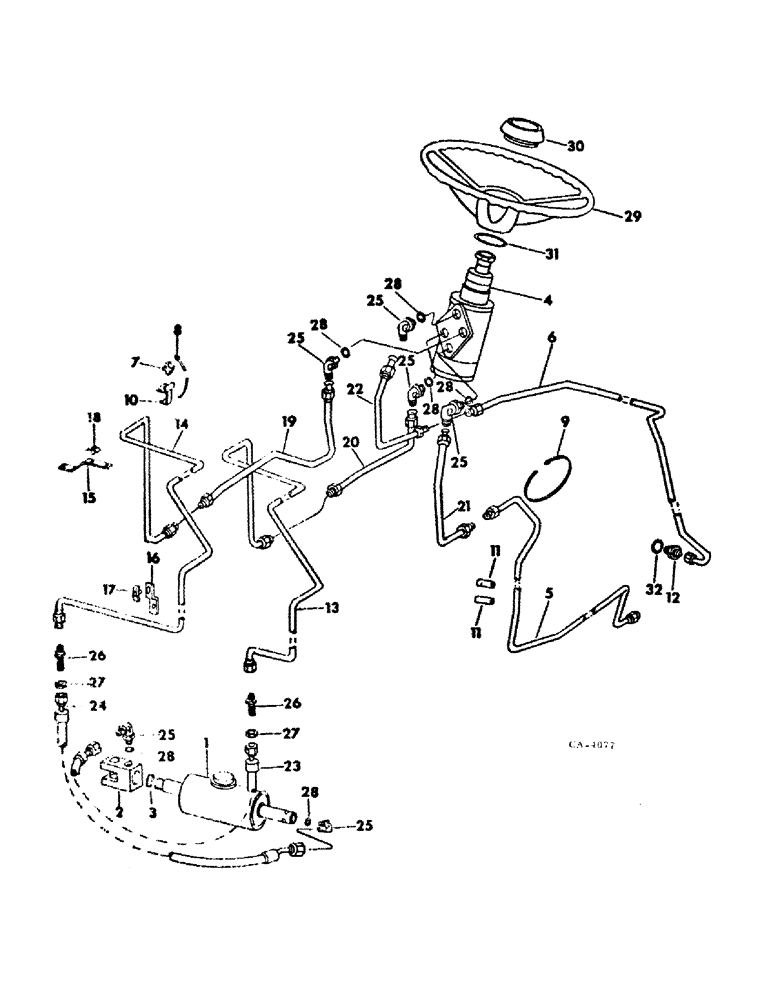

Запчасти Case IH 464 (10-07) - HYDRAULICS, POWER STEERING, TRACTORS WITH SKIDDED UNIT NO. 101631 AND ABOVE (07) - HYDRAULICS

1

549667R91

STEERING CYLINDER

CYLINDER ASSY, hyd power steering, for components, see list of parts under details of power steering cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

464 (1/73-12/73), Reman for New P/N 549667R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

549670R2

CLEVIS,3/4" - 16

cyl end

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/3 OD tube

1шт.

67488C2

PIN

power steering cyl

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

4

70110C94

PUMP

STEERING ASSY, integral hydrostatic, replaces 534852R92, for components, see list of parts under details of integral hydrostatic steering assy

1шт.

5

66104C1

PIPE

TUBE ASSY, power steering return rear

1шт.

6

66105C1

TUBE ASSY.

TUBE ASSY, power steering pressure rear

1шт.

10

529638R1

BRACKET

rear manifold

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE, spacer, furnish 2.5 in. of hose from a bulk roll marked 530107R1

2шт.

12

57577C1

CHECK VALVE

VALVE ASSY, power steering check

1шт.

13

66106C1

TUBE

ASSY, power steering LH fwd

1шт.

14

66108C1

TUBE

ASSY, power steering RH fwd

1шт.

15

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

529643R11

CLAMP

ASSY, power steering tube

1шт.

18

384891R11

CLAMP

ASSY, power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

66110C1

TUBE

ASSY, power steering RH rear

1шт.

20

66111C1

TUBE

ASSY, power steering LH rear

1шт.

21

66112C1

TUBE,0.375" OD, 11.75, 4.35" Length

ASSY, power steering return fwd

1шт.

22

66114C1

TUBE,0.375" OD, 8.78, 5.39" Length

ASSY, power steering pressure fwd

1шт.

23

530131R1

HOSE

ASSY, power steering cyl LH

1шт.

24

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

HOSE ASSY, power steering cyl RH

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

6шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

27

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.

29

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia. steering

1шт.

29

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

30

68837C1

CAP

steering wheel, replaces 378395R1

1шт.

31

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
