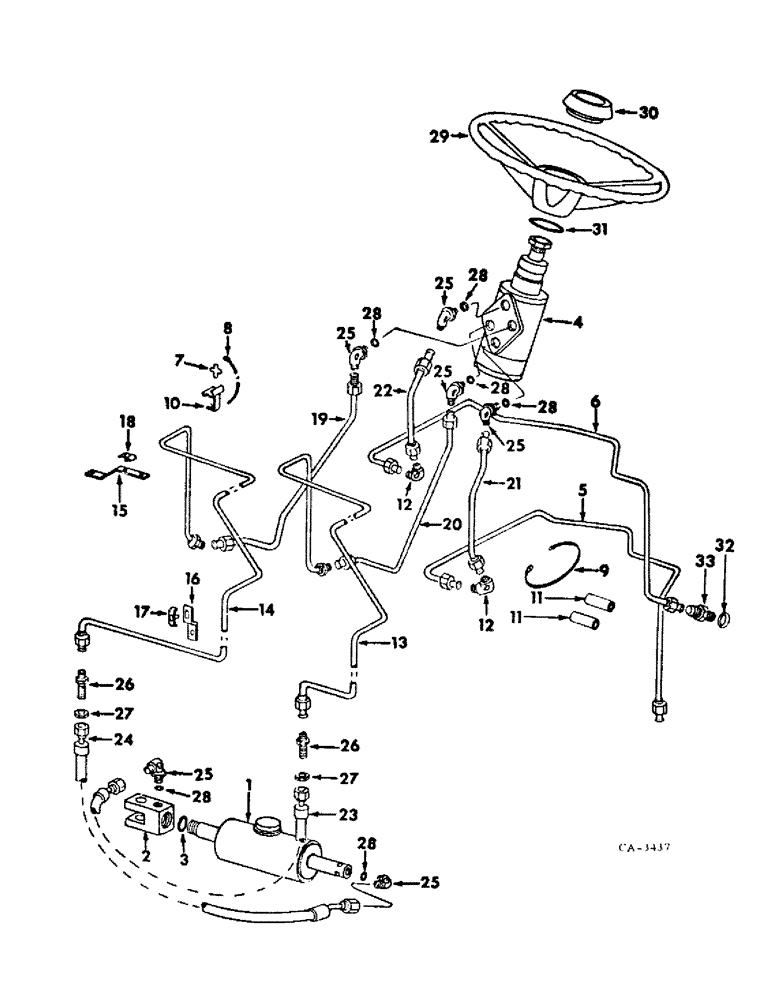

Запчасти Case IH 464 (10-05) - HYDRAULICS, POWER STEERING (07) - HYDRAULICS

1

549667R91

STEERING CYLINDER

CYLINDER ASSY, hyd power steering, for components, see list of parts under details of hydraulic cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

464 (1/73-12/73), Reman for New P/N 549667R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

549670R1

CLEANER

CLEVIS, cyl end

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

4

534852R92

HYDRAULIC STEERING

STEERING ASSY, hydrostatic integral, order 70100C94, for components, see list of parts under details of hydrostatic integral steering assy.

1шт.

5

529615R1

TUBE

ASSY, power steering return rear

1шт.

6

529616R1

TUBE

ASSY, power steering pressure rear

1шт.

7

529637R2

GUIDE

manifold tube

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

10

529638R1

BRACKET

rear manifold

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER, tube, furnish 2.5 in. of hose from a bulk roll marked 530107R1

2шт.

12

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube 90 deg elbow

2шт.

13

529620R1

TUBE

ASSY, power steering LH forward

1шт.

14

529621R1

TUBE

ASSY, power steering RH forward

1шт.

15

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

529643R11

CLAMP

ASSY, power steering tube

1шт.

18

384891R11

CLAMP

ASSY, power steering tube

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

529622R1

TUBE

ASSY, power steering RH rear

1шт.

20

529623R1

TUBE ASSY, power steering LH rear

1шт.

21

529624R1

TUBE

ASSY, power steering return fwd

1шт.

22

529625R1

TUBE

ASSY, power steering pressure fwd

1шт.

23

530131R1

HOSE

ASSY, power steering cyl LH

1шт.

24

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

HOSE ASSY, power steering cyl RH

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

6шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

27

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.

29

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia. steering

1шт.

29

385156R1GV

STEERING WHEEL

value, Steering Wheel

1шт.

30

68837C1

CAP

steering wheel, replaces 378395R1

1шт.

31

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

32

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

33

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
