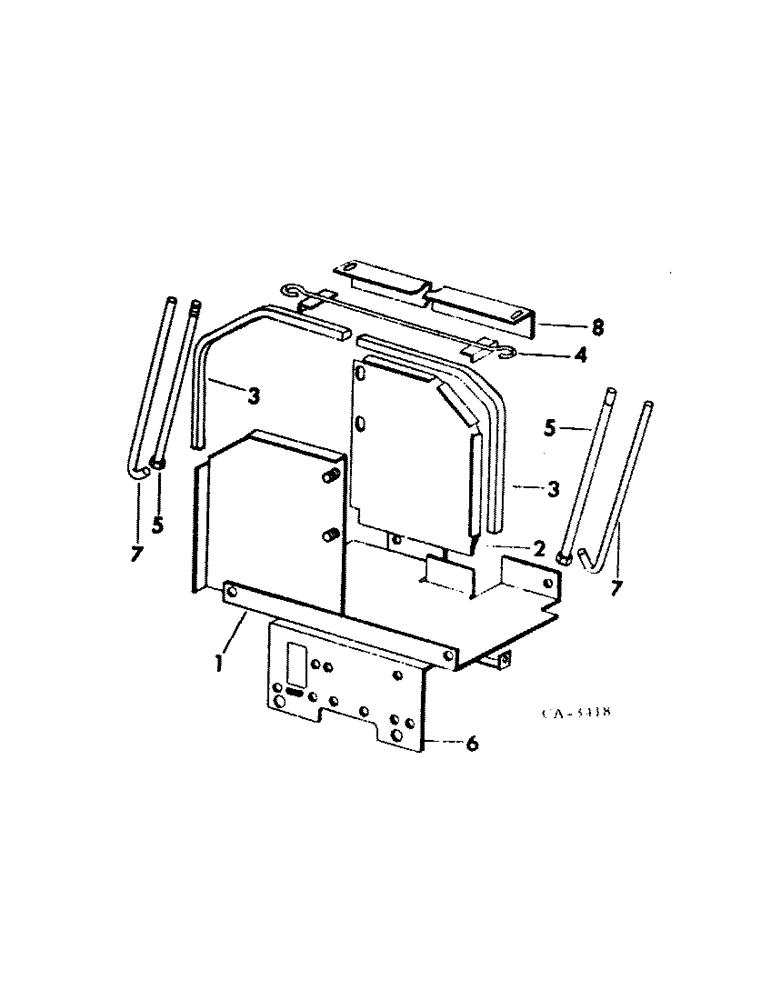

Запчасти Case IH 464 (08-18[1]) - ELECTRICAL, BATTERY TRAY, TWO PIECE, DIESEL ENGINE TRACTORS BUILT PRIOR TO DECEMBER, 1975 (06) - ELECTRICAL

1

536333R2

TRAY ASSY, battery, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap, 2 piece, diesel engine tractors built prior to 12/75

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 2 piece, diesel engine tractors built prior to 12/75 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2 piece, Diesel engine tractors built prior to 12/75 3/8"-16, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , 2 piece, Diesel engine tractors built prior to 12/75 1/4"

1шт.

109084

NUT,1/4"-20, G5

2 piece, diesel engine tractors built prior to 12/75 1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 2 piece, Diesel engine tractors built prior to 12/75 3/8"

1шт.

102635

NUT,3/8"-16, G5

2 piece, diesel engine tractors built prior to 12/75 3/8"-16, G5

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z, 2 piece, diesel engine tractors built prior to 12/75

2шт.

121637

LOCK WASHER

WASHER, 1/4 C-Z lt lock, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 piece, Diesel engine tractors built prior to 12/75 1/4"-20, G5

2шт.

20893R1

WASHER

11/32 x 1 x .120, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 2 piece, diesel engine tractors built prior to 12/75 5/16"

2шт.

120376

NUT,5/16"-18, G5

2 piece, Diesel engine tractors built prior to 12/75 5/16"-18, G5

2шт.

2

527602R1

SHIELD, battery LH heat, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET, battery heat shield, furnish 19 in. from a 4 ft. length marked 73217C1, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

2шт.

4

67845C1

SUPPORT

BRACKET ASSY, battery hold down, tractors w/heavy duty battery, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

1шт.

5

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT, 5/16-18 x 9-1/2 sq-nk crg, tractors w/heavy duty battery, 2 piece, diesel engine tractors built prior to 12/75

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z, 2 piece, diesel engine tractors built prior to 12/75

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, 2 piece, diesel engine tractors built prior to 12/75

2шт.

6

527599R3

SUPPORT, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

1шт.

7

527605R3

ROD

battery hold down, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z, 2 piece, diesel engine tractors built prior to 12/75

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, 2 piece, diesel engine tractors built prior to 12/75

2шт.

8

527604R1

ANGLE

BRACKET, battery hold, 2 piece, diesel engine tractors built, Serial Range: prior-12/75

1шт.
