Запчасти Case IH 464 (08-17) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

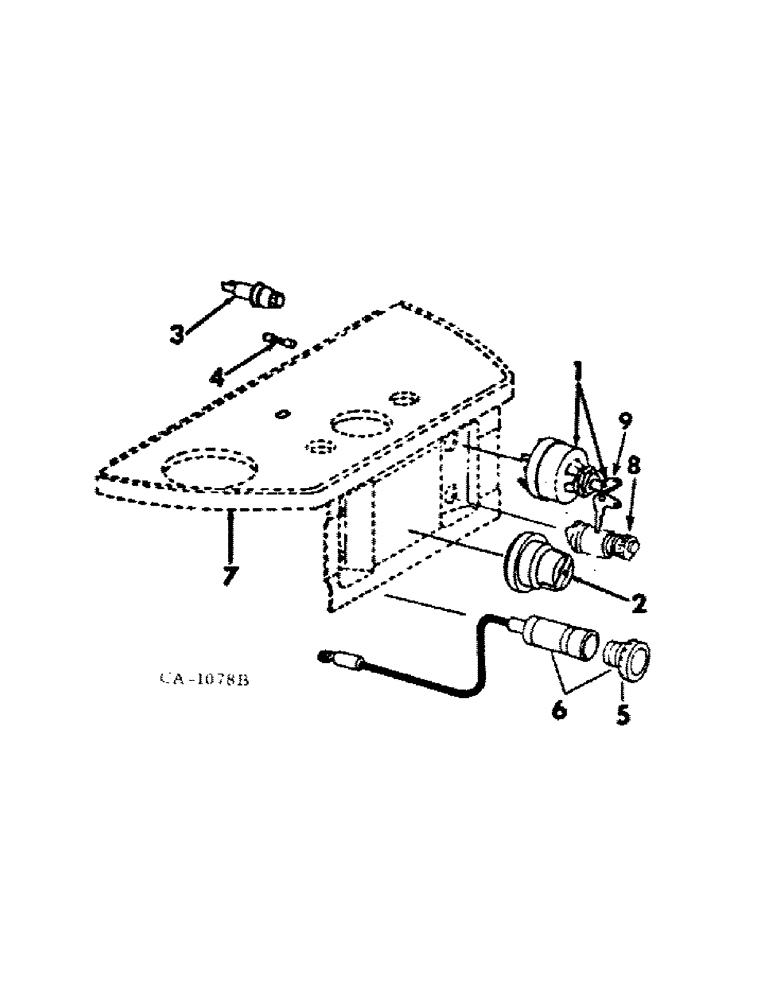

Схема запчастей Case IH 464 - (08-17) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL
5
6
4
8
7
2
3
1
9

Артикул

Название

Примечание

Количество

1

529800R91

SWITCH ASSY

SWITCH, ignition, tractors w/serial no. 109150 and below; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

371486R1

NUT, 5/8-32 hex

1шт.

534211R1

SPRING WASHER

spring

1шт.

1

107682C1

SWITCH

ignition, tractors w/serial no. 109151 and above

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

365502R1

NUT

ignition key mounting

1шт.

2

376851R92

SWITCH

ASSY, lighting, tractors w/serial no. 109150 and below

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting, tractors w/serial no. 109151 and above

1шт.

3

376852R91

HOUSING

fuse

1шт.

4

432644

FUSE,20 Amp, Type SFE

cartridge SFE-20

1шт.

5

378781R91

PACKAGE

UNIT, popout

1шт.

6

378338R91

CIGAR LIGHTER

PARTS ACCESSORY, cigarette lighter

1шт.

7

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH ASSY, horn, refer to horn listing

1шт.

9

3110259R1

KEY

ignition, tractors w/serial no. 109150 and below

2шт.

9

382458R2

KEY

ignition, tractors w/serial no. 109151 and above

1шт.

Выбрано товаров: 16
