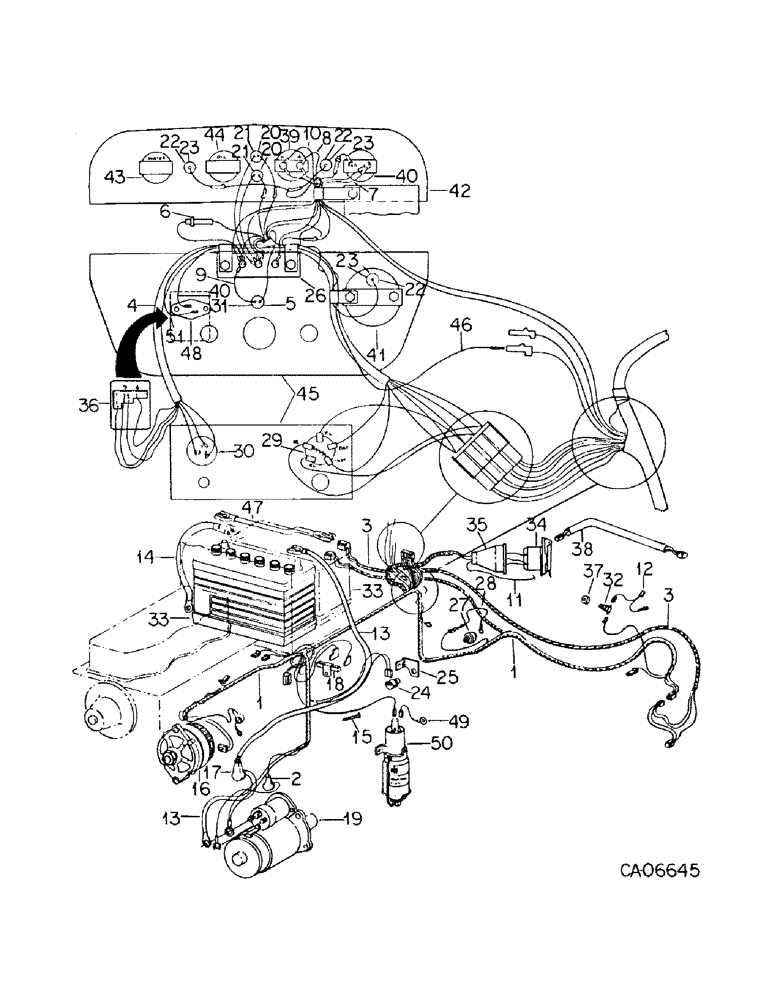

Запчасти Case IH 464 (08-12) - ELECTRICAL, BASIC TRACTOR WIRING, DIESEL ENGINE TRACTORS, WITH TRACTOR SERIAL NO. 109151 AND ABOVE (06) - ELECTRICAL

1

114607C1

HARNESS

ASSY, main cable

1шт.

2

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

3

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

4

114604C1

HARNESS

ASSY, panel cable

1шт.

5

149559

FUSE, cartridge type AGA-1 1 Amp, Type 1AG

1шт.

5

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC-1

1шт.

6

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC-10

1шт.

7

529660R1

CABLE

ASSY, junction block to fuel gauge

1шт.

8

529661R1

CABLE

ASSY, junction block to charge indicator positive terminal

1шт.

9

404530R1

CABLE

ASSY, junction, Serial Range: block-fuse

1шт.

10

404391R1

CABLE

ASSY, junction block to charge indicator negative terminal

1шт.

11

104388C1

GROUND CABLE

CABLE ASSY, Serial Range: connector-ground

1шт.

12

405229R1

CABLE

ASSY, parking brake ground

1шт.

13

529662R1

CABLE

ASSY, battery to solenoid switch

1шт.

14

529663R1

CABLE

ASSY, Serial Range: battery-ground

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

1шт.

15

306132C1

CABLE TIE,14.5" L

STRAP

1шт.

16

NSS

NOT SOLD SEPARAT

ALTERNATOR-GENERATOR, for components, see list of parts under details of alternator-generator

1шт.

17

364910R1

BOOT

INSULATOR, terminal cover boot

1шт.

18

534784R1

RESISTOR

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 pln type 1

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

19

NSS

NOT SOLD SEPARAT

MOTOR, cranking, Delco Remy, for components, see list of parts under details of cranking motor

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 LT lock

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

20

70263C91

SOCKET

PACKAGE, parking brake and trans oil pressure socket, replaces 537804R1

1шт.

21

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-V, parking brake & trans oil press warning light

2шт.

22

537803R1

SOCKET

ASSY, instrument light

3шт.

23

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-V, tachometer & gauges

3шт.

24

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replacing 382728R91

1шт.

25

533859R1

BRACKET

neutral safety switch

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

27

376855R92

SWITCH

transmission oil pressure

1шт.

28

404531R1

CABLE

junction

1шт.

29

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and switches listing

1шт.

30

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ignition key, refer to engine controls and switches listing

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING ASSY, fuse, refer to engine controls and switches listing

1шт.

32

404352R1

SWITCH

SWITCH ASSY, park brake warning light

1шт.

33

395599C1

BATTERY, Prestolite 3010X, 12 volt, replaces 65247C1

1шт.

33

537532R1

BATTERY, Prestolite 1266X, 6 volt, heavy duty

2шт.

34

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, 7 contact

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

35

783611C1

BOOT

COVER, 7 contact socket rubber

1шт.

36

107334C91

SWITCH

ASSY, turn signal, flasher, not for use in California

1шт.

36

130816C91

KEY, IGNITION

SWITCH ASSY, turn signal, flasher, for use in California

1шт.

37

534351R1

COVER

warning light switch

1шт.

38

66064C1

HARNESS

ASSY, combination light extension, used w/protective frame

1шт.

39

NSS

NOT SOLD SEPARAT

GAUGE ASSY, charge indicator, refer to instrument panel and gauges listing, group 11

1шт.

40

NSS

NOT SOLD SEPARAT

GAUGE ASSY, fuel, refer to instrument panel and gauges listing group 11

1шт.

41

NSS

NOT SOLD SEPARAT

TACHOMETER, refer to instrument panel and gauges listing, group 11

1шт.

42

NSS

NOT SOLD SEPARAT

PANEL, instrument face, refer to instrument panel and gauges listing, group 11

1шт.

43

NSS

NOT SOLD SEPARAT

INDICATOR ASSY, heat, refer to instrument panel and gauges listing, group 11

1шт.

44

NSS

NOT SOLD SEPARAT

GAUGE ASSY, oil pressure indicator, refer to instrument panel and gauges listing, group 11

1шт.

45

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

46

66219C1

CABLE ASSY, junction block to ether switch

1шт.

47

370394R91

CABLE

ASSY, battery to battery, heavy duty battery attachment

1шт.

48

397940R93

SWITCH

ether push button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 znp p/hds mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

49

405227R1

CABLE

ether, Serial Range: solenoid-ground

1шт.

50

NSS

NOT SOLD SEPARAT

SOLENOID ASSY, ether injection, refer to ether starting listing group 12

1шт.

51

66220C1

CABLE ASSY, ether switch to fuel gauge

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle & hardware, used for switch 130816C91

1шт.
