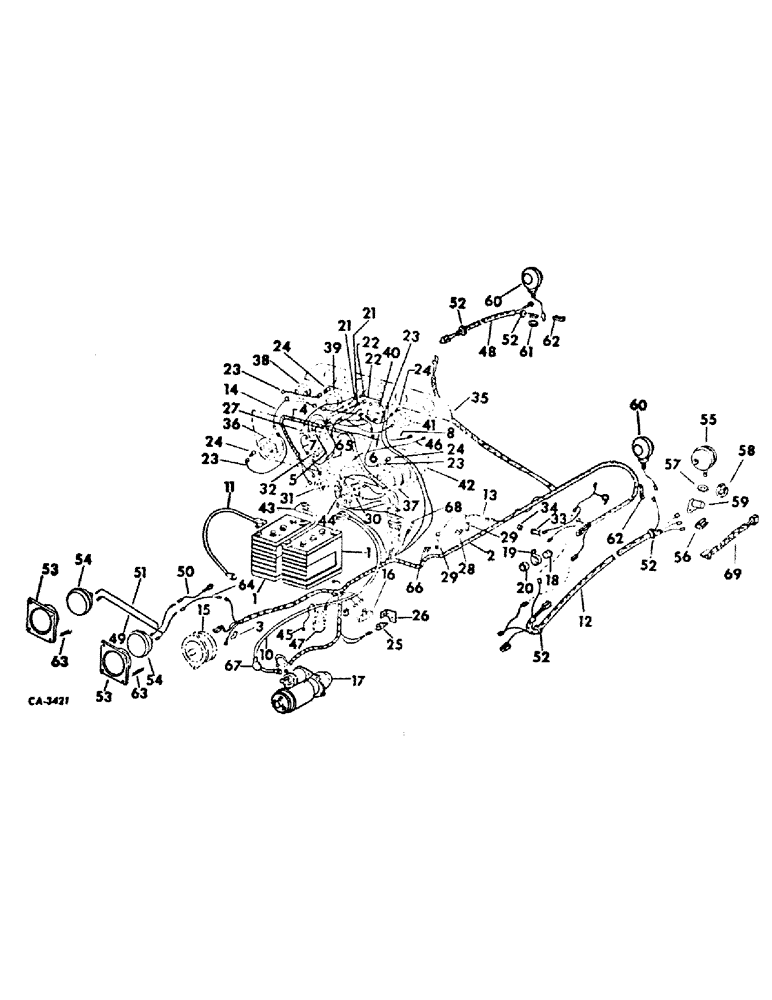

Запчасти Case IH 464 (08-10) - ELECTRICAL, STARTING AND LIGHTING, DIESEL ENGINE TRACTORS, WITH TRACTOR SERIAL NO. 109150 AND BELOW (06) - ELECTRICAL

1

537532R1

BATTERY, Prestolite 1266X, 6 volt, tractors w/heavy duty battery

2шт.

1

395599R1

BATTERY, Prestolite 3010X, 12 volt, replaces 65247C1

1шт.

2

65026C2

HARNESS

ASSY, main cable

1шт.

3

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

4

529659R2

HARNESS

ASSY, panel cable

1шт.

5

529660R1

CABLE

ASSY, junction block to charge indicator negative terminal

1шт.

6

529661R1

CABLE

ASSY, junction block to charge indicator positive terminal

1шт.

7

404530R1

CABLE

ASSY, junction, Serial Range: block-fuse

1шт.

8

404391R1

CABLE

ASSY, junction block to fuel gauge

1шт.

9

405229R1

CABLE

ASSY, parking brake ground

1шт.

10

529662R1

CABLE

ASSY, battery to solenoid switch

1шт.

11

529663R1

CABLE

ASSY, Serial Range: battery-ground

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

12

529668R2

HARNESS

CABLE ASSY, LH fender

1шт.

13

404531R1

CABLE

oil switch junction

1шт.

14

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

15

NSS

NOT SOLD SEPARAT

ALTERNATOR-GENERATOR, for components, see list of parts under details of alternator-generator

1шт.

16

534784R1

RESISTOR

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4-20 x 1/2 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

17

NSS

NOT SOLD SEPARAT

MOTOR CRANKING, Delco-Remy, for components, see list of parts under details of cranking motor

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 C-Z light lock

1шт.

18

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

19

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

20

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

21

70263C91

SOCKET

PACKAGE, parking brake and trans oil pressure assy, replaces 537804R1, consists of socket assy (NSS), instructions (NSS), terminal (NSS)

2шт.

22

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-V

2шт.

23

537803R1

SOCKET

ASSY, instrument light

3шт.

24

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12-V

3шт.

25

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replaces 382728R91

1шт.

26

533859R1

BRACKET

neutral safety switch

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

28

376855R92

SWITCH

ASSY, oil pressure

1шт.

29

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

30

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and switches listing

1шт.

31

NSS

NOT SOLD SEPARAT

SWITCH ASSY, ignition key, refer to engine controls and switches listing

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING ASSY, fuse, refer to engine controls and switches listing

1шт.

33

404352R1

SWITCH

ASSY, park brake warning light, replaces 529461R91

1шт.

34

534351R1

COVER

warning light switch

1шт.

35

NSS

NOT SOLD SEPARAT

PANEL, instrument face, refer to instrument panel and gauges listing, group 11

1шт.

36

NSS

NOT SOLD SEPARAT

SPEEDOMETER, refer to instrument panel and gauges listing, group 11

1шт.

37

NSS

NOT SOLD SEPARAT

TACHOMETER, refer to instrument panel and gauges listing, group 11

1шт.

38

NSS

NOT SOLD SEPARAT

INDICATOR ASSY, heat, refer to instrument panel and gauges listing, group 11

1шт.

39

NSS

NOT SOLD SEPARAT

GAUGE ASSY, oil pressure indicator, refer to instrument panel and gauges listing, group 11

1шт.

40

NSS

NOT SOLD SEPARAT

GAUGE ASSY, charge indicator, refer to instrument panel and gauges listing, group 11

1шт.

41

NSS

NOT SOLD SEPARAT

GAUGE ASSY, fuel, refer to instrument panel and gauges listing, group 11

1шт.

42

NSS

NOT SOLD SEPARAT

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

43

370394R91

CABLE

ASSY, battery to battery, tractors w/heavy duty battery

1шт.

44

397940R93

SWITCH

ether push button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/8 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

45

405227R1

CABLE

ether, Serial Range: solenoid-ground

1шт.

46

66220C1

CABLE ASSY, ether switch to fuel gauge

1шт.

47

NSS

NOT SOLD SEPARAT

SOLENOID ASSY, ether injection, refer to ether starting listing, group 12

1шт.

48

529669R2

HARNESS

CABLE ASSY, RH fender

1шт.

49

404420R1

CABLE ASSY, headlight junction

1шт.

50

404421R1

CABLE

ASSY, headlight ground

1шт.

51

404422R1

CABLE

ASSY, ground and headlight juncion

1шт.

52

144227

SPIDER, REEL

fender cables

4шт.

53

537013R1

HOUSING

headlight

2шт.

537014R1

INSERT

headlight housing

8шт.

66327C1

WASHER

grille screen retainer

4шт.

529671R2

SCREW

10-24 x 2-1/4 C-Z ov-hd cr-rec mach

8шт.

54

535850R1

LAMP

UNIT ASSY, headlight sealed beam

2шт.

55

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination, only servicable items are bulb 455490, lamp 371461R92 and retainer 676078R1

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

56

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear and tail light

1шт.

57

365503R1

SPACER

combination rear and tail light

1шт.

58

350920R1

CLAMP

combination rear and tail light

1шт.

59

529672R1

BRACKET

ASSY, combination rear lamb

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

60

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, only servicable item is lamp 9417866, replaces 67291C92

2шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

61

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

62

376749R1

BODY

CONNECTOR, flashing warning light

2шт.

63

528533R1

SPRING

headlight

8шт.

64

405228R1

CABLE

ASSY, harness to headlight junciton

1шт.

65

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC-1, replacement for 1-1/4 in. fuse

1шт.

65

149559

FUSE, cartridge type AGA-1, replacement for 5/8 in. fuse 1 Amp, Type 1AG

1шт.

66

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

67

364910R1

BOOT

INSULATOR, terminal boot cover

1шт.

68

66219C1

CABLE ASSY, ether start switch to main harness

1шт.

69

66064C1

HARNESS

ASSY, combination light extension, used w/protective frame

1шт.
