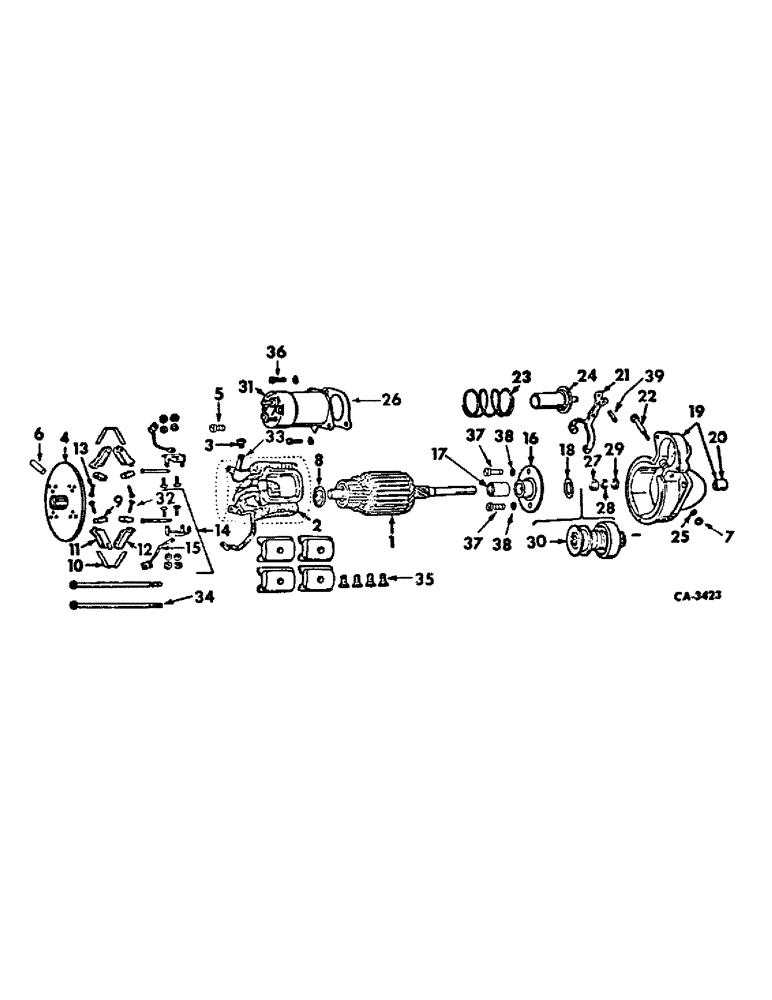

Запчасти Case IH 464 (08-05) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1107867

ELECTRIC MOTOR

MOTOR ASSY, cranking, 403300R92, 12 volt

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Part Number

1шт.

104209A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104209A1C

CORE-STARTER

Return Part Number

1шт.

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

1

1960866

ARMATURE

ARMATURE

1шт.

2

1960853

COIL

COIL, field, 4 coils

1шт.

3

1955946

GROMMET

GROMMET, in field frame

1шт.

4

1940385

FUNNEL

SCREW, field, Serial Range: lead-switch

1шт.

6

1919851

WICK

WICK COMMUTATOR END

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

NUT, , Shift lever screw 5/16"-18, G5

1шт.

8

1914842

WASHER

WASHER, commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

4шт.

11

1940477

HOLDER

HOLDER, ground brush

2шт.

12

1926618

HOLDER

HOLDER, insulated brush

2шт.

13

1959514

SCREW

SCREW, brush ground attaching

2шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1960864

BRUSH, COMMUTATOR

BRUSH LEAD, brush ground

2шт.

16

820149

PLATE

PLATE, center bearing

1шт.

17

1938596

BUSHING

BUSHING, center bearing

1шт.

18

NLS

NO LONGER SERVICED

brake, between center brg & motor drive

1шт.

19

1965429

HOUSING

HOUSING, drive

1шт.

1916439

WICK

WICK, drive end

1шт.

20

1862383

BUSHING

BUSHING, drive end

1шт.

21

1951567

LEVER

LEVER, shift

1шт.

22

1932197

SCREW

SCREW, shift lever

1шт.

23

1958679

SPRING

SPRING, plunger return

1шт.

24

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

25

1970988

WASHER

SPARE PART WASHER, shift lever stud sealing lock

2шт.

26

1952427

GASKET

GASKET, between switch and housing

1шт.

27

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1928023

WASHER

COLLAR, drive end thrust

1шт.

30

1971707

DRIVE

DRIVE, clutch motor

1шт.

31

65478C1

SWITCH

SWITCH, solenoid, optional w/1114356

1шт.

31

1114356

SOLENOID,Starter

SWITCH, solenoid, optional w/65478C1

1шт.

32

274875

SHAFT

SPARE PART SCREW, brush ground attaching

2шт.

33

1964954

SPARE PART CONNECTOR, switch

1шт.

34

1960908

BOLT (SPREADER)

BOLT, thru

2шт.

35

1913960

SCREW

SCREW, pole shoe

8шт.

36

132255

SPARE PART SCREW, switch mounting Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

37

1914580

SCREW

SCREW, center bearing attaching

2шт.

38

1962276

WASHER

WASHER, center bearing attaching lock

2шт.

39

455106

PIN

PIN, shift lever attaching

1шт.
