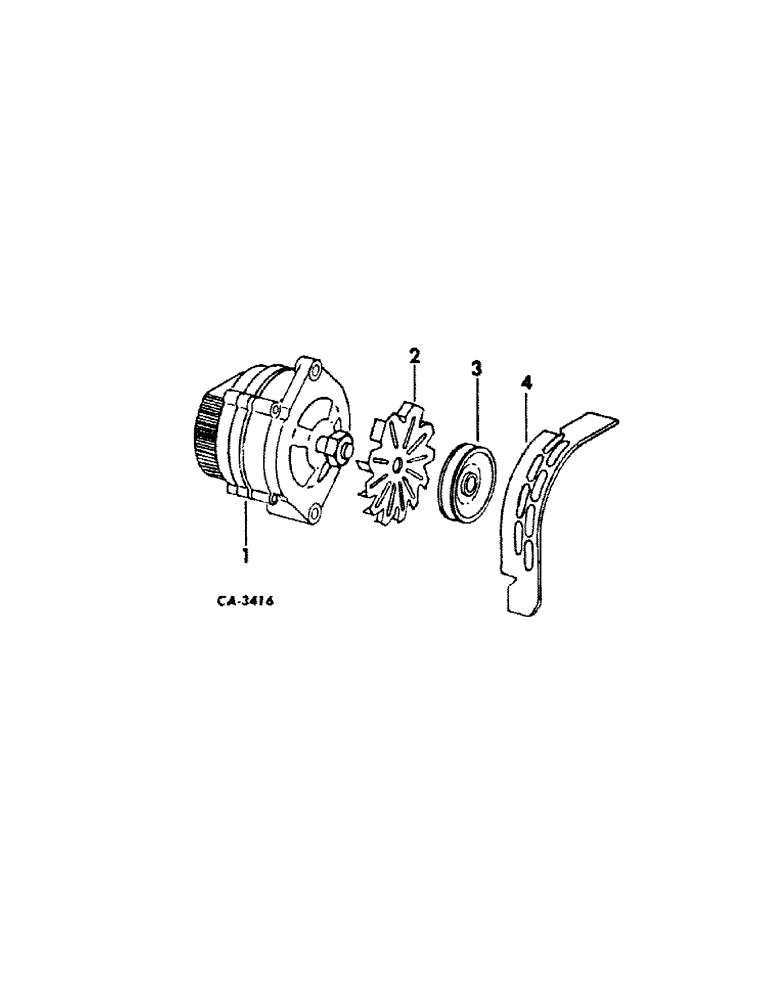

Запчасти Case IH 464 (08-01) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, Delco Remy, 130967C91, on orders for 1100583 or 1100593, order 1102920, for components, see list of parts under details of alternator-generator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

2

221425R1

FAN

FAN, alternator-generator

1шт.

3

1949358

PULLEY

PULLEY, alternator-generator, 606939C1

1шт.

4

71196C92

PACKAGE

PACKAGE, alternator fan & pulley, consists of shield (NSS), instructions (NSS)

1шт.

537326R1

BOLT

SCREW

1шт.

557265R1

WASHER

WASHER

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT

1шт.

186228

SCREW

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT

1шт.
