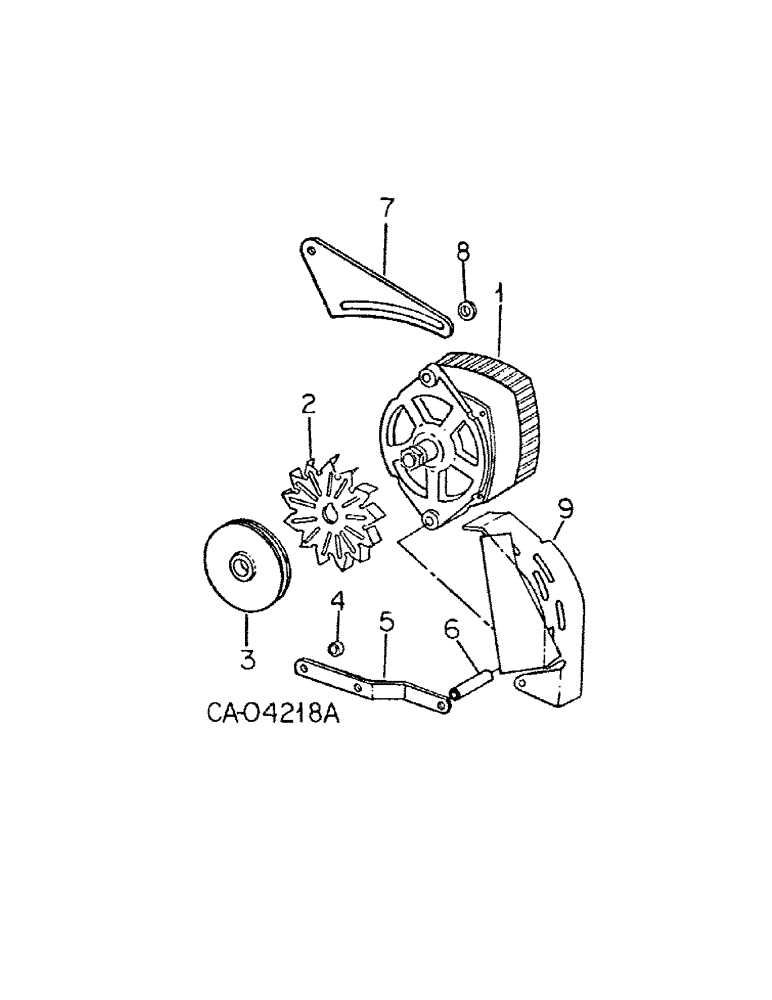

Запчасти Case IH 464 (08-01[1]) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1

1102920

GENERATOR

ALTERNATOR-GENERATOR, Delco Remy, 130973C91, on orders for 1100578 or 1100593, order 1102920, for components, see list of parts under details of alternator-generator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

21404R1

SCREW,Hex, 5/16"-18 x 4 1/2", G8

SCREW, 5/16-18 x 4-1/2 hex-hd cap

1шт.

9413977

NUT

NUT, 5/16-18 PHC hex lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

2

221425R1

FAN

FAN, alternator-generator

1шт.

3

1946716

PULLEY

PULLEY, alternator-generator, Delco Remy, 378349R1

1шт.

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

5

66467C1

HOLDER

BRACKET, alternator mounting

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

66465C1

BUSHING

BUSHING, alternator bracket

1шт.

7

66466C1

STAY

BRACE, alternator-generator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

8

397384R1

SCRAPER RING

SPACER, alternator bracket

1шт.

9

114652C1

SHIELD

SHIELD, alt. fan & pulley, replaces 534313R2

1шт.
