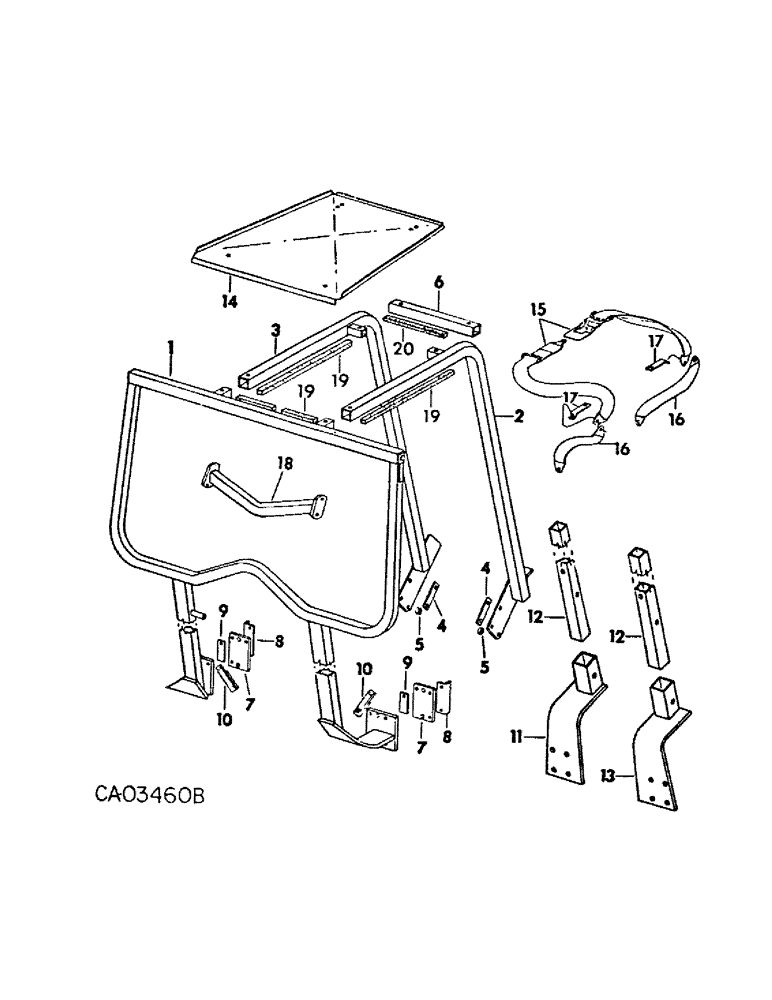

Запчасти Case IH 464 (13-09) - SUPERSTRUCTURE, PROTECTIVE FRAME AND SEAT BELT (05) - SUPERSTRUCTURE

NSS

NOT SOLD SEPARAT

Attachment protective frame, 537296R92, note, tractors with 2050A loader and tractors with 1550 or 1850 loader also order completing package 69409C91, consists of all parts w/hardware marked unit A, light harness 66064C1 and product graphics

1шт.

70885C91

Parts accessory 3-inch seat belt, consists of all parts w/hardware marked unit B

1шт.

NSS

NOT SOLD SEPARAT

Attachment, protective frame canopy, 66917C91, consists of all parts w/hardware marked unit C, when canopy is ordered tractor must also be equipped with exhaust extension and clamp

1шт.

NSS

NOT SOLD SEPARAT

Completing package, protective frame, 68409C91, tractors with 1550 or 1850 loader, consists of all parts w/hardware marked unit D

1шт.

71233

PARTS ACCESSORY, 2-inch seat belt, consists of all parts marked unit E

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, rear, units A, not serviced separately, order frame attachment

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

5/8-11 x 8.8 hex-hd type 8

8шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

2шт.

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

3/4 x 9 type 8

4шт.

22049R1

NUT,3/4"-10, G8

3/4 type 8

4шт.

2

NSS

NOT SOLD SEPARAT

LEG ASSY, RH front, units A, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 type 8

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

NSS

NOT SOLD SEPARAT

LEG ASSY, LH front, units A, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 type 8

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

4

537308R1

PLATE

spacer, units A

2шт.

5

537309R1

SPACER

units A

2шт.

6

528274R2

BAR, front cross, units A

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

4шт.

7

66058C2

PLATE, backing, units A

2шт.

8

66062C1

PLATE

mounting, units A

2шт.

9

66063C1

DECAL

SHIM, units A

4шт.

10

NSS

NOT SOLD SEPARAT

PLATE ASSY, mounting, units A, not serviced separately, order frame attachment

2шт.

11

NSS

NOT SOLD SEPARAT

BRACKET ASSY, LH mounting, unit D, not serviced separately, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

NSS

NOT SOLD SEPARAT

TUBE, connector, unit D, not serviced separately, order completing package

2шт.

13

NSS

NOT SOLD SEPARAT

BRACKET assy, RH mounting, unit D, not serviced separately, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

66797C1

TOP

CANOPY, unit C

1шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

2шт.

21759R1

WASHER

.656 x 2.000 x .105

4шт.

21793R1

WASHER

.656 x 1.250 x .164

4шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

4шт.

15

537339R1

SAFETY BELT

SAFETY BELT, 2", Units A

1шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

15

702248C3

BELT

SAFETY BELT, 3", Unit B

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

15

71236C1

SAFETY BELT

SAFETY BELT, Unit E

1шт.

16

539258R1

SAFETY BELT

SAFETY BELT, Retainer, Units A

2шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-NF type 8

2шт.

17

539259R1

CLIP

seat belt anchor, units A

2шт.

18

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

19

118225C1

STRIP

canopy

3шт.

20

118226C1

STRIP

canopy

1шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and ROPS caution instruction

1шт.

65982C1

DECAL

PRODUCT GRAPHIC, ROPS caution instruction, keep hands clear

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution instructions

1шт.
