Запчасти Case IH 464 (13-05) - SUPERSTRUCTURE, STEERING SUPPORT (05) - SUPERSTRUCTURE

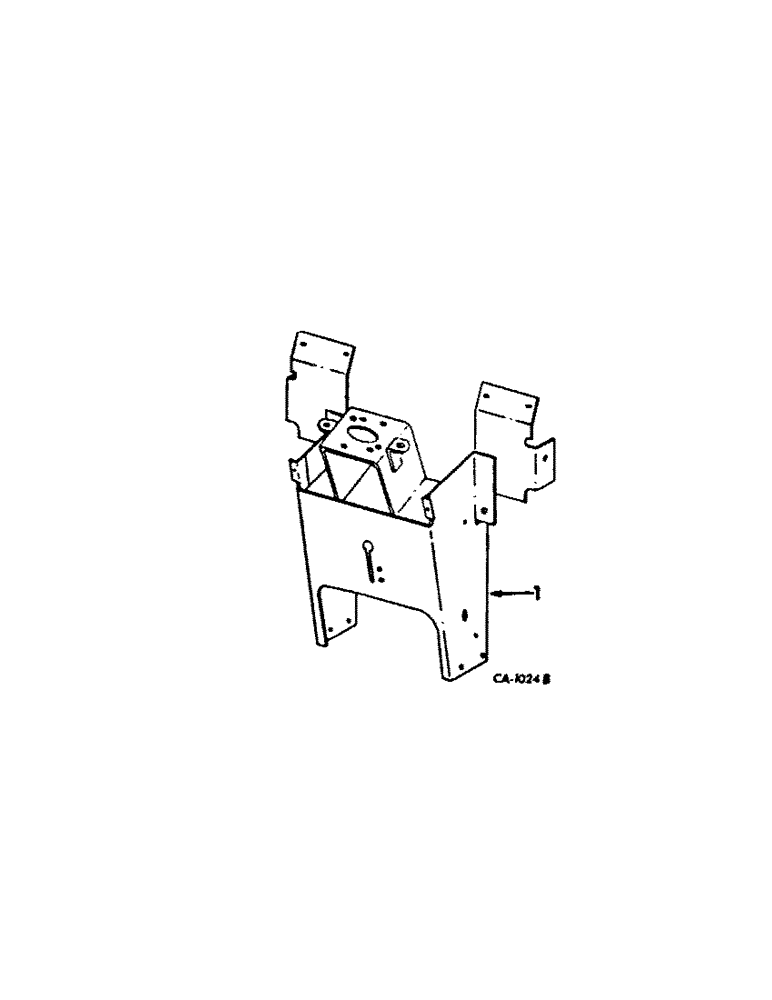

Схема запчастей Case IH 464 - (13-05) - SUPERSTRUCTURE, STEERING SUPPORT (05) - SUPERSTRUCTURE
1

Артикул

Название

Примечание

Количество

1

402163R4

SUPPORT W/2 NUTS 786618C1, steering, diesel engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

786618C1

NUT

5/16-18 floating cage

2шт.

1

65039C3

SUPPORT W/2 NUTS 786618C1, steering, carbureted engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

786618C1

NUT

5/16-18 floating cage

2шт.

65041C1

GROMMET

vibration isolator

4шт.

65042C1

BOLT,Hex, 5/16" - 18 x 0.88", Gr 5

hand pump mounting

4шт.

2

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

Выбрано товаров: 13
