Запчасти Case IH 464 (13-05[1]) - SUPERSTRUCTURE, UPHOLSTERED SEAT (05) - SUPERSTRUCTURE

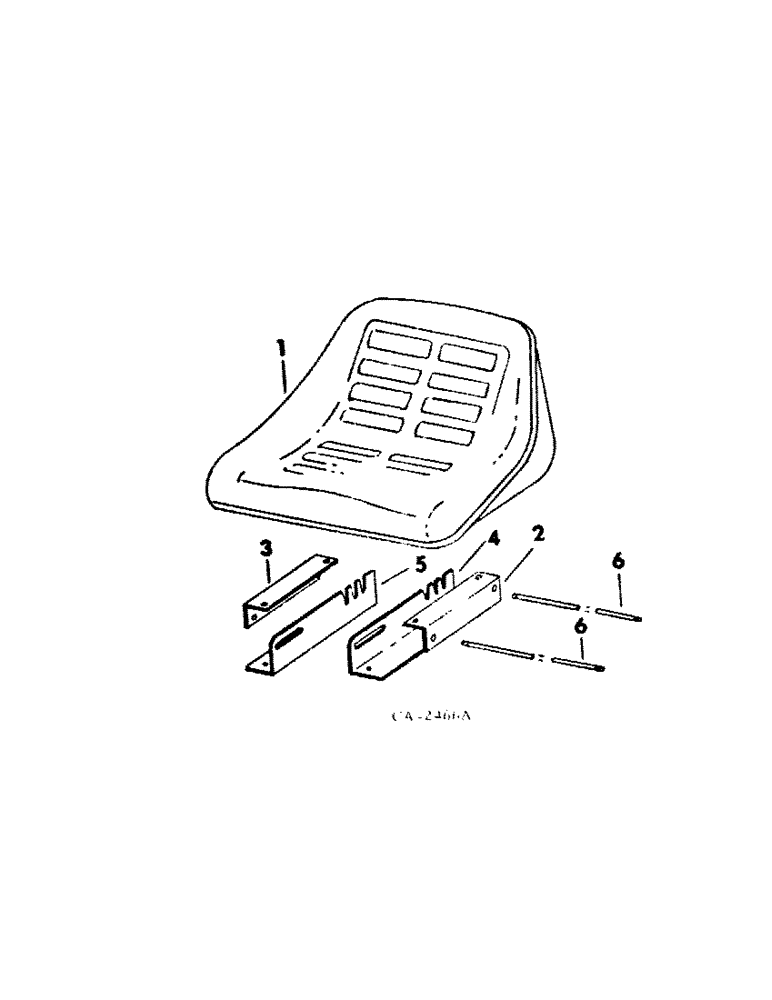

Схема запчастей Case IH 464 - (13-05[1]) - SUPERSTRUCTURE, UPHOLSTERED SEAT (05) - SUPERSTRUCTURE
2
6
3
1
4
5
6

Артикул

Название

Примечание

Количество

1

528844R1

SEAT

ASSY

1шт.

2

537990R2

ANGLE, seat support rail LH

1шт.

3

537991R1

ANGLE, seat support rail RH

1шт.

4

537608R2

SUPPORT, seat angle LH

1шт.

5

537609R2

SUPPORT, seat angle RH

1шт.

6

26134R1

ROD, seat mtg

2шт.

648002

KNIFE

1/8" x 3/4", seat

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap, seat

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Seat 5/16"

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap, seat

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z, seat

2шт.

Выбрано товаров: 11
