Запчасти Case IH 464 (13-04) - SUPERSTRUCTURE, FENDER AND OPERATORS PLATFORM, DIESEL ENGINE TRACTORS (05) - SUPERSTRUCTURE

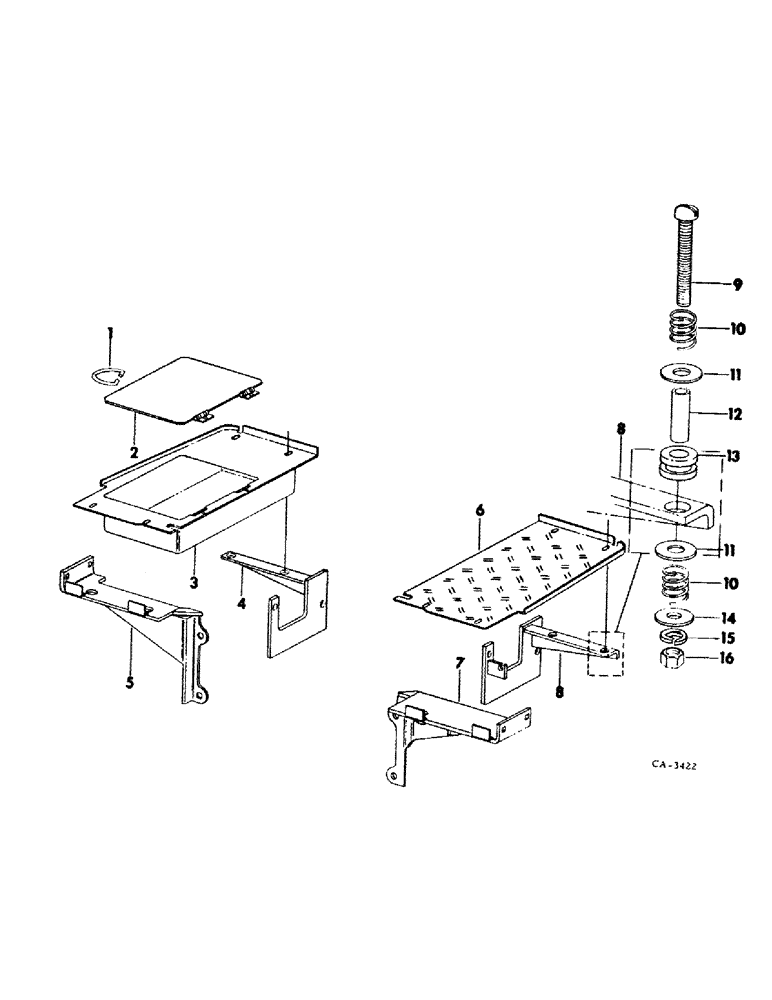

Схема запчастей Case IH 464 - (13-04) - SUPERSTRUCTURE, FENDER AND OPERATORS PLATFORM, DIESEL ENGINE TRACTORS (05) - SUPERSTRUCTURE
15
10
5
11
7
14
8
8
3
10
16
11
12
13
1
6
4
2
9

Артикул

Название

Примечание

Количество

1

528917R1

RING

finger pull

1шт.

2

538421R1

COVER ASSY

tool box

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-pan-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

68012C1

PLATFORM ASSY, LH

1шт.

4

67712C1

SUPPORT ASSY, platform LH

1шт.

18508

BOLT, 3/8-16 x 3/4 znd short sq-nk crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

5

68016C1

SUPPORT ASSY, LH platform rear

1шт.

179887

CABLE

SCREW, 1/2-13 x 1-3/4 hex-hd cap

2шт.

25673R1

WASHER,17/32" x 1 1/16" x .095", HDN

.531 x 1.062 x .095 pln hdn

2шт.

6

68014C1

PLATFORM ASSY, RH

1шт.

7

68017C1

SUPPORT ASSY, RH platform rear

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd cap

2шт.

25673R1

WASHER,17/32" x 1 1/16" x .095", HDN

.531 x 1.062 x .095 pln hdn

2шт.

8

67713C1

SUPPORT ASSY, platform RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd short sq-nk crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

9

23748R1

SCREW

3/8-16 x 2-1/2 slt-pan-hd mach

8шт.

10

69756C1

SPRING

platform mounting

16шт.

11

69757C1

CUP WASHER

CUP, 9/16 x 1-1/4 x .054

16шт.

12

69755C1

SPACER

platform support

8шт.

13

67728C1

GROMMET

platform mounting

8шт.

14

SL716

WASHER

13/32 x 1-1/8 x .067

8шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

120377

NUT,3/8" - 16, Gr 5

4шт.

Выбрано товаров: 39
