Запчасти Case IH 464 (13-03) - SUPERSTRUCTURE, REAR FENDERS (05) - SUPERSTRUCTURE

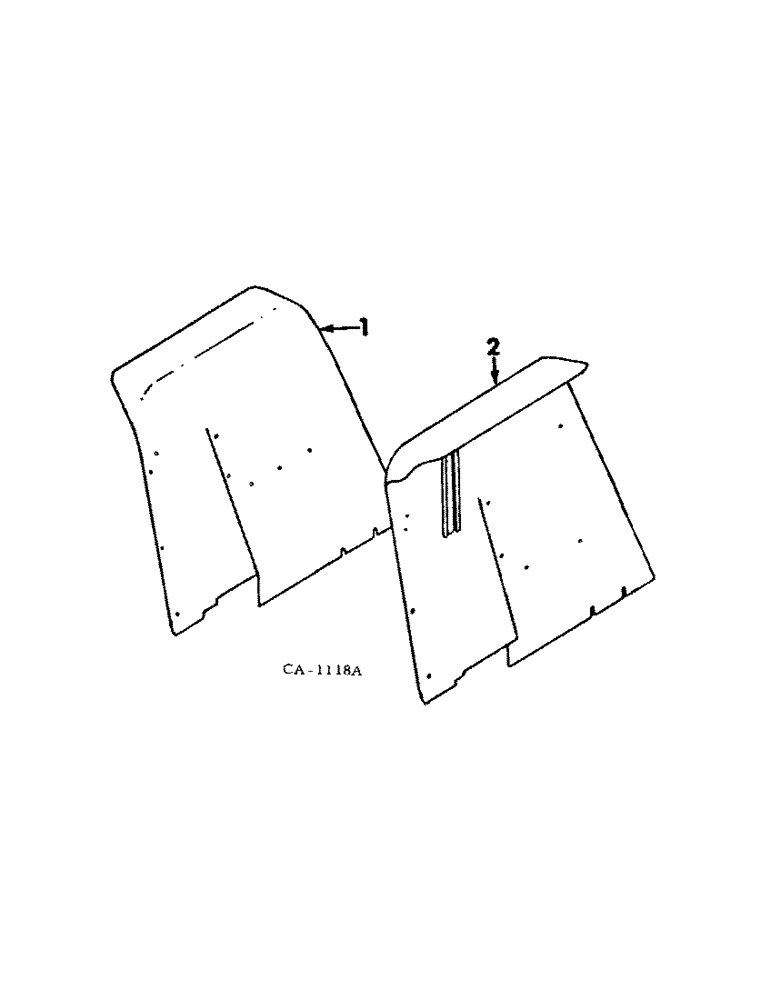

Схема запчастей Case IH 464 - (13-03) - SUPERSTRUCTURE, REAR FENDERS (05) - SUPERSTRUCTURE
1
2

Артикул

Название

Примечание

Количество

1

539460R1

FENDER

W/PRODUCT GRAPHIC, LH

1шт.

2

539434R2

FENDER ASSY, RH

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

1шт.

120376

NUT,5/16"-18, G5

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

539435R1

CLIP

fender retaining

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 sq-nk crg

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

Выбрано товаров: 16
