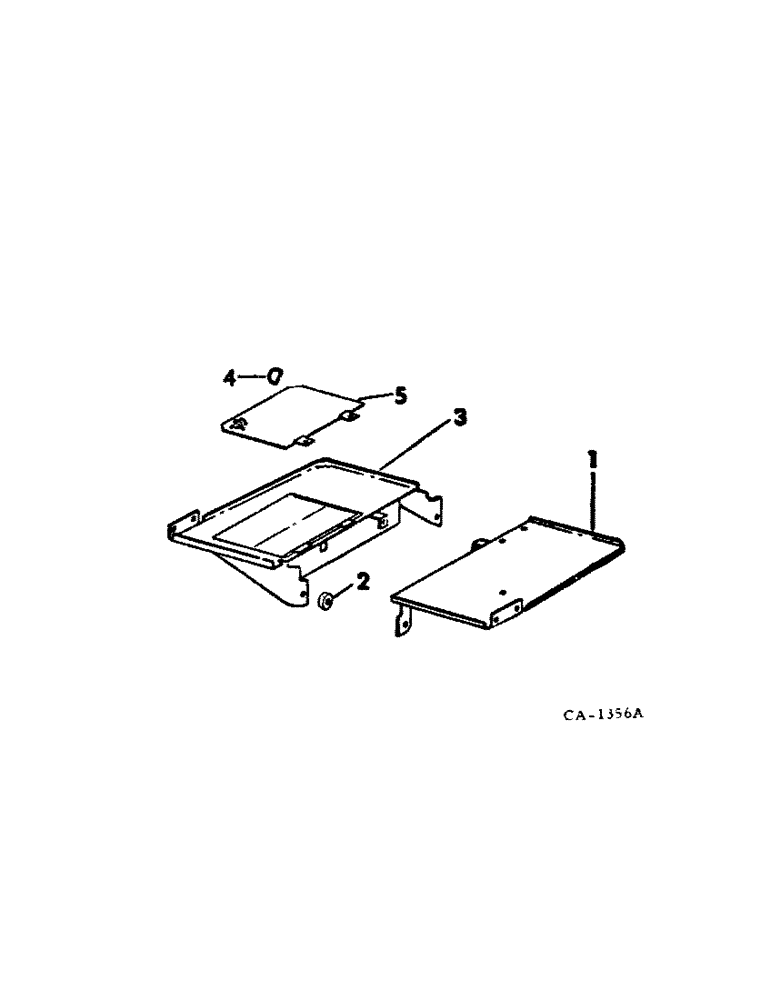

Запчасти Case IH 464 (13-03[1]) - SUPERSTRUCTURE, FENDER AND OPERATORS PLATFORM, CARBURETED ENGINE TRACTORS (05) - SUPERSTRUCTURE

1

539518R2

PLATFORM ASSY, RH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Platform Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Platform 1/2"

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap, platform

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Platform 3/8"

3шт.

2

528909R1

SPACER

LH platform

1шт.

3

528865R2

PLATFORM ASSY, LH

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd cap, platform

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Platform Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Platform 1/2"

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap, platform

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Platform 3/8"

3шт.

4

528917R1

RING

finger pull, platform

1шт.

5

538421R1

COVER ASSY

tool box, platform

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Platform 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Platform 1/4"-20, G5

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-pan-hd mach, platform

2шт.
