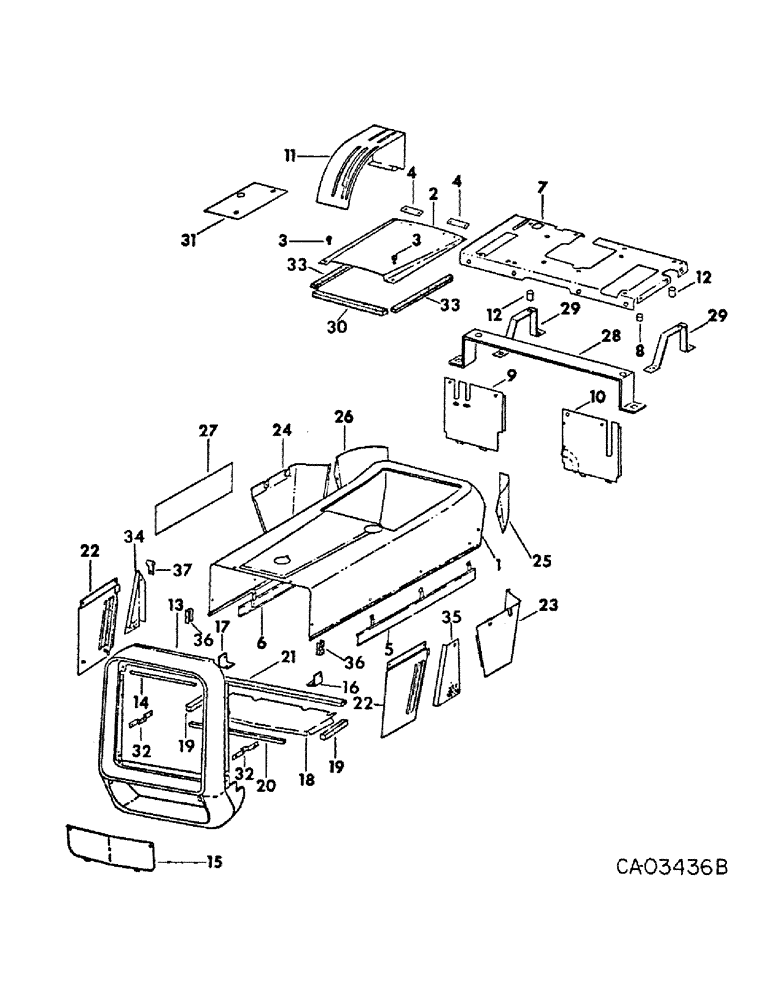

Запчасти Case IH 464 (13-01) - SUPERSTRUCTURE, HOOD AND PANELS (05) - SUPERSTRUCTURE

1

69902C1

HOOD W/TWO UNITS, 363885R91, replaces 401953R1, tractors w/ vertical exhaust

1шт.

1

69934C1

HOOD W/TWO NUTS, 363885R91, replaces 401922R1, tractors w/ underslung exhaust

1шт.

534458R1

NUT

10-24 hex

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z hex-washer-hd cap

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga.

6шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating

2шт.

2

401933R11

COVER

w/2 screw 389872R1 and 2 washer 3776787R1, rear hood, optional w/cover 3113425R1

1шт.

147791

SCREW,Cross Rec Fil Hd, #10 - 24 x 5/8"

10-24 x 5/8 cr-rec-f-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

110633

NUT,#10-24

4шт.

2

3113425R1

COVER

rear hood, optional w/cover 401933R11

1шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

376787R1

WASHER

x

2шт.

4

406698R1

STRIP

rear hood cover retainer, used w/rear hood cover, 401933R11

2шт.

5

529568R2

PANEL

ASSY, lower hood LH

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

529569R2

PANEL ASSY, lower hood RH

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

160578

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"

1/4 x 1-1/2 znp P/HDCR mach, carbureted engine tractors

1шт.

7

401937R5

COVER ASSY, rear top

1шт.

127829

ELBOW

NUT, 3/8-16 znd hex jam

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120368

NUT,5/16"-24, G5

5шт.

8

401941R1

SPACER

mounting, short

2шт.

9

527856R3

COVER ASSY, rear vertical RH

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

2шт.

10

401942R2

COVER ASSY, rear vertical LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

2шт.

11

400088R3

COVER ASSY, hitch control lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

401940R2

SPACER, mounting

2шт.

13

402400R3

HOUSING

w/nuts 363885R91, radiator grille

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

4шт.

14

530854R1

MOLDING

MOULDING, air baffle edge

1шт.

15

402406R1

PANEL

ASSY, lower radiator grille

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z cr-rec-truss hd mach

2шт.

16

406696R1

BRACKET

grille housing angle LH

1шт.

17

406697R1

BRACKET

grille housing angle RH

1шт.

180144

RETAINER

7/16-14 x 7/8 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

18

402410R1

BAFFLE

. radiator lower

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET, radiator baffle lower, furnish 6 in. foam from a 4 ft. roll marked 73218C1

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET, radiator baffle, furnish 16.8 in. of foam from a 4 ft. roll marked 73221C1

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET, radiator baffle, furnish 18 in. of foam from a 4 ft. roll marked 73223C1

1шт.

22

402411R2

PANEL ASSY, grille side LH

1шт.

22

402412R2

PANEL

ASSY, grille side RH

1шт.

172439

SPACER

1/4-28 x 1/2 C-Z slt-hes-hd tap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

2шт.

23

402418R2

PANEL

lower side rear LH

1шт.

544363R1

SCREW

1/4-20 x 7/16 C-Z hex-washer hd cap

3шт.

24

402419R2

PANEL

lower side rear RH

1шт.

544363R1

SCREW

1/4-20 x 7/16 C-Z hex-washer hd cap

3шт.

25

402423R1

PANEL

LH

1шт.

26

402424R1

PANEL

RH

1шт.

27

65125C1

SHIELD

heat, diesel engine tractors w/vertical exhaust

1шт.

534458R1

NUT

10-24 hex lock

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

28

67262C2

BRACKET

top cover front

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

67263C1

BRACKET

top cover rear

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

30

NSS

NOT SOLD SEPARAT

SEAL, rear hood cover, furnish 10.88 in. of foam from a 4 ft. roll marked 73211C1, used w/rear hood cover 3113425R1

1шт.

31

67782C1

PLATE

hitch control lever cover, tractors w/out draft control and/or independent PTO

1шт.

32

402199R1

SUPPORT

radiator and grille housing

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL, side hood cover, furnish 17 in. of foam from a 4 ft. roll marked 73211C1, used w/rear hood cover 3113425R1

1шт.

34

114671C1

SHIELD ASSY, safety RH, carbureted engine tractors

1шт.

34

114676C1

SHIELD ASSY, safety RH, diesel engine tractors

1шт.

684548C1

NUT

spring

1шт.

35

1144674C1

SHIELD ASSY, safety LH

1шт.

684548C1

NUT

spring

1шт.

36

114685C1

CHANNEL, mounting bracket, 1 used w/carbureted engines, 2 used w/diesel engines

1шт.

37

114686C1

HINGE, mounting bracket, carbureted engine tractors

1шт.
