Запчасти Case IH 464 (07-15) - DRIVE TRAIN, TRANSMISSION CONTROLS (04) - Drive Train

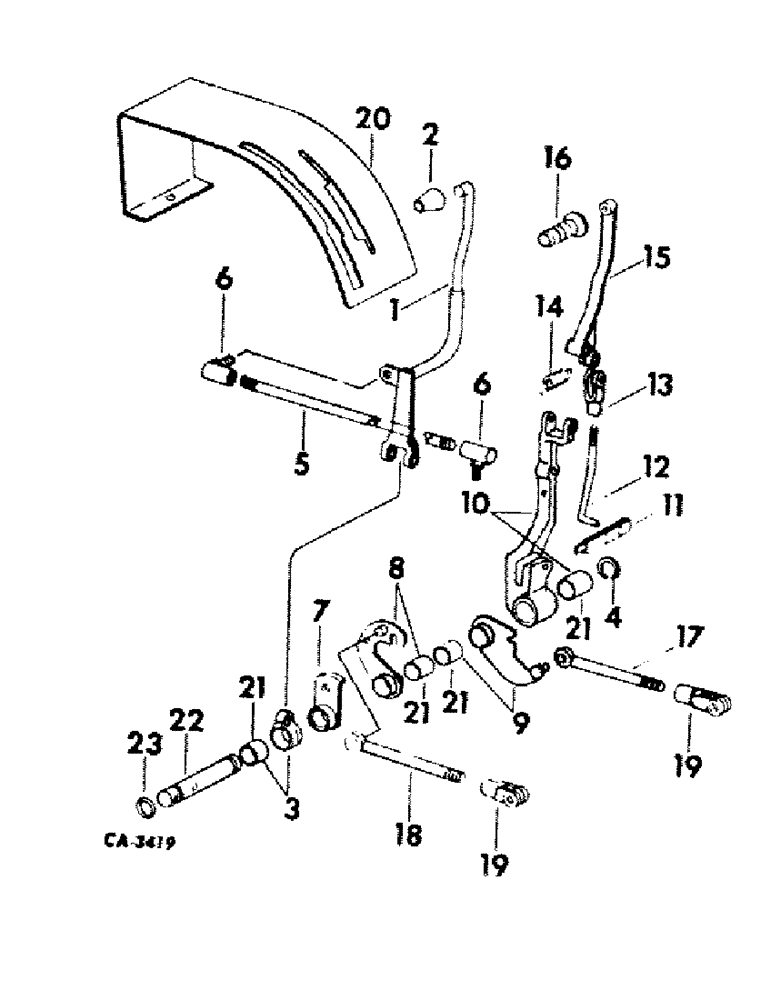

Схема запчастей Case IH 464 - (07-15) - DRIVE TRAIN, TRANSMISSION CONTROLS (04) - Drive Train
21
21
16
1
7
22
20
6
13
10
15
12
11
21
3
8
23
6
5
9
14
19
19
17
2
21
4
18

Артикул

Название

Примечание

Количество

1

528120R1

LEVER

speed shift

1шт.

2

379022R2

KNOB

speed shift lever

1шт.

3

530932R1

HUB ASSY.

HUB ASSY, transmission shift hand lever

1шт.

615192R1

WASHER

29/32 x 1-1/4 x .0299

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

4

454331R1

SNAP RING,#87, Ext

Shift lever #87, Ext

1шт.

5

528122R1

ROD

speed shift lever

1шт.

6

392594R1

END ASSY.

JOINT, 3/8-24 x 1-11/32 ball

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

3шт.

7

528123R1

PIVOT ASSY.

GATE ASSY, range shift

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1-3/4", coiled

1шт.

8

528126R2

LEVER ASSY.

LEVER ASSY, idler shaft inner

1шт.

Q3641

WASHER

13/32 x 3/4 x .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

9

528129R1

LEVER ASSY.

LEVER ASSY, idler shaft outer

1шт.

Q3641

WASHER

13/32 x 3/4 x .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

10

530933R2

LEVER ASSY.

LEVER W/TWO BUSHING, range shift

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

11

528134R1

LATCH

range shift lever

1шт.

12

528135R1

ROD

range shift lever

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

13

104037

CLEVIS

5/16-24 x 2-1/4 rod end, optional w/161002C1

1шт.

13

161002C1

NO LONGER SERVICED

CLEVIS, 5/16-24 x 2-1/4 rod end, optional w/104037

1шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 rod end

1шт.

14

528136R1

SPRING

shift lever return

1шт.

15

528137R1

LEVER

range shift upper

1шт.

16

528138R1

HANDLE

range shift upper lever

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

SCREW, 3/8-16 x 2-3/4 zn soc-hd cap

1шт.

17

528139R1

ROD ASSY.

ROD ASSY, range shift front

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528141R1

ROD ASSY.

ROD ASSY, range shift rear

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

19

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 rod end, optional w/161003C1

2шт.

19

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 rod end, optional w/116536

2шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1-7/32 rod end

2шт.

Q3641

WASHER

13/32 x 3/4 x .024

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

20

528782R92

HOUSING

ASSY, transmission shift pattern

1шт.

21

539245R1

BUSHING

shift lever and hub

5шт.

22

402152R1

SHAFT

range shift lever

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1-3/4", coiled

1шт.

23

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

1шт.

Выбрано товаров: 46
