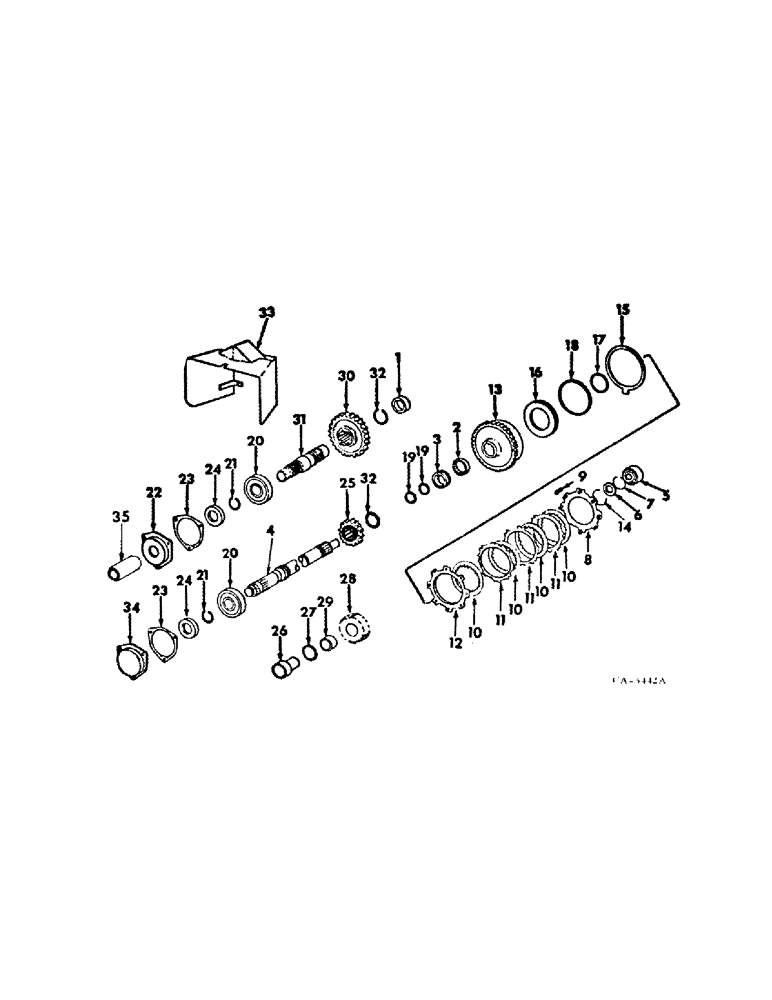

Запчасти Case IH 464 (07-09) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF (04) - Drive Train

NSS

NOT SOLD SEPARAT

ATTACHMENT, single speed independent power take-off 70922C91

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, dual speed independent power take-off

1шт.

1

112821R91

NEEDLE BEARING

upper shaft needle

1шт.

2

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, lower shaft needle

1шт.

3

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

4

66189C1

SHAFT ASSY.

SHAFT ASSY, IPTO driving

1шт.

5

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

6

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

7

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

8

66186C91

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

6шт.

9

66182C1

SPRING

piston return

6шт.

10

NSS

NOT SOLD SEPARAT

PLATE ASSY, clutch driver, not serviced separately, furnish clutch plate service package 66193C91

5шт.

11

NSS

NOT SOLD SEPARAT

PLATE, driven, not serviced separately, furnish clutch plate service package 66193C91

8шт.

12

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

front clutch piston return

1шт.

13

66068C1

GEAR

clutch cup, 44T

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

14

401720R1

CIRCLIP

RING, backing plate snap

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

401722R1

PISTON

clutch

1шт.

17

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

18

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball, for single speed IPTO ATT.

1шт.

20

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, upper IPTO output shaft ball, for dual speed IPTO ATT.

2шт.

21

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

2шт.

22

401725R2

FLANGED BEARING

IPTO shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

23

399843R3

GASKET

shaft brg retainer

2шт.

24

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil, 1 used w/single speed, 2 used w/dual speed

1шт.

25

404232R1

GEAR

lower shaft drive, 21T

1шт.

26

401726R1

SHAFT

IPTO idler

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401727R1

PINION

GEAR, idler, 24T

1шт.

29

570450R91

NEEDLE BEARING

idler shaft needle

1шт.

30

66192C1

GEAR

555 RPM driven, 38T

1шт.

31

3113017R1

SHAFT

upper output

1шт.

32

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

2шт.

33

114691C1

KIT

SHIELD, w/product graphic 64553C1, IPTO safety, replaces 401734R1

1шт.

P/N 114691C1 IS NOT THE PART ILLUSTRATED. P/N 401734R1 IS THE PART ILLUSTRATED. THERE IS NO SUB OF THESE TWO PARTS AT THE TIME OF THIS NOTE. REF CASE# 2901641. JBEDFORD 11/5/99.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

34

66191C1

FLANGED BEARING

IPTO shaft brg, single speed

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

34

401725R2

FLANGED BEARING

IPTO shaft brg, dual speed

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

35

393116R1

TUBE

IPTO shaft protection

1шт.

66193C91

PACKAGE

clutch plate service, consists of (5) disc (NSS), (8) plate (NSS), (1) o-ring 401723R1, (1) o-ring 401724R1, (6) spring 66182C1

1шт.
