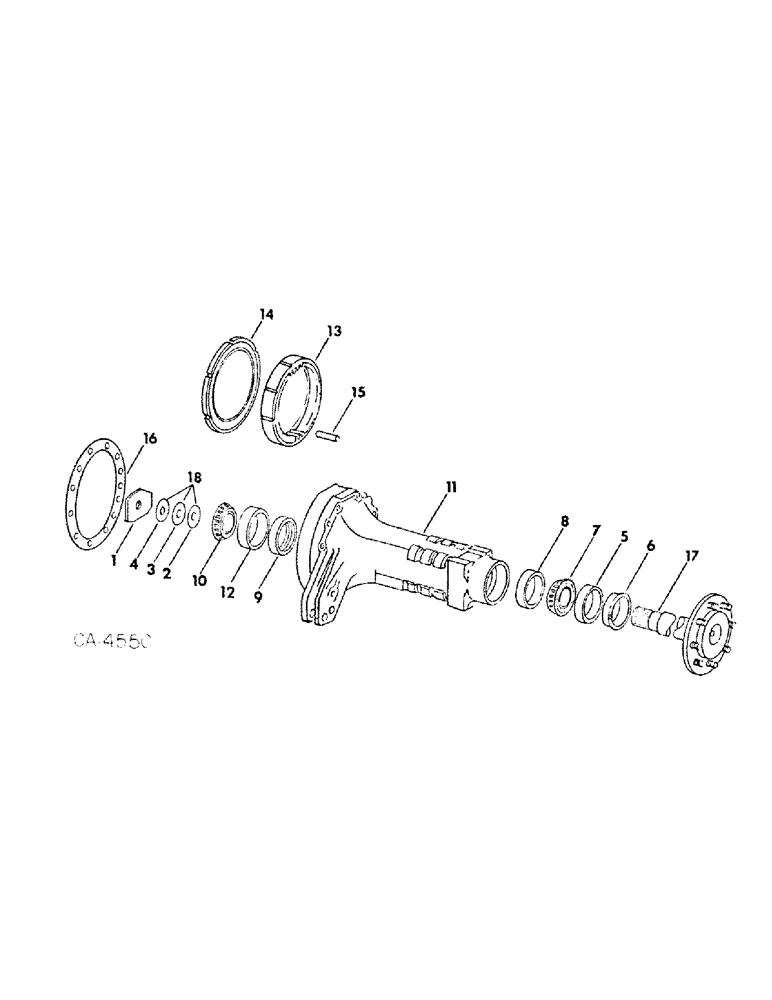

Запчасти Case IH 464 (07-08) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW, 5/8-18 x 1-1/2 hex-hd cap

2шт.

2

NSS

NOT SOLD SEPARAT

SHIM, rear axle retainer, not serviced separately, order package 65422C1

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM, rear axle retainer, not serviced separately, order package 65422C1

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM, rear axle retainer, not serviced separately, order package 65422C1

1шт.

5

105470C1

OIL SEAL

SEAL, rear axle outer oil, replaces 399752R91

2шт.

6

399754R1

SLEEVE

wear

2шт.

7

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

rear axle outer cone

2шт.

8

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

9

380200R92

OIL SEAL

rear axle inner oil

2шт.

10

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

ASSY, rear axle inner cone

2шт.

11

399758R1

AXLE CARRIER

CARRIER, rear axle LH

1шт.

11

399761R1

AXLE CARRIER

CARRIER, rear axle RH

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

SCREW, 5/8-11 x 4 hex-hd cap

22шт.

12

29214H

BEARING CUP,110mm OD x 18.82mm W

BEARING, rear axle inner cup

2шт.

13

535316R1

GEAR, RING

66T

2шт.

14

114620C1

RING,260mm OD

brake outer disc

2шт.

15

529685R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

16

399762R3

GASKET

rear axle carrier

2шт.

17

404340R13

SPARE PART

AXLE ASSY, w/bolts, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

18

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim, consists of (3) shim (NSS), (3) shim (NSS), (2) shim (NSS)

1шт.
