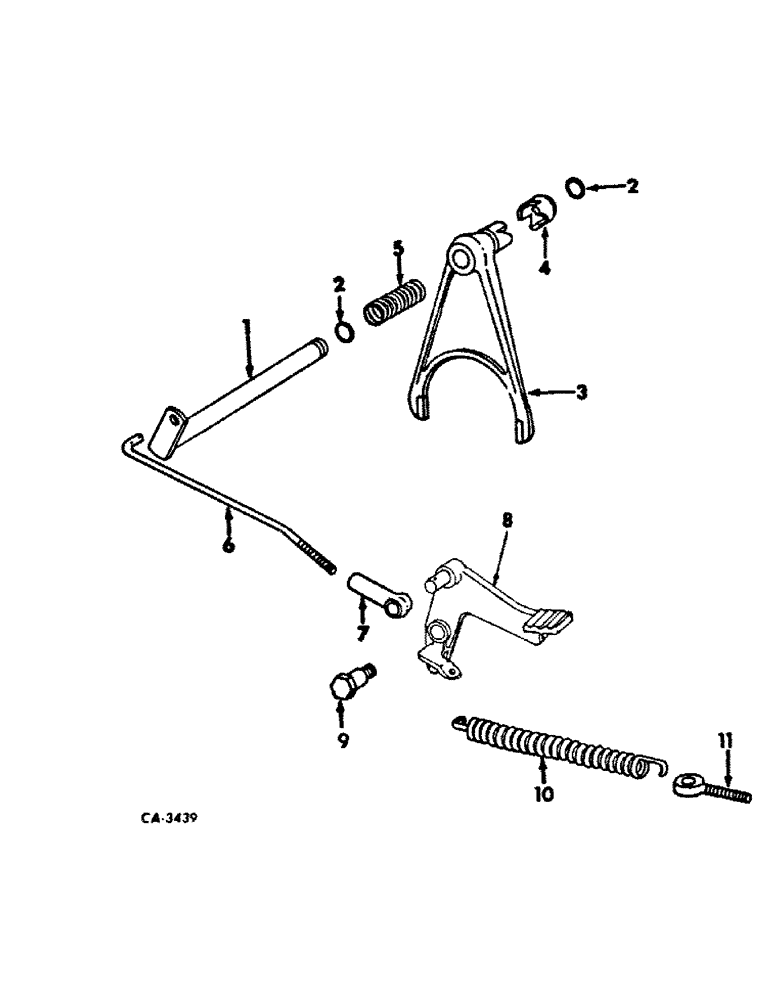

Запчасти Case IH 464 (07-07) - DRIVE TRAIN, DIFFERENTIAL LOCK (04) - Drive Train

1

527871R1

SHAFT ASSY.

SHAFT ASSY, diff lock

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

3

527874R3

FORK

ASSY, diff lock shaft

1шт.

4

527877R1

CAM

diff lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

527878R1

SPRING

diff lock fork actuating

1шт.

6

527879R1

ROD

diff lock pedal

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 x 3/4 x 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

527880R1

END

diff lock pedal connecting rod

1шт.

8

66441C1

PEDAL

LEVER ASSY, diff lock pedal front

1шт.

11002VA

WASHER

17/32 x 7/8 x 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

9

527885R1

BOLT

BOLT, diff lock pedal pivot

1шт.

10

527886R1

VALVE SPRING

SPRING, diff lock pedal return

1шт.

11

530046R1

BOLT

pedal return spring eye, carbureted engine tractors

1шт.

11

67732C1

BOLT, pedal return spring eye, diesel engine tractors

1шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.
