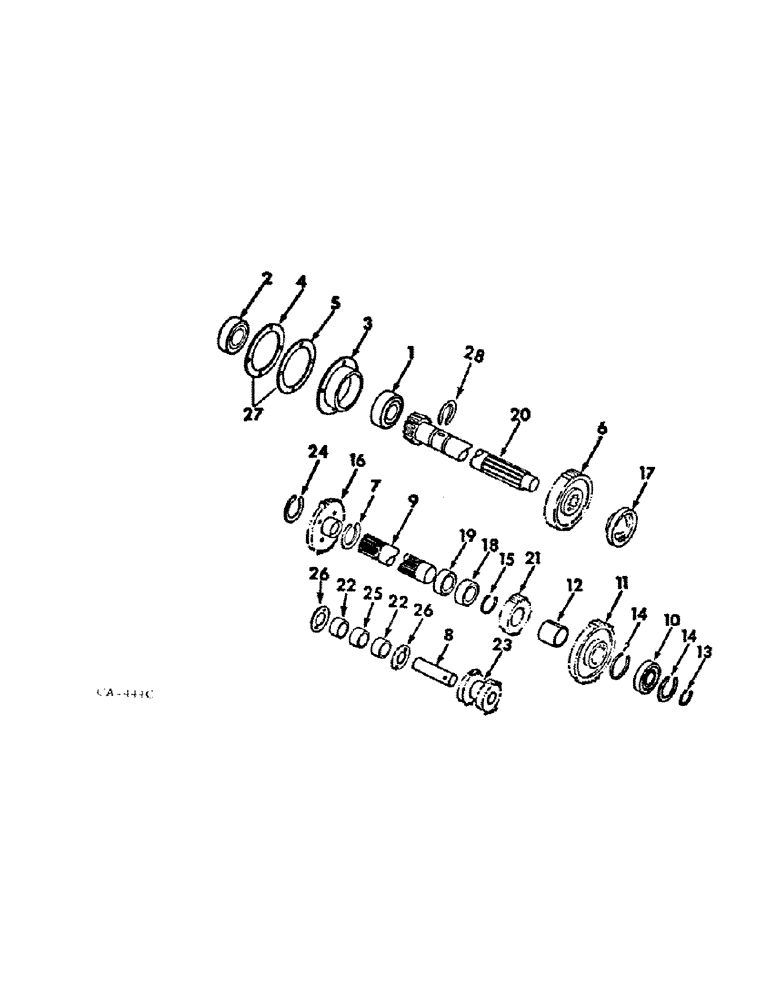

Запчасти Case IH 464 (07-05) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, main shaft front

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, main shaft front

1шт.

3

399825R1

BEARING CUP

CAGE, main shaft brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

4

NSS

NOT SOLD SEPARAT

SHIM, main shaft brg cage, not serviced separately, order ref no 27

1шт.

5

NSS

NOT SOLD SEPARAT

SHIM, main shaft brg cage, not serviced separately, order ref no 27

1шт.

6

399462R1

GEAR

hi-lo sliding, 42T

1шт.

7

399837R1

SNAP RING,#118, 1.121", Ext

RING, pump drive gear retainer snap

1шт.

8

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

9

404096R1

SHAFT

COUNTERSHAFT, range transmission

1шт.

10

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

11

404097R1

GEAR

constant mesh, 46T

1шт.

12

399835R1

BUSHING

countershaft gears

1шт.

13

327068R1

RING, SNAP

RING, countershaft brg ext ext snap

1шт.

14

399832R1

RING, SNAP

RING, countershaft brg int snap

2шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, lo range driving gear ret snap

1шт.

16

404218R1

GEAR

pump drive, 55T

1шт.

17

399830R2

COLLAR

hi-speed shift

1шт.

18

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft needle

1шт.

19

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear

1шт.

20

655255C1

SET, bevel gears matched, consists of (1) shaft (NSS), (1) gear (NSS)

1шт.

21

103150C1

PINION

GEAR, lo range driving, 24T, replaces 404099R1

1шт.

22

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle

2шт.

23

70298C1

PINION

GEAR, reverse idler, 20 and 25T

1шт.

24

533266R1

RING, SNAP

RING, IPTO front driven shaft rear snap

1шт.

25

3112845R1

SPACER

idler bearing

1шт.

26

3112846R1

THRUST WASHER

idler bearing

2шт.

27

65423C1

SHIM KIT

PACKAGE, mainshaft bearing cage shim, consists of (2) shim (NSS), (5) shim (NSS)

1шт.

28

327058R1

RING, SNAP

RING, brake drum

2шт.
