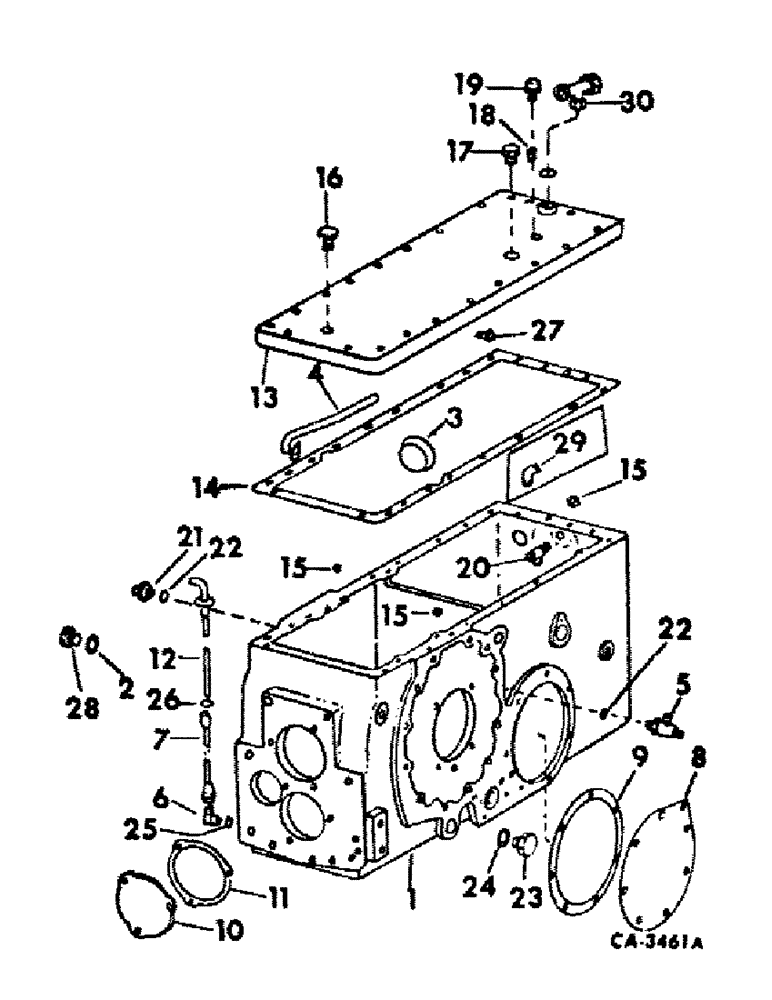

Запчасти Case IH 464 (07-04) - DRIVE TRAIN, REAR FRAME, COVER AND CONNECTIONS (04) - Drive Train

1

399848R51

FRAME

1шт.

FRAME ASSY, rear, consists of (1) frame (NSS), (2) pin 19904R1 (4) pin 19875R1, (2) plug 3113103R1, (1) pin 19846R1, (2) plug 386194R1, (1) plug 527748R1, (1) plug 512870R1, (1) plug 349373R1, (1) plug 70129R1, (1) plug 23828R1, (1) plug 330222R1, (1) plug 151162R1, (1) plug 327413R1, (1) plug 327412R1

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

527748R1

PLUG

oil reservoir

1шт.

4

68393C1

TUBE ASSY.

TUBE ASSY, oil return

1шт.

5

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 37 deg hyd flared, brake RH tube, replaces 9411128 tee and 9403369 cap

1шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg, oil level gage tube

1шт.

7

528059R1

TUBE

rear frame oil level gage

1шт.

8

405738R1

COVER

side PTO

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

9

405739R2

GASKET

side IPTO cover

1шт.

10

399842R1

COVER

rear frame IPTO

2шт.

11

399843R3

GASKET

IPTO cover

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

12

528054R2

DIPSTICK

GAGE ASSY, rear frame oil level

1шт.

13

537628R2

COVER

ASSY, rear frame

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

8шт.

NLS

NO LONGER SERVICED

6шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2 x 1-5/8 pln type 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

14

538649R92

GASKET KIT

PACKAGE, rear frame cover gasket, consists of (1) gasket (NSS), (3) seal 406734R1

1шт.

15

406734R1

SEAL

teflon

3шт.

16

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 NPTF pipe

1шт.

17

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1 x 11 x 1/2 automotive sq-soc-hd

1шт.

18

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER, 1/2-14 thd, 3/8-thd reducing pipe

1шт.

19

65970C2

BREATHER ASSY.

BREATHER ASSY, hyd unit housing

1шт.

20

NSS

NOT SOLD SEPARAT

(Not used this application)

1шт.

21

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 C-Z 37 deg hyd flared tube short swivel, brake LH tube

1шт.

22

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

3шт.

23

9410363

PLUG

1-5/16-12 str thd, o-ring boss

1шт.

24

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

26

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

1шт.

27

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed, optional w/3069777R1

2шт.

27

3068777R1

SCREW

brake bleed, optional w/82301R1

2шт.

28

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

29

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

ELBOW, 3/4-16 C-Z 37 deg hyd flared

1шт.

30

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
