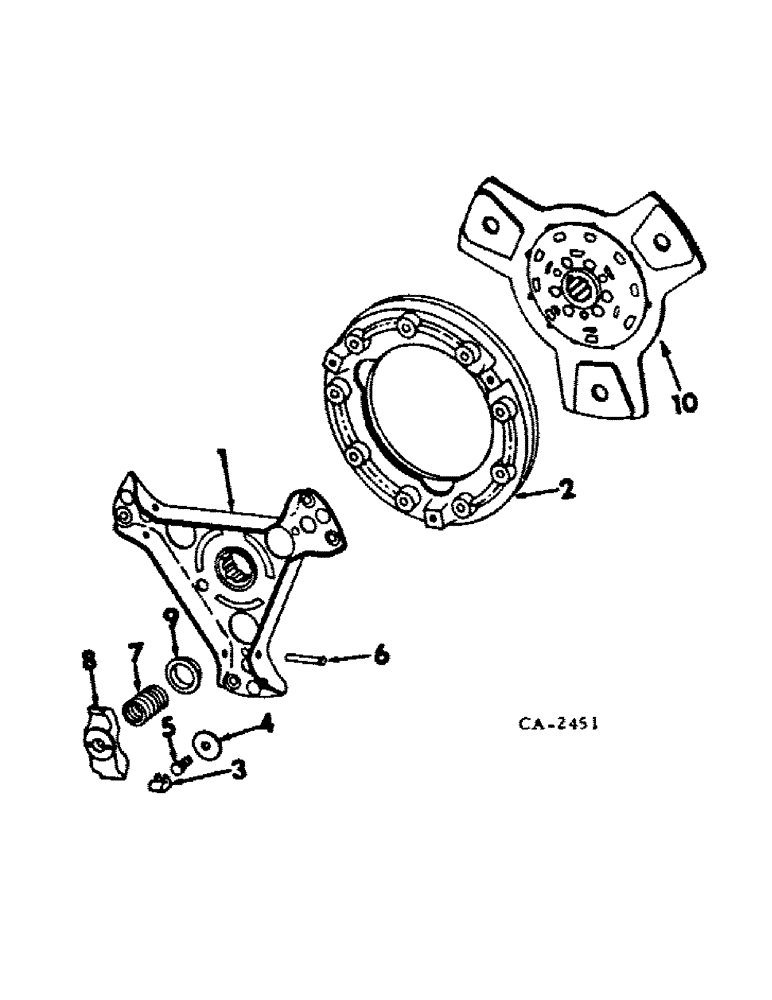

Запчасти Case IH 464 (07-03) - DRIVE TRAIN, CLUTCH (04) - Drive Train

70716C1

COVER ASSY

COVER ASSY, clutch pressure plate, replaces 68211C91, consists of ref nos 1 thru 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 3/4 hex-hd cap

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

NSS

NOT SOLD SEPARAT

BRACKET, pressure plate

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, pressure

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP, return

3шт.

4

NSS

NOT SOLD SEPARAT

WASHER

3шт.

5

NSS

NOT SOLD SEPARAT

SCREW, adjusting

3шт.

6

NSS

NOT SOLD SEPARAT

PIN, pivot

3шт.

7

NSS

NOT SOLD SEPARAT

SPRING, pressure

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER

3шт.

9

NSS

NOT SOLD SEPARAT

CUP, spring

3шт.

10

401479R93

DRIVEN PLATE

PLATE ASSY, clutch driven disc

1шт.

10

401479R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 3 paddle

1шт.

10

401479R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

10

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, CLUTCH PLATE, 11 in, 10 Tooth Hub

1шт.

10

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

10

293248A1R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.
