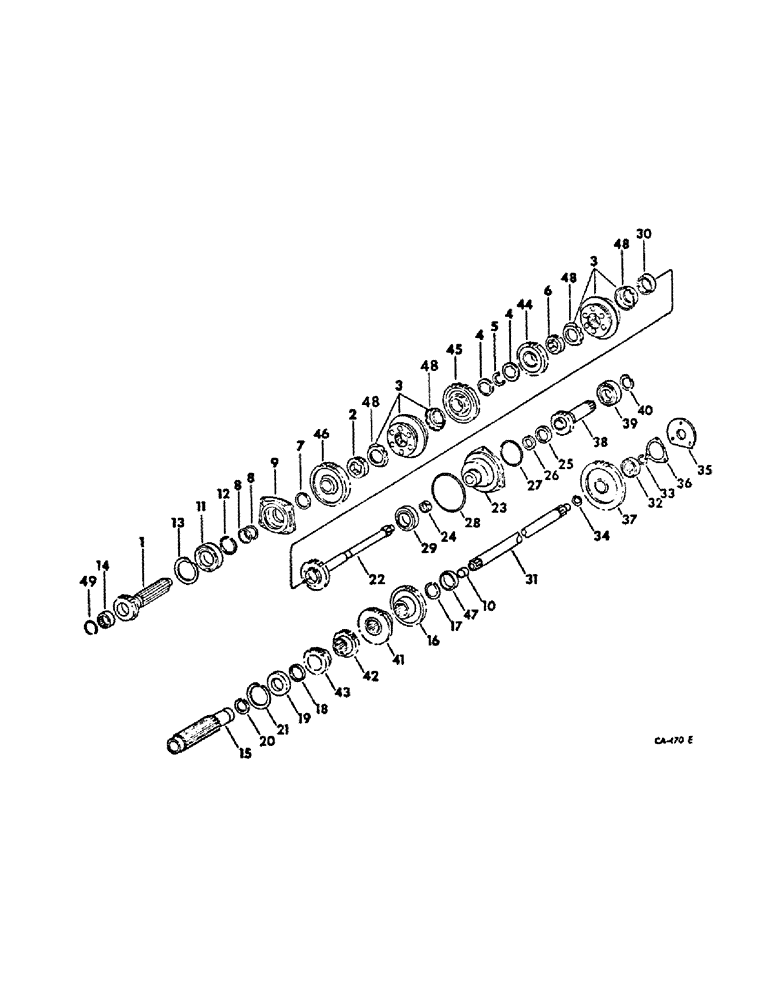

Запчасти Case IH 464 (07-02) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

65258C1

SHAFT

main

1шт.

2

398325R1

HUB

1st and 2nd speed shift

1шт.

3

65793C1

SYNCHRONIZER

ASSY

2шт.

4

398328R2

THRUST WASHER

WASHER, main shaft thrust

2шт.

5

398329R1

CIRCLIP

RING, synchronizer locating snap

1шт.

6

398325R1

HUB

3rd and 4th speed shift

1шт.

7

398332R1

WASHER

ring

1шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

mainshaft lub line seal

2шт.

9

534411R1

BEARING ASSY

CAGE, main shaft bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

10

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

11

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, main shaft ball

1шт.

12

327068R1

RING, SNAP

RING, main shaft brg retainer outer snap

1шт.

13

398334R1

SNAP RING

RING, main shaft brg retainer inner snap

1шт.

14

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

main shaft needle

1шт.

15

404089R1

SHAFT

COUNTERSHAFT, speed transmission

1шт.

16

404090R1

PINION

GEAR, constant mesh driven 39T

1шт.

17

398264R1

SNAP RING,#215, 2.026", Ext

RING, constant mesh driven gear retaining snap

1шт.

18

398268R1

BUSHING

ring spacer

1шт.

19

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, countershaft ball

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

RING, countershaft brg outer snap

1шт.

21

574964R1

RING, SNAP

RING, countershaft brg inner snap

1шт.

22

398320R3

SHAFT

clutch

1шт.

23

398318R21

BEARING ASSY,1.184" ID

ASSY, IPTO & clutch shaft brg, includes ref. no. 24

1шт.

24

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

25

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO drive shaft oil (Replaces 37690R91)

1шт.

26

105758C1

OIL SEAL

clutch shaft oil, optional w/114578C1

1шт.

26

114578C1

SEAL

clutch shaft oil, optional w/105758C1

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3/3-4 x 4 x 1/8

1шт.

28

343942R1

O-RING,5.359" ID x 0.139" Width

5-3/8 x 5-5/8 x 1/8 brg cage

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, clutch shaft ball

1шт.

30

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, clutch shaft needle

1шт.

31

536748R1

SHAFT ASSY.

SHAFT ASSY, IPTO driven

1шт.

32

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, IPTO driven shaft front ball

1шт.

33

555601R1

RING, SNAP

RING, IPTO driven shaft front brg retainer snap

1шт.

34

399837R1

SNAP RING,#118, 1.121", Ext

RING, IPTO driven gear retainer snap

1шт.

35

398259R1

LARGE PLATE

RETAINER, IPTO driven shaft front brg cap

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

36

398260R2

GASKET

IPTO driven shaft front brg retainer

1шт.

37

404214R1

GEAR

IPTO driven, 46T

1шт.

38

71230C1

SHAFT HOUSING

SHAFT, IPTO drive, on orders for shaft 398235R1, furnish shaft 71230C1, carrier 71229C1 and oil seal 108982C1

1шт.

39

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, IPTO drive shaft ball

1шт.

40

379511R1

SNAP RING,#177, 1.657", Ext

RING, IPTO drive shaft brg retainer snap

1шт.

41

404091R1

PINION

GEAR, 4th speed drive, 43T

1шт.

42

404092R1

PINION

GEAR, 2nd speed drive, 34T

1шт.

43

404093R1

GEAR

1st speed drive, 26T

1шт.

44

398327R3

PINION

GEAR, 4th speed driven, 24T

1шт.

45

398330R3

PINION

GEAR, 2nd speed driven, 33T

1шт.

46

398331R2

PINION

GEAR, 1st speed driven, 41T

1шт.

47

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft front needle

1шт.

48

NSS

NOT SOLD SEPARAT

CUP, synchronizer, not serviced separately, order ref. no. 3

4шт.

49

66014C1

SNAP RING

RING, mainshaft bearing internal snap

1шт.
