Запчасти Case IH 464 (07-01) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

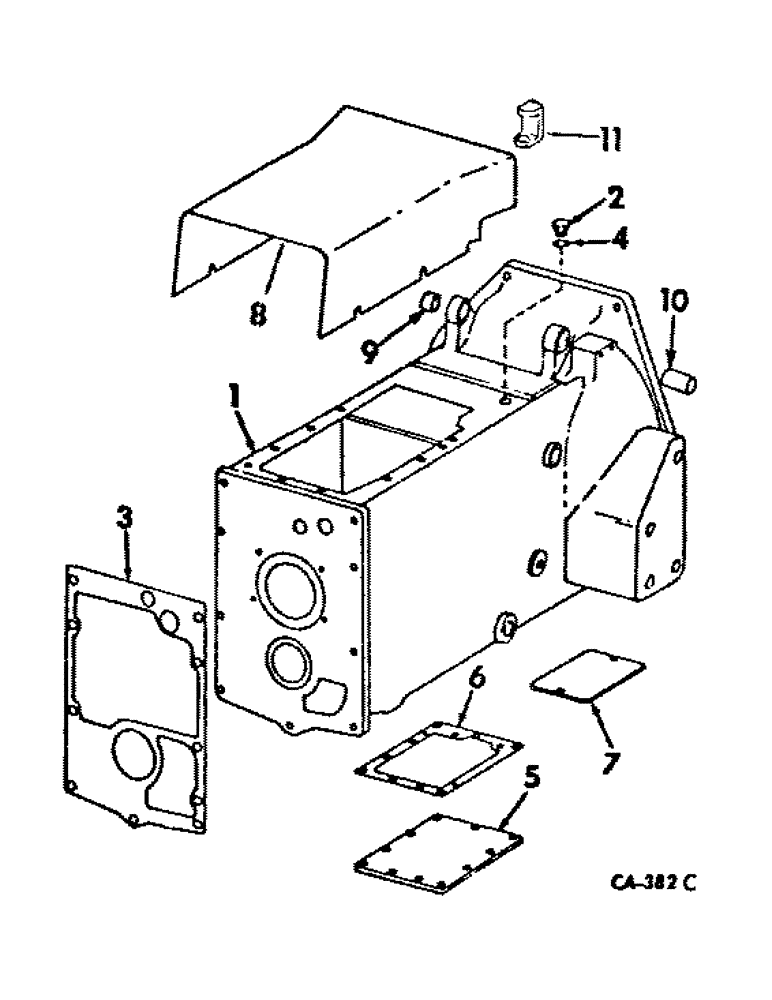

Схема запчастей Case IH 464 - (07-01) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train
2
9
3
4
1
10
8
6
5
11
7

Артикул

Название

Примечание

Количество

1

537097R94

HOUSING

ASSY, clutch, consists of housing (NSS)

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN

1шт.

20556R1

DOWEL,1/2" x 3/4"

PIN

1шт.

19904R1

DOWEL,1/2" x 1"

PIN

2шт.

327411R1

PLUG,Cup, 5/8"

1шт.

3113103R1

PLUG

bushing (NSS)

1шт.

537099R1

NO LONGER SERVICED

BUSHING

1шт.

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

9шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4 pln type 5

6шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 pln type 5, carbureted engine tractors

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1/2 x 1-3/4 pln type 5, Diesel engine tractors

4шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 pln type 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

2

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

3

399814R4

GASKET

clutch housing to rear frame

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

5

402182R1

COVER

clutch housing bottom rear

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

6

402556R2

GASKET

clutch housing bottom rear cover

1шт.

7

399817R1

COVER

clutch compartment

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

66290C1

COVER

clutch housing

1шт.

445957

INDICATOR

1/4 x 3/8 znp P/HDS mach

4шт.

9

539245R1

BUSHING

clutch and brake shaft

1шт.

10

537099R1

NO LONGER SERVICED

BUSHING, LH brake pedal pivot, optional w/539834R1

1шт.

10

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH brake pedal pivot, optional w/537099R1

1шт.

11

NSS

NOT SOLD SEPARAT

(Not used this application)

1шт.

Выбрано товаров: 32
