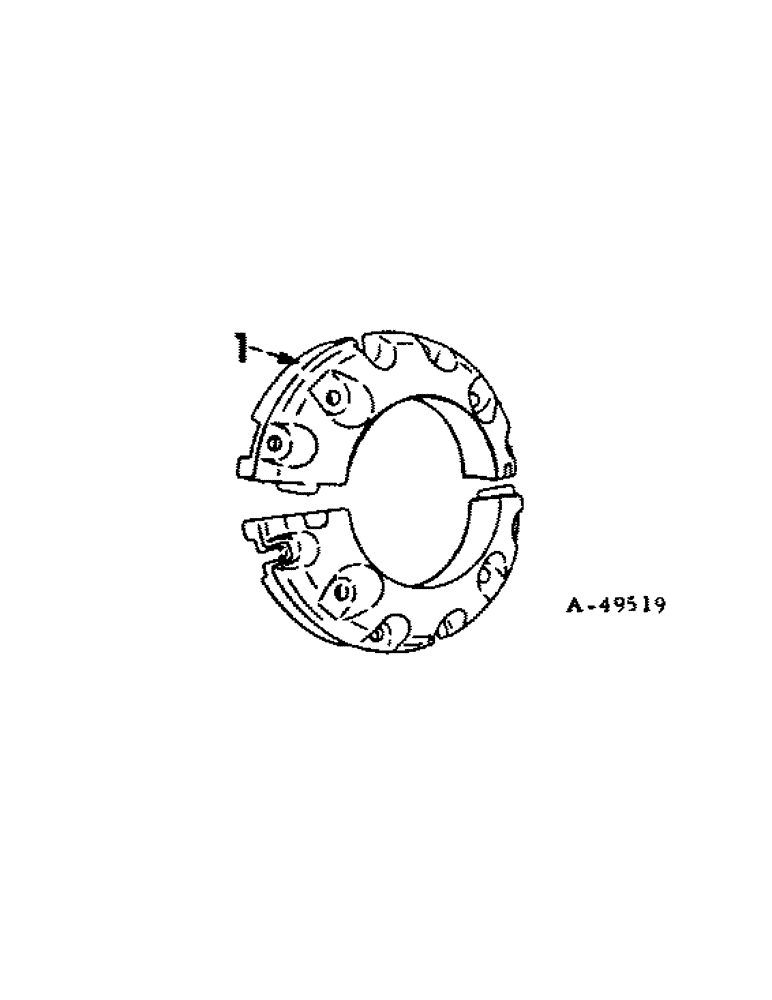

Запчасти Case IH 464 (15-03[1]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS Wheels & Traction

1

365321R2

WEIGHT

rear wheel, 75 lbs., used w/28 in. wheels, first position

4шт.

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

rear wheel weight mounting

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex jam, rear wheel

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex, rear wheel

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear wheel 5/8"

16шт.

1

365321R2

WEIGHT

rear wheel, 75 lbs., used w/28 in. wheels, second position

4шт.

365332R2

SQUARE BOLT

BOLT, rear wheel weight mounting

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex jam, rear wheel

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex, rear wheel

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear wheel 5/8"

8шт.

1

369509R1

WEIGHT

rear wheel, 75 lbs., used w/24 in. wheels, first position

4шт.

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

rear wheel weight mounting

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex, rear wheel

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear wheel 5/8"

8шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel 5/8"

8шт.

1

369509R1

WEIGHT

rear wheel, 75 lbs., used w/24 in. wheels, second position

4шт.

369508R1

BOLT,5/8" - 11 x 5 3/4"

rear wheel weight mounting

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex jam, rear wheel

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex, rear wheel

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Rear wheel 5/8"

8шт.
