(15-02[1]) - WHEELS AND TRACTION, REAR WHEELS

Запчасти Case IH 464 (15-02[1]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

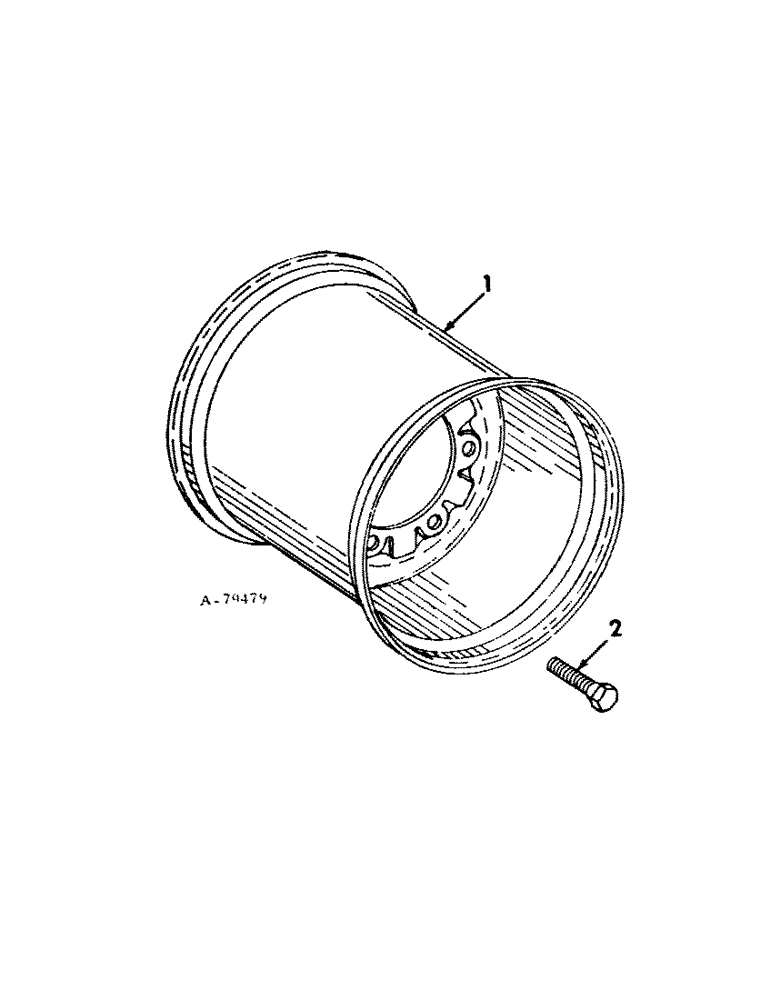

Схема запчастей Case IH 464 - (15-02[1]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

27549C1

VALVE, TR-618A air-liquid tubeless, rear wheel

1шт.

1

386078R92

RIM

AND DISC ASSY, rear wheel, 16.1 x 16lb rim for 18.4-16.1 or 20.5 x 38-16.1 tires

2шт.

2

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

27549R1

VALVE STEM

Assy, Air-liquid TR-618A, Rear wheel

1шт.
