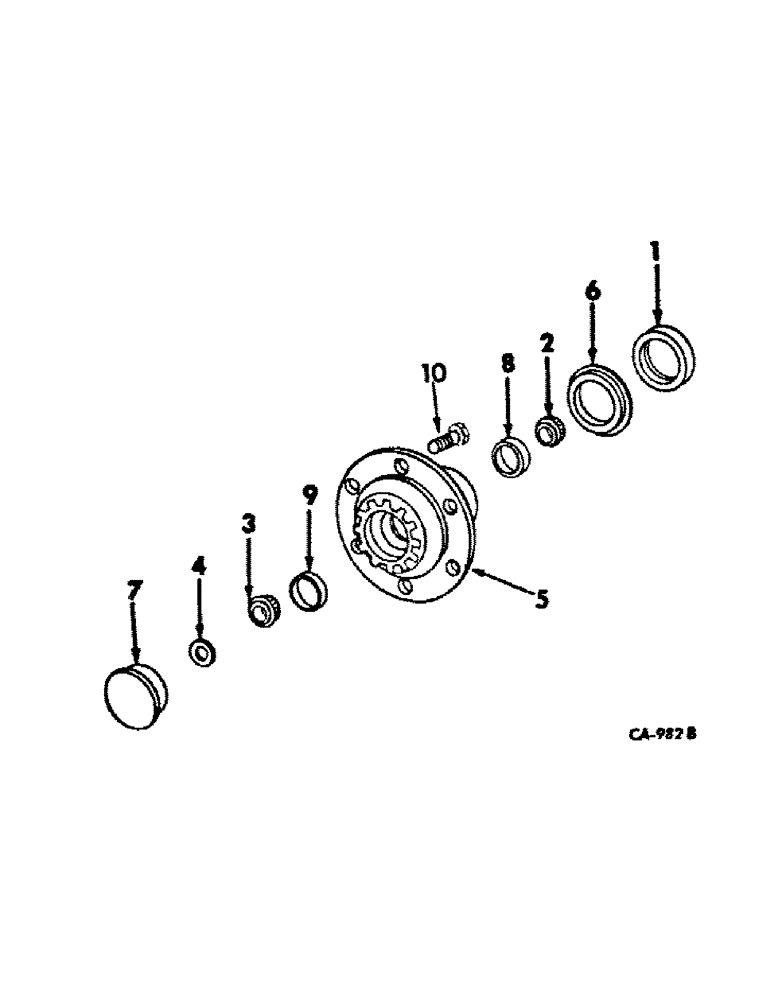

Запчасти Case IH 464 (14-03) - SUPSENSION, FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

405832R91

SEAL

front wheel dust

2шт.

2

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING ASSY, inner cone

2шт.

3

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

ASSY, outer cone

2шт.

4

369936R1

WASHER

outer brg retainer

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

368627R1

WASHER

2-1/4 x 2-17/32 x 1/4 felt

2шт.

5

536058R11

HUB

W/RING & 6 BOLTS, front wheel, consists of Ref. nos. 6, 8, 9 and 10

2шт.

6

406293R2

RING

wear

2шт.

7

612884R1

HUB CAP

CAP, front wheel hub

2шт.

8

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, inner cup

2шт.

9

536057R1

BEARING CUP,46mm OD x 12.06mm W

outer cup

2шт.

10

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

mounting, replaces 528803R1

12шт.

483879R1

NUT

wheel

12шт.

65987C91

KIT

2шт.

PACKAGE, front wheel bearing overhaul, tractors w/adjustable swept back front axle att or adjustable narrow thread swept back front axle att, consists of cone 536053R91, cup 536054R91, cone 536056R91, cup 536057R91, seal 405832R91, washer 369936R1, pin 103386, ring 406293R2

1шт.
