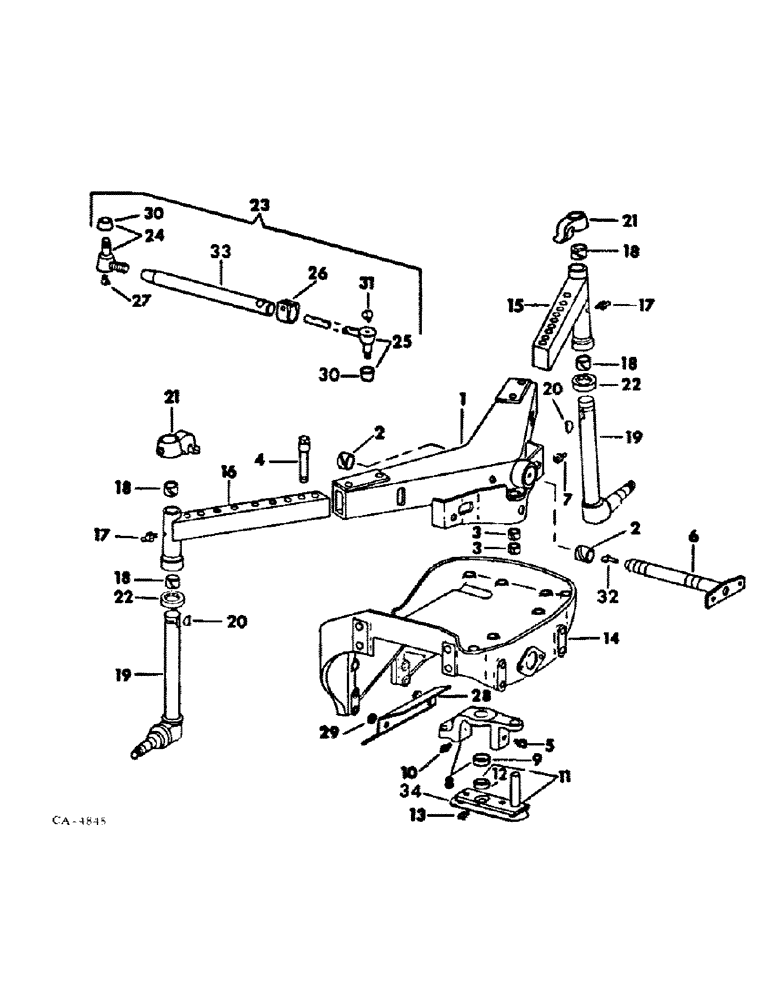

Запчасти Case IH 464 (14-01) - SUSPENSION, FRONT AXLE, SWEPT BACK Suspension

NSS

NOT SOLD SEPARAT

SERVICE PARTS, adjustable front axle, 48 to 80 in. tread, standard model tractors, consists of all unmarked parts, and those marked unit A

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS, narrow tread front axle, 44 to 72 in. tread, standard model tractors, consists of all unmarked parts, and those marked unit B, tractors w/serial no. 104041 and below

1шт.

1

539158R92

NO LONGER SERVICED

AXLE ASSY, front, includes Ref. nos. 2 and 3, unit A

1шт.

1

539162R92

AXLE ASSY, front, includes Ref. nos. 2 and 3, unit B

1шт.

2

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

3

405574R1

BUSHING

support

2шт.

4

405575R2

BOLT,Shldr, 3/4" - 16 x 3.75"

shoulder

4шт.

405576R1

NUT

front axle

4шт.

5

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 deg angle drive type

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

7

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

8

405579R11

ARM

ASSY, ps center

1шт.

9

379748R1

BUSHING

1шт.

10

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive

1шт.

11

405580R11

BAR ASSY.

BAR ASSY, PS cyl

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

379748R1

BUSHING

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str-lub

1шт.

14

405583R4

BOLSTER

front, diesel engine tractors

1шт.

14

405582R3

BOLSTER

front, carbureted engine tractors

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

16шт.

15

66695C91

EXTENSION

ASSY, front axle LH, unit A

1шт.

15

66714C91

EXTENSION ASSY, front axle LH, unit B

1шт.

16

66696C91

EXTENSION

ASSY, front axle RH, unit A

1шт.

16

66715C91

EXTENSION ASSY, front axle RH, unit B

1шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str-lub

2шт.

18

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

4шт.

19

536061R2

STEERING KNUCKLE

KNUCKLE ASSY, steering

2шт.

20

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

21

405833R1

ARM

steering knuckle LH

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

1шт.

102637

NUT,1/2"-13, G5

1шт.

21

405834R1

ARM

steering knuckle RH

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

102637

NUT,1/2"-13, G5

1шт.

22

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

23

NSS

NOT SOLD SEPARAT

ROD ASSY, tie

2шт.

24

356540R91

END

ASSY, RH

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

390686R1

JAM NUT

11/16-18 hex jam

1шт.

25

65077C91

BALL JOINT

END ASSY, LH, unit A

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

25

65074C91

END

ASSY, LH, unit B

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

26

43747D

CLAMP

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 hex-hd cap

1шт.

425-117

NUT,7/16"-20, G5

7/16-20 hex

1шт.

9421096

LOCK WASHER,7/16"

Ext tooth 7/16"

1шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

28

534809R1

BAFFLE, bolster air, carbureted engine tractors

1шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

2шт.

369936R1

WASHER

bolster air baffle

2шт.

28

534810R1

BAFFLE

bolster air, diesel engine tractors

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

369936R1

WASHER

bolster air baffle

2шт.

29

534813R1

SPACER

bolster air baffle, diesel engine tractors

2шт.

30

358209R1

COVER

DUST (Replaces 3588209R1)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.

32

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

33

527659R2

TUBE

unit A

1шт.

33

534292R2

TUBE

unit B

1шт.

34

67976C1

PLATE, LOCKING

STRIP, straight center arm bolt lock

1шт.

36

368627R1

WASHER

for units A and C, not shown

1шт.
