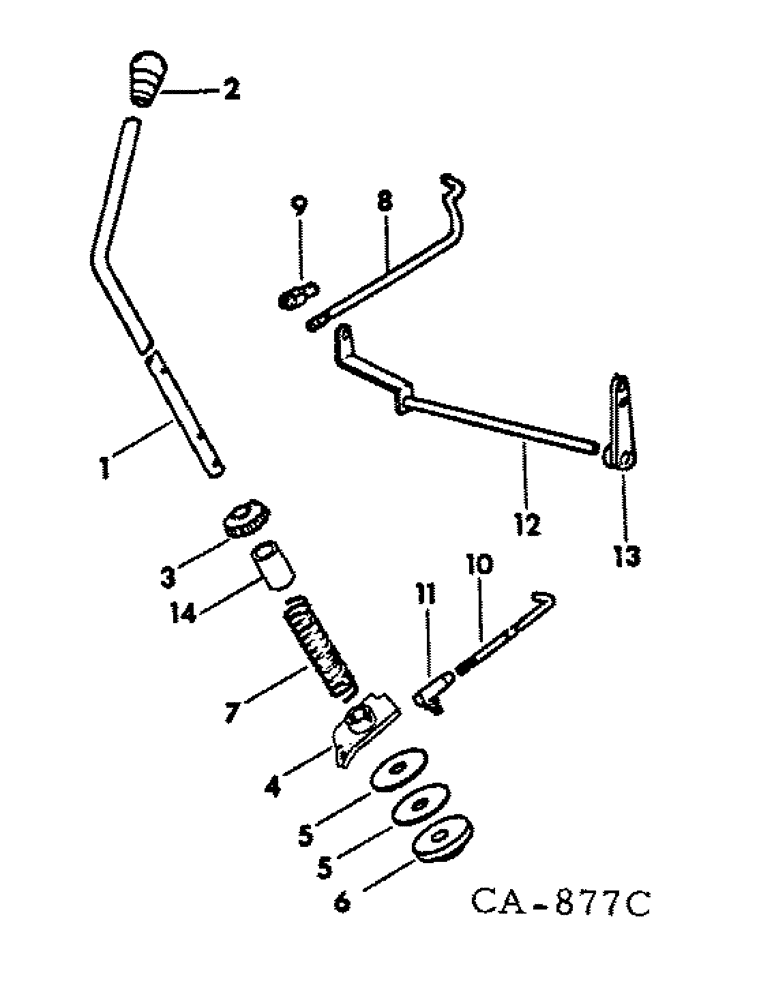

Запчасти Case IH 464 (12-10) - POWER, GOVERNOR CONTROLS, DIESEL ENGINE TRACTORS Power

1

69747C1

ROD, governor control handle, on orders for 528288R2, furnish rod 69747C1 and knob 397931R2

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

3шт.

2

402584R1

BUTTON

KNOB, governor control handle, used w/rod 528288R2

1шт.

2

397931R2

GRIP

KNOB, governor control handle, used w/rod 69747C1

1шт.

2

397931R2GV

SPRING

Value, Knob

1шт.

3

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, 8-32 x 3/8 hex-soc-hd-f-pt set

1шт.

4

528291R3

ARM ASSY.

ARM ASSY, governor control rod

1шт.

5

394716R1

DISC

governor control friction

2шт.

6

528294R1

PLATE ASSY.

PLATE ASSY, governor control friction

1шт.

7

65344C1

SPRING

governor control pressure

1шт.

8

528321R3

ROD

front governor control

1шт.

9

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, 1/4-28 x 1-11/16 short adj rod end

1шт.

114783

PIN

1/4 x 43/64 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

2шт.

10

528324R2

ROD

rear governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

11

109400

STEERING KNUCKLE

JOINT, 1/4-28 ball, optional w/19318R1

1шт.

11

19318R1

BALL JOINT

JOINT, 1/4-28 ball, optional w/109400

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex jam

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

528325R2

ARM

ASSY, governor control idler

1шт.

13

528328R1

LEVER

ASSY, idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

2шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga.

1шт.

14

65345C1

SPACER

adjustable

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 znd hex jam

1шт.

467750R1

WASHER

25/32 x 1-1/2 x .120 znd

1шт.
