Запчасти Case IH 464 (12-07) - POWER, VERTICAL EXHAUST, DIESEL ENGINE TRACTORS Power

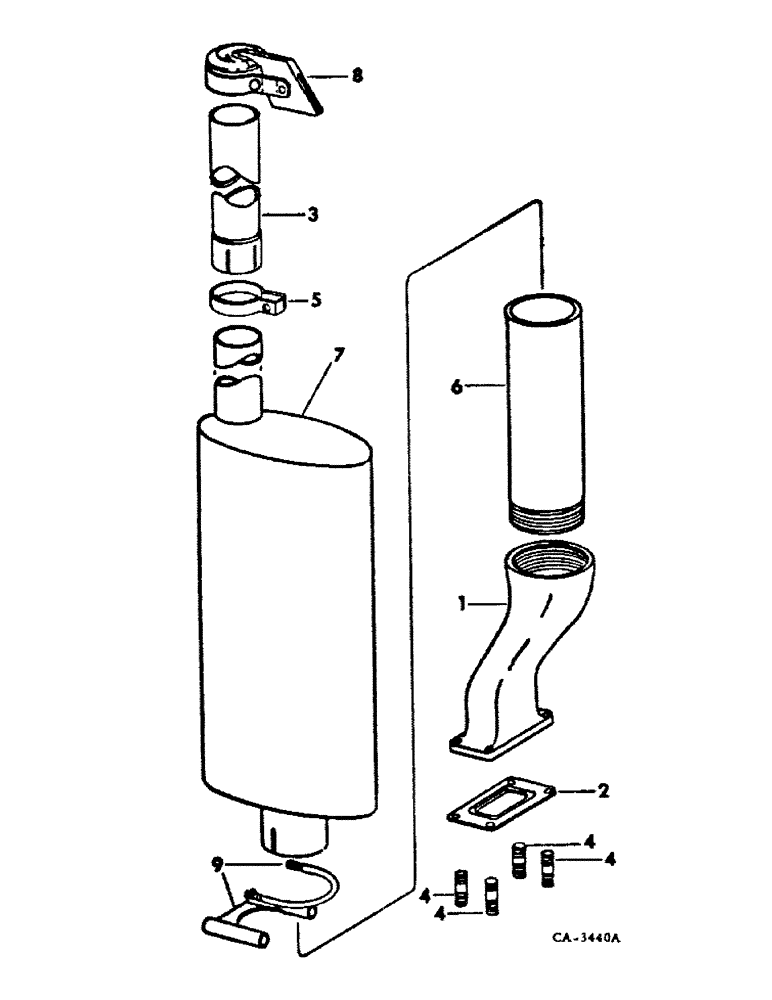

Схема запчастей Case IH 464 - (12-07) - POWER, VERTICAL EXHAUST, DIESEL ENGINE TRACTORS Power
4
9
3
1
4
6
7
4
8
5
4
2

Артикул

Название

Примечание

Количество

1

3136250R1

ELBOW

exhaust manifold

1шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold elbow

1шт.

3

66915C1

PIPE

exhaust extension

1шт.

4

3055663R1

STUD

manifold

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

403826R1

CLAMP

exhaust muffler

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

534206R1

PIPE

exhaust

1шт.

7

403551R1

MUFFLER

1шт.

7

403551R1GV

MUFFLER

Value, Muffler

1шт.

8

283280R91

CAP

ASSY, weather

1шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 C-Z slt-hex washer-hd cap

6шт.

9

59124C91

CLAMP

PACKAGE, muffler clamp service

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

Выбрано товаров: 17
