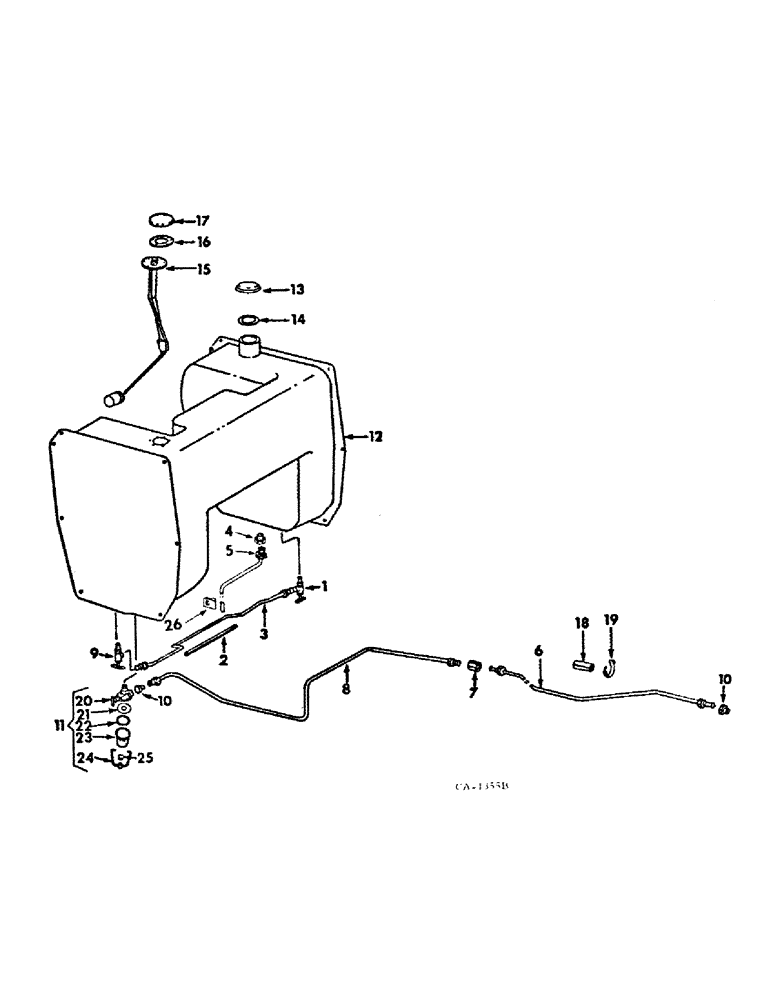

Запчасти Case IH 464 (12-02) - POWER, FUEL TANK AND PIPING, CARBURETED ENGINE TRACTORS Power

1

536002R2

VALVE

ASSY, shut off

1шт.

2

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

3

528922R1

TUBE

ASSY, crossover

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

4

442322

ROD, CONNECTING

CONNECTOR, 1/8-27 inverted flared tube, tractors w/underslung exhaust

1шт.

5

539939R1

TUBE

ASSY, tank breather, tractors w/underslung exhaust

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

6

539470R1

TUBE ASSY, union to fuel pump

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

7

442337

NUT

UNION, 5/16 inverted flared tube

1шт.

8

536001R1

TUBE

ASSY, union to fuel strainer

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

9

536002R2

VALVE

ASSY, shut off

1шт.

10

442322

ROD, CONNECTING

CONNECTOR, 1/8 PT x 5/16 inverted flared tube

2шт.

11

38465DB

STRAINER ASSY.

STRAINER ASSY, fuel

1шт.

12

529369R92

TANK

ASSY, fuel w/filler cap, includes Ref. nos. 13 and 14

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

538063R1

PLUG

CAP ASSY, fuel tank filler

1шт.

14

23977DB

GASKET

fuel tank filler cap

1шт.

15

531974R2

SENDER UNIT

SENDING UNIT, electric fuel gauge, optional w/534226R2

1шт.

15

534226R2

SENDER UNIT

SENDING UNIT, electric fuel gauge, optional w/531974R2

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

16

369154R1

GASKET

sending unit

1шт.

17

529825R2

CYLINDER END CAP

CAP, fuel gage flange

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 x 3/8 C-Z cr-rec-pan-hd mach

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, fuel line, furnish 2.5 in. of hose from a bulk roll marked 530107R1

1шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP

1шт.

20

49928D

BODY

strainer w/baffle

1шт.

21

49923D

FILTER SCREEN

SCREEN, strainer

1шт.

22

360679R1

GASKET

strainer

1шт.

23

49922D

BOWL

strainer

1шт.

24

49947D

COLLAR CLAMP

BAIL ASSEMBLY

1шт.

25

50061D

NUT

fuel strainer

1шт.

26

539940R1

CLIP

breather valve, tractors w/underslung exhaust

1шт.

271713

5/8-11 x 3/4 znd hex-hd cap

1шт.

538393R1

FILLER CAP

PLUG, fuel tank vent pipe flange

1шт.
