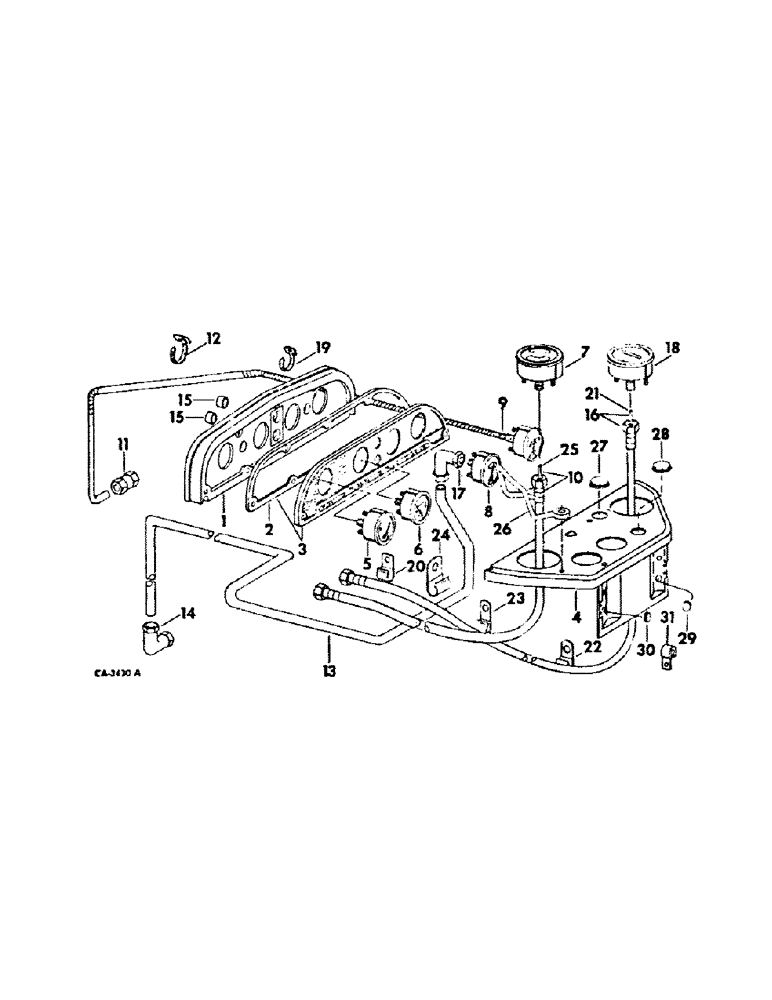

Запчасти Case IH 464 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

529357R2

HOUSING

instrument panel gauge

1шт.

2

529360R1

GASKET

1шт.

3

529358R11

PANEL

ASSY, instrument face

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp P/HDCR mach

8шт.

4

527566R3

PANEL ASSY, instrument, tractors w/serial no. 109150 and below

1шт.

4

114627C1

PANEL ASSY, instrument, tractors w/serial no. 109151 and above

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

2шт.

167214

CHAIN

SCREW, 12-24 x 1/2 C-Z cr-rec-pan-hd tap

4шт.

5

529804R1

FUEL GAUGE

GAUGE ASSY, electric fuel

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

6

536229R1

INDICATOR

GAUGE ASSY, charge indicator

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

7

66455C1

GAUGE

TACHOMETER ASSY

1шт.

8

529802R1

GAUGE

ASSY, oil pressure indicator, optional w/536973R1

1шт.

8

836973R2

GAUGE ASSY, oil pressure indicator, optional w/529802R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

9

529801R1

INDICATOR

ASSY, heat, optional w/536972R1

1шт.

9

536972R1

ELECTRICAL GAUGE

INDICATOR ASSY, heat, optional w/529801R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

10

529795R92

CABLE

ASSY, tachometer flexible, carbureted engine tractors

1шт.

10

393330R92

CABLE

ASSY, tachometer flexible, diesel engine tractors

1шт.

11

51510DA

RESTRICTOR

BUSHING, capillary tube bulb

1шт.

12

306132C1

CABLE TIE,14.5" L

STRAP, capillary tube

3шт.

13

529805R1

PIPE, oil pressure indicator, carbureted engine tractors

1шт.

13

538633R1

PIPE

oil pressure indicator, diesel engine tractors

1шт.

14

140304

ELBOW

1/8-27 ball sleeve ext-thd 90 deg

1шт.

15

530589R1

TUBE

warning light

2шт.

16

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

17

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

1/8-27 hi-duty tube fitting

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting

2шт.

18

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

19

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

20

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

21

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

22

362126R1

CLIP

tachometer drive shaft

1шт.

22

362123R1

CLIP

tachometer drive shaft, diesel engine tractors

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, tachometer drive shaft, diesel engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

362127R1

CLIP

oil pressure tube

1шт.

25

536905R2

CORE

ASSY, tachometer flexible drive shaft, carbureted engine tractors

1шт.

25

393331R92

CORE

ASSY, tachometer flexible drive shaft, diesel engine tractors

1шт.

26

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

27

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, ether start push botton hole

1шт.

28

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, TA or fwd/rev control handle hole

1шт.

29

374342R1

PLUG

button, horn button hole

1шт.

30

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 cr-button, cigarette lighter hole

1шт.

31

362126R1

CLIP

tachometer drive shaft

1шт.
