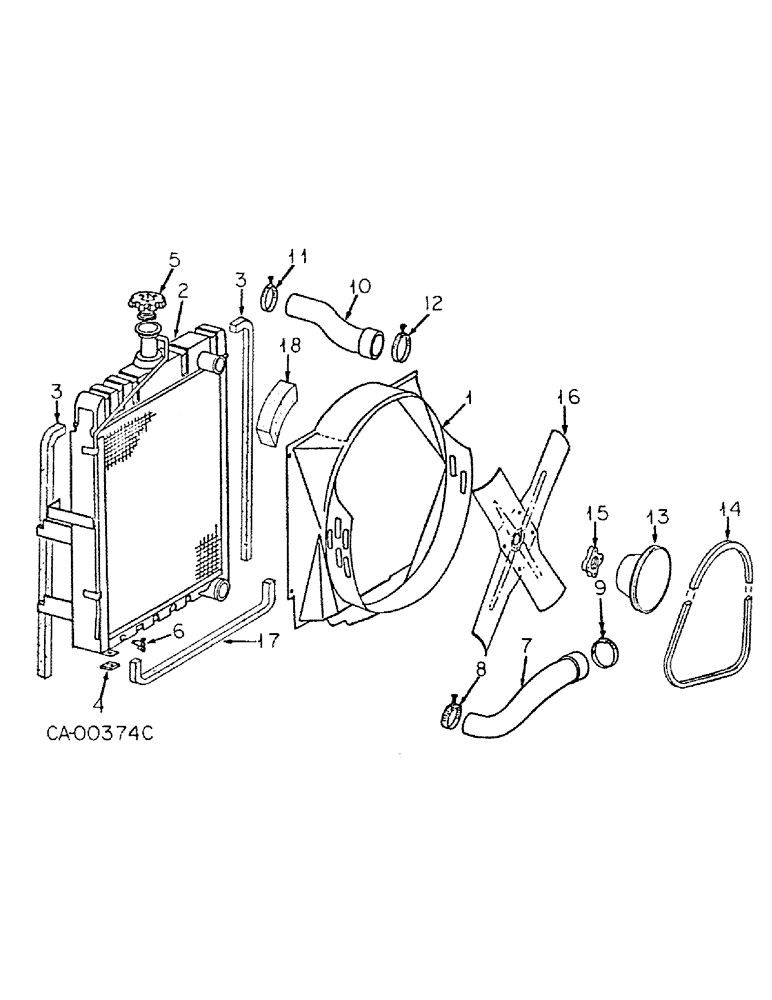

Запчасти Case IH 464 (06-02) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

402184R1

HOUSING

fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

2

539563R2

RADIATOR

ASSY, diesel engine tractors

1шт.

2

539562R2

RADIATOR ASSY, carbureted engine tractors

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

142745

NUT, WING

NUT, 5/16-18 znd wing

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET, radiator baffle, furnish 28 in. from a 4 ft. roll marked 73217C1

2шт.

4

47240D

PAD

radiator

4шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z

1шт.

5

532029R1

CAP ASSY.

CAP ASSY, radiator

1шт.

6

539787R1

COCK, DRAIN

COCK, 1/4 drain

1шт.

7

402188R1

HOSE,ID x 6.63", SAE 20R2

radiator outlet, carbureted engine tractors

1шт.

7

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet (Diesel Engine Tractors) 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

8

995220R1

CLAMP

hose

1шт.

9

995220R1

CLAMP

hose, carbureted engine tractors

1шт.

9

995221R1

CLAMP

hose diesel engine tractors

1шт.

10

402190R1

HOSE,1.50" ID, 2.00" ID x 5.57", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Carbureted Engine Tractors) 1.50" ID, 2.00" ID x 5.57", SAE 20R2

1шт.

402190R1 NOT AS PICTURED, MORE CURVED, ALMOST J SHAPED SMALLER ID 1.5, LARGER END ID IS 2.00.

1шт.

10

402191R1

HOSE,1.50" ID, 2.00" ID x 8.98", SAE 10R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Diesel Engine Tractors) 1.50" ID, 2.00" ID x 8.98", SAE 10R2

1шт.

11

995220R1

CLAMP

hose

1шт.

12

995221R1

CLAMP

hose

1шт.

13

527469R1

PULLEY

water pump, carbureted engine tractors

1шт.

13

401124R2

PULLEY

water pump, diesel engine tractors

1шт.

14

532030R2

V-BELT,0.38" W x 51.95" L

Fan, Carbureted engine tractors 0.38" W x 51.95" L

1шт.

14

534310R1

V-BELT,0.50" W x 63.00" L

Fan, Diesel engine tractors 0.50" W x 63.00" L

1шт.

15

403335R1

SPACER

fan, diesel engine tractors

2шт.

16

82797R91

NO LONGER SERVICED

BLADE ASSY, fan, optional w/86897R91, diesel engine tractors

1шт.

16

86897R91

FAN

BLADE ASSY, fan, optional w/82797R91, diesel engine tractors

1шт.

16

370700R91

BLADE

ASSY, fan, carbureted engine tractors

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

1/4-NF x 5/8 pln type 5, carbureted engine tractors

4шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

1/4-NF x 3-1/2 pln type 5, Diesel engine tractors

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

18

NSS

NOT SOLD SEPARAT

BAFFLE, foam air outlet hose protective, diesel engine tractors, furnish 6 in. from a 4 ft. roll marked 73218C1

1шт.
