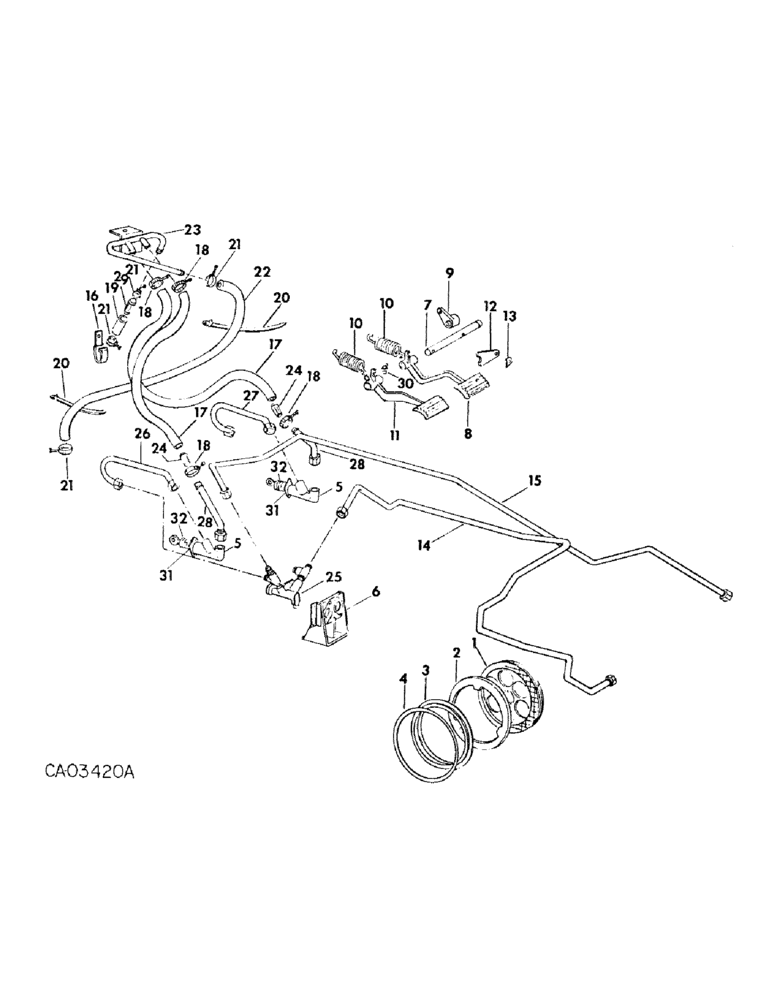

Запчасти Case IH 464 (04-01) - BRAKES (5.1) - BRAKES

1

114619C1

BRAKE LINE

DISC, brake center, replaces 399734R1

2шт.

2

399736R2

RING

brake

2шт.

3

114621C1

PISTON

brake replaces 399737R2

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8, brake piston

2шт.

5

527542R92

CYLINDER

ASSY, brake master

2шт.

5

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

3125824R1

SEAL KIT

Brake Master Cylinder

1шт.

6

529582R2

BRACKET ASSY, brake cyl mounting

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

399740R1

SHAFT

pedal support

1шт.

8

399741R3

PEDAL

RH brake

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1-3/4", coiled

1шт.

9

529858R1

ARM

RH brake pedal

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

1шт.

10

539556R1

SPRING

brake pedal return

2шт.

399744R1

BOLT

BOLT, brake pedal adjusting

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

11

537095R11

PEDAL ASSY.

PEDAL ASSY, LH brake, consists of Ref. nos. 12, 13, and rivet

1шт.

Plus 530816R1 Bushing

1шт.

12

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 small b-hd solid

1шт.

13

51293D

SPRING

brake pedal lock tension

1шт.

14

66093C1

BRAKE LINE

TUBE ASSY, brake LH, replaces LH front tube 536620R1 and LH rear tube 536621R1

1шт.

15

66094C1

BRAKE LINE

TUBE ASSY, brake RH, replaces RH front tube 536622R1 and RH rear tube 536623R1

1шт.

16

527433R1

CLIP

CLAMP, brake reservoir inlet hose

1шт.

17

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

HOSE, brake reservoir inlet

2шт.

18

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

19

66368C2

HYDRAULIC HOSE,0.31" ID x 11.00"

HOSE, brake reservoir inlet

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP

2шт.

21

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

22

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

HOSE, brake reservoir dump

1шт.

23

66369C1

TUBE ASSY.

TUBE ASSY, brake reservoir supply

1шт.

179292

SHIELD

SCREW, 8-32 x 3/8 C-Z hex-hd tap

1шт.

24

537849R2

SCREEN

ORIFICE AND SCREEN ASSY, brake reservoir

2шт.

25

530374R92

VALVE

ASSY, brake equalizer

1шт.

(P/N 530374R92) - O-ring kit for ref #25 is 68434C3

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179193

SCREW, 1/4-20 x 5/8 hex-hd cap

2шт.

26

530851R2

TUBE

ASSY, equalizer LH

1шт.

27

530852R1

TUBE

ASSY, equalizer RH

1шт.

28

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

TUBE ASSY, brake cylinder supply

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT

2шт.

29

537518R1

SCREEN

ORIFICE AND SCREEN ASSY, brake

1шт.

30

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

(P/N 273360) - Bushing 537095R11

1шт.

31

71925C1

HOSE

master brake cylinder return

1шт.

32

71926C1

BELLOWS

INSULATOR, master brake cylinder dust

1шт.

539535R91

O-RING KIT

PACKAGE, brake o-ring service, consists of

1шт.

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8, brake piston

2шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8, differential and connection outer ring

2шт.

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16, differential and connection face seal

2шт.
