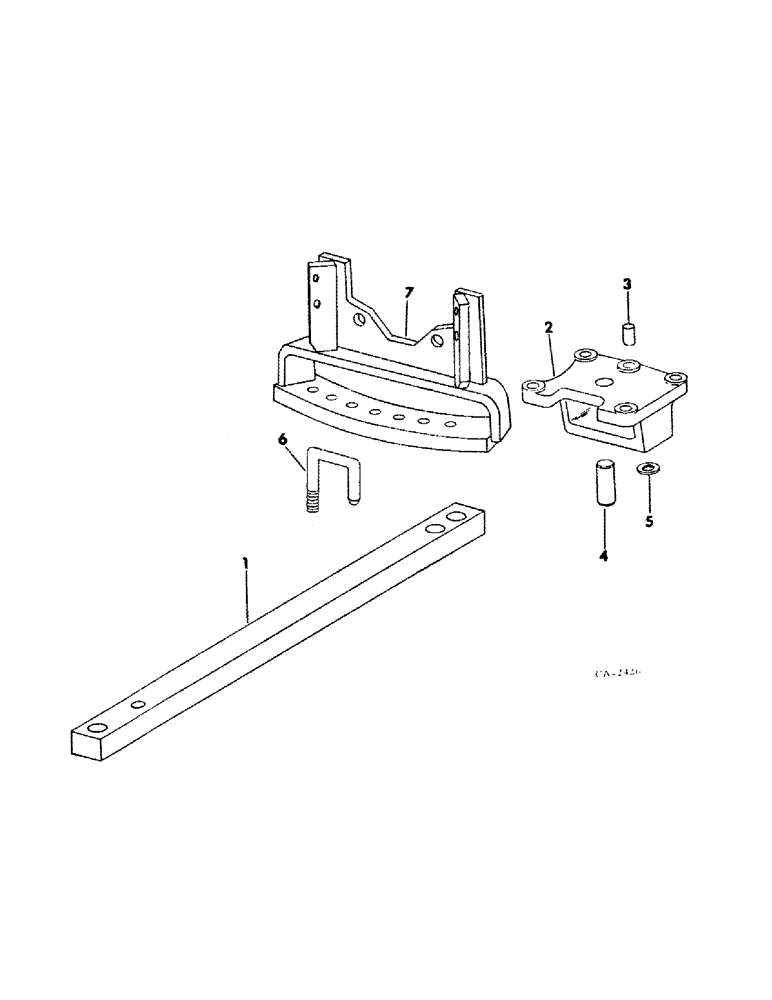

Запчасти Case IH 464 (09-04) - FRAME, SWINGING DRAWBAR (12) - FRAME

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar, 66316C91, tractors equipped w/three point hitch

1шт.

1

533196R1

BAR

DRAWBAR, swinging

1шт.

2

406468R11

SUPPORT ASSY.

SUPPORT W/PIN 19846R1, drawbar pivot

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel

1шт.

4

406469R1

PIN

drawbar pivot

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pivot pin lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

406470R1

AXLE PIN

PIN, drawbar stop

1шт.

19798R1

LOCK NUT,9/16"-12, GB

NUT W/NYLON INSERT, 9/16-12 hex

1шт.

7

703029R91

SUPPORT ASSY, swinging drawbar, tractors w/o three point hitch

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd

5шт.
