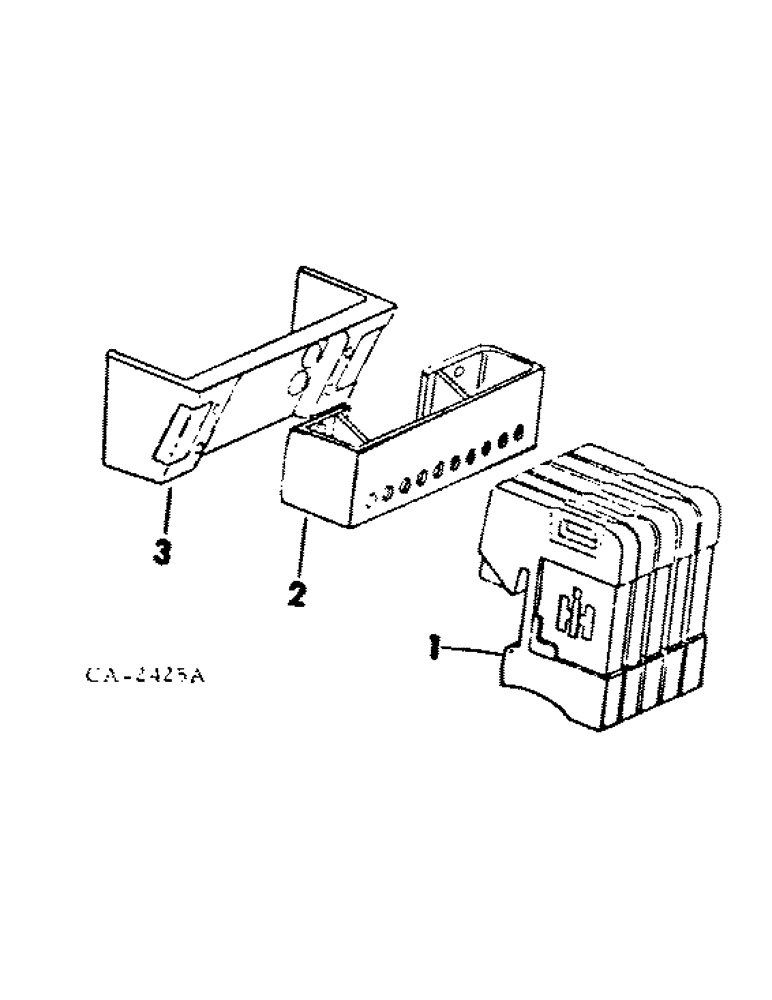

Запчасти Case IH 464 (09-03) - FRAME, FRONT END WEIGHTS (12) - FRAME

NSS

NOT SOLD SEPARAT

FRONT END WEIGHT MOUNTING BRACKET, attachment, 66271C91, for use w/maximum 5 weights, consists of Ref. no. 2 and mounting hardware

1шт.

NSS

NOT SOLD SEPARAT

FRONT END BUMPER WEIGHT ATTACHMENT, 66255C91, consists of Ref. no. 3 and mounting hardware

1шт.

1

71199C1

WEIGHT

front end, 67 lbs., replaces 383392R2

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap, one per weight

1шт.

125536

SQUARE NUT

1/2-13 C-Z square, one per weight

1шт.

2

383389R21

BRACKET

ASSY, weight mounting

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

3

66253C1

WEIGHT, front end bumper

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 C-Z hex-hd cap

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134 C-Z

4шт.
