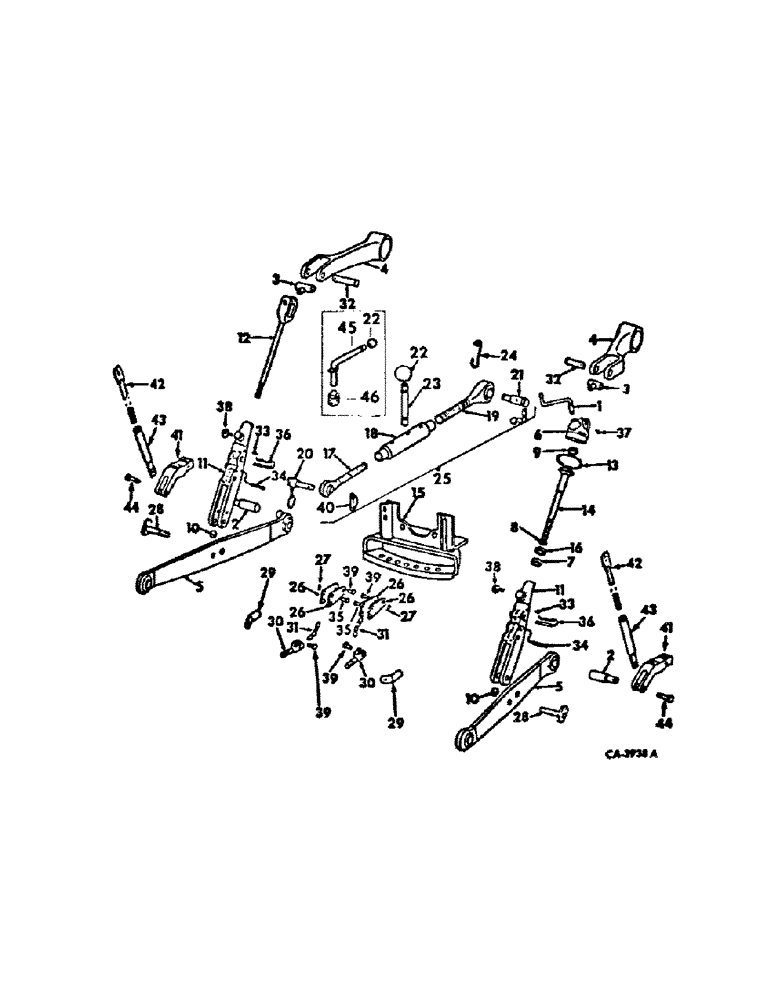

Запчасти Case IH 464 (09-01) - FRAME, THREE POINT HITCH (12) - FRAME

ATTACHMENT, three-point hitch, 402632R92, tractors equipped w/draft control and fixed lower links, consists of Ref. nos. 1 thru 40

1шт.

ATTACHMENT, three-point hitch stabilizer, 529339R91, consists of ref. nos. 41 thru 44, when this attachment is applied in the field on tractors equipped w/underslung exhaust attachment the following, parts must also be ordered for mounting tail pipe rear support (1) screw 191249, (1) spacer 364811R1, (1) washer 120382, (1) nut 120377

1шт.

1

527943R1

CRANK

HANDLE, lift RH link leveling screw

1шт.

3072424R1

SPRING

leveling screw handle

1шт.

2

67829C1

PIN,28.57mm OD x 108.61mm L

lower link

2шт.

538406R1

COTTER PIN

PIN, quick attachable cot.

2шт.

3

539247R1

BRACKET, PIVOT

SWIVEL, leveling screw

2шт.

3069069R1

PIN

5/8 x 3-3/4 hardened

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

3044309R1

PIN

5/8 x 3-3/8 hd

1шт.

575814R1

WASHER

25/32 x 2 x .120

1шт.

4

402634R2

ROCKER ARM

ARM, rockshaft

2шт.

5

402648R1

LOWER LINK

LINK ASSY, lower

2шт.

6

3072422R2

HOUSING

leveling screw

1шт.

7

3069064R1

BEARING

leveling screw

1шт.

8

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

lift RH link leveling screw brg, used w/screw 69991C91

1шт.

9

3069063R1

GEAR

pinion

1шт.

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

10

527937R1

NUT

lift LH and RH link yoke rod adj.

2шт.

11

402635R4

HOUSING

lift link yoke

2шт.

575814R1

WASHER

.781 x 2.000 x .105 pln

4шт.

12

527967R1

CLEVIS,7/8" - 9

YOKE ASSY, lift LH link

1шт.

13

3069065R1

LOCK NUT

leveling screw brg

1шт.

14

69991C91

SCREW

ASSY, lift RH link leveling, will work for 527969R1, optional w/69484C1

1шт.

14

69984C1

NO LONGER SERVICED,7/16" - 20 x 1 1/8"

SCREW ASSY, leveling, will work for 527969R1, opitonal w/69991C91

1шт.

15

403029R91

SUPPORT

ASSY, swinging drawbar

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

5шт.

16

3044346R91

BALL BEARING

BEARING, leveling screw, optional w/3044347R91, 3044349R91 and 3068049R91

1шт.

16

3044347R91

THRUST BEARING

BEARING, leveling screw, optional w/3044346R91, 3044348R91 and 3068049R91

1шт.

16

3044348R91

BEARING, THRUST

BEARING, leveling screw, optional w/3044346R91, 3044347R91 and 3068049R91

1шт.

16

3068049R91

BALL BEARING

BEARING, leveling screw, optional w/3044346R91, 3044347R91 and 3044348R91

1шт.

17

528000R1

SCREW

ASSY, RH thd upper

1шт.

426899

NUT,Jam, 1"-8, G5

1-8 UNC hex lock

1шт.

18

528002R1

TURNBUCKLE

1шт.

19

527998R1

SCREW

ASSY, LH thd upper

1шт.

20

528081R1

PIN ASSY.

PIN ASSY, upper link cat I

1шт.

21

528084R1

HITCH PIN

PIN ASSY, upper link cat II

1шт.

530049R1

CLIP, SPRING

PIN, quick attachable cot.

1шт.

22

3048296R1

BUTTON

KNOB, turnbuckle rod

2шт.

23

65958C1

ROD

turnbuckle

1шт.

24

530050R3

CLIP,ELECTRICAL

CLIP, upper link storage

1шт.

23042R1

WASHER

17/32 x 1 x .030 C-Z flat

1шт.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT, Shoulder

1шт.

25

528085R91

UPPER LINK

LINK ASSY, upper, consists of Ref. nos. 17 thru 23 and 40

1шт.

26

527975R1

PLATE

STRAP, chain shackle

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

27

460047R1

CLIP, SPRING

PIN, quick attachable cot.

2шт.

28

527981R1

PIN ASSY.

PIN ASSY, rear chain bracket

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 nylon insert hex

2шт.

29

403034R1

BRACKET

limiter chain rear

2шт.

30

527976R1

ADJUSTABLE CLEVIS

CLEVIS ASSY, lateral limiter

2шт.

31

527974R1

CHAIN (AG)

CHAIN, lateral limiter

2шт.

32

3044309R1

PIN

rockshaft arm hd

2шт.

720631R1

LINCH PIN

PIN, rockshaft arm cot.

2шт.

33

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

34

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN, lift link yoke float

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

35

403031R1

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

36

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, lift link lock

2шт.

37

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

38

5533189R1

PIN ASSY, lower link drawbar

2шт.

530049R1

CLIP, SPRING

PIN, quick attachable cot.

1шт.

39

403031R1

PIN

chain shackle strap

4шт.

Item #39 is called out as the pin, shackle strap, on print. It is 1.42" long. Item #35 should be 403037r1, subs to 528112r2 which is 1.95" long.

1шт.

40

533189R1

PIN

ASSY, implement

1шт.

41

529342R3

BRACKET

stabilizer mounting

2шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

535888R1

CLIP

stabilizer holding

2шт.

42

378012R1

ROD

stabilizer end

2шт.

43

529344R1

TUBE

stabilizer end rod

2шт.

44

529346R1

PIN

stabilizer end rod tube

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

45

527991R1

ROD

ASSY, turnbuckle, on orders for rod 527991R1, furnish rod 65958C1 and knob 3048296R1

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

46

899896R1

SPRING

turnbuckle rod, used w/rod 527991R1

1шт.
