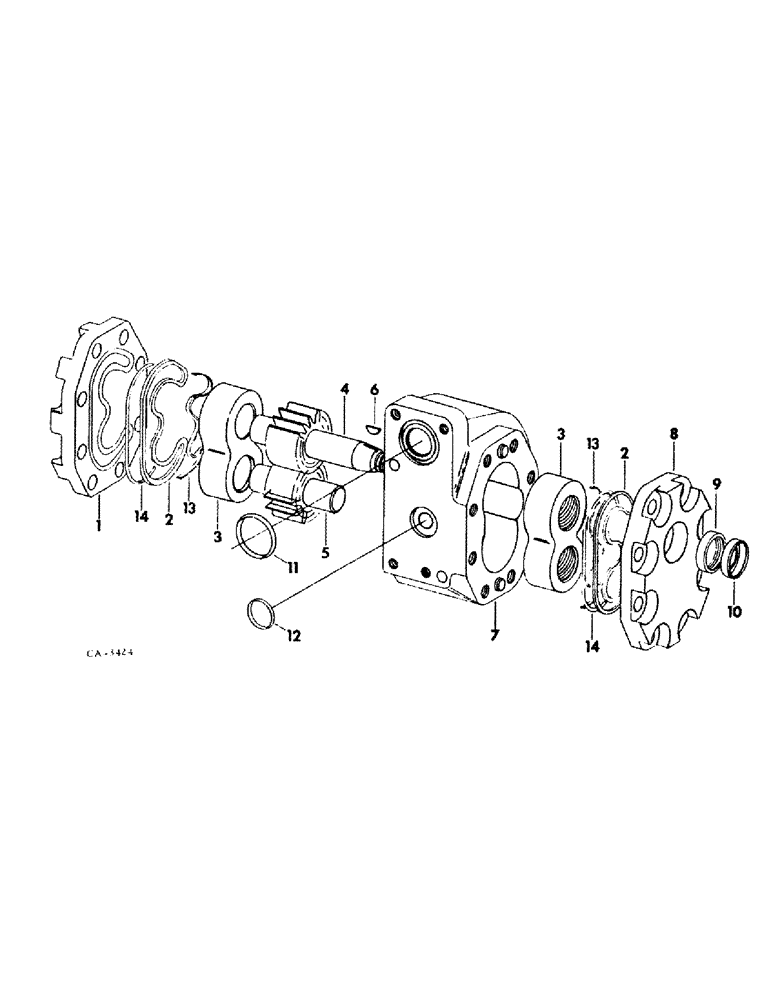

Запчасти Case IH 464 (10-27) - HYDRAULICS, HYDRAULIC GEAR PUMP, PLESSEY (07) - HYDRAULICS

66513C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, opitonal w/128180C91

1шт.

84573150R

REMAN-HYD PUMP

464 INTERNATIONAL TRACTOR, PUMP ASSY, hydraulic gear (1/73-12/73), Reman for New PN 66513C91

1шт.

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER, pump body, not serviced separately, order pump assy

1шт.

2

NSS

NOT SOLD SEPARAT

RING, sealing, not serviced separately, order seal package

2шт.

3

NSS

NOT SOLD SEPARAT

BEARING, not serviced separately, order pump assy

2шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSY, drive, not serviced separately, order pump assy

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASST, driven, not serviced separately, order pump assy

1шт.

6

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive gear #6, 5/32" x 5/8", HT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, pump assy, not serviced separately, order pump assy

1шт.

8

NSS

NOT SOLD SEPARAT

COVER, pump assy, not serviced separately, order pump assy

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, drive shaft, not serviced separately, order seal package

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER, shaft seal, not serviced separately, order pump assy

1шт.

11

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port

1шт.

12

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

pressure port

1шт.

13

NSS

NOT SOLD SEPARAT

STRIP, backing, not serviced separately, order seal package

1шт.

14

NSS

NOT SOLD SEPARAT

STRIP, backing, not serviced separately, order seal package

1шт.

70230C1

SEAL KIT

PACKAGE, seal, consists of (2) ring (NSS), (2) strip (NSS), (2) strip (NSS), (1) seal )(NSS)

1шт.
