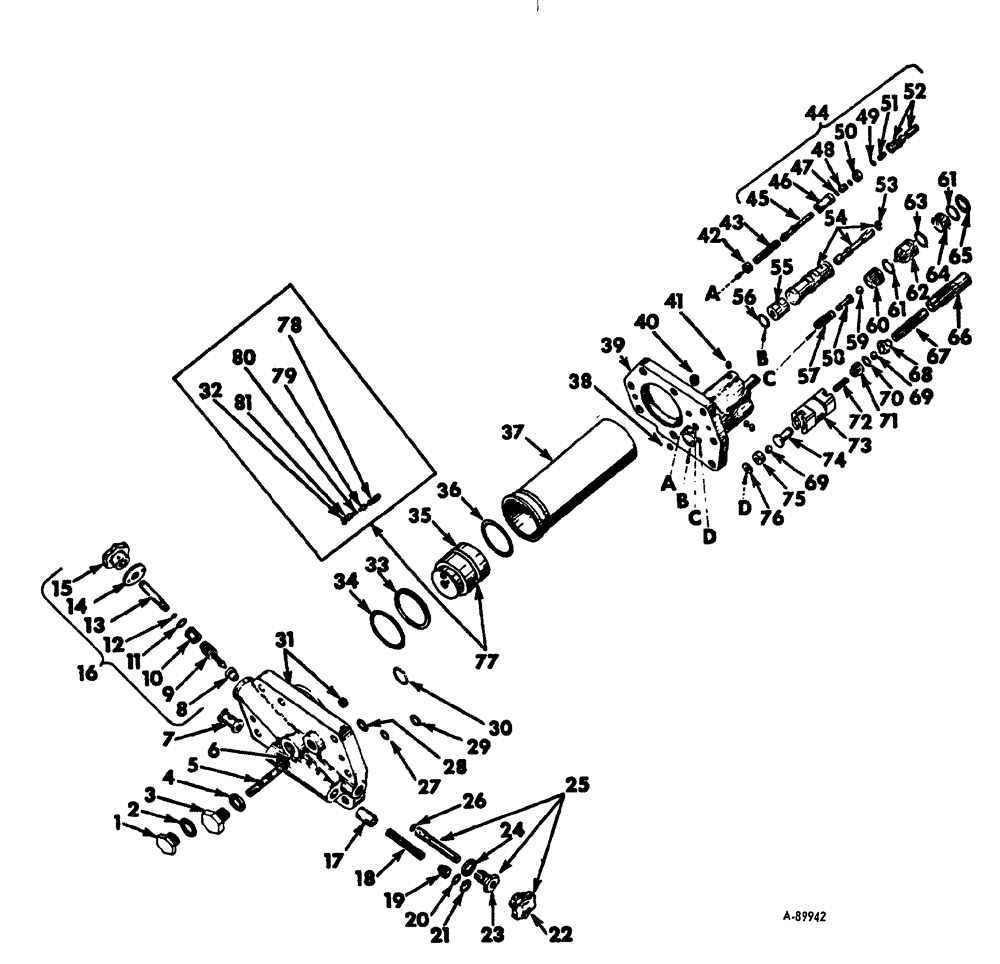

Запчасти Case IH 444 (F-12) - HYDRAULICS SYSTEM, CONTROL VALVE, TRACTORS WITH HYDRAULIC LIFT (07) - HYDRAULIC SYSTEM

3069236R94

LOCK VALVE

ASSY. draft control

1шт.

1

706027R1

PLUG

tapping, auxiliary

1шт.

2

704337R1

SEALING WASHER

WASHER auxiliary tapping plug

1шт.

3

751580R3

BOLT,5/8" - 18 x 5/8"

cover, needle valve

1шт.

4

3045118R1

SEAL

WASHER dowty

1шт.

5

3047294R95

FILTER

ORIFICE ASSY.

1шт.

6

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

1шт.

7

3045109R2

SPACER

1шт.

8

3067146R1

SEAT

valve, isolator

1шт.

9

3045102R2

VALVE

isolator

1шт.

10

3045106R1

BUSHING

valve, isolator

1шт.

11

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

O, 15/32" x 21/32" x 3/32"

1шт.

12

3067284R1

GASKET

O-RING, 7/32" x 11/32" x 1/16"

1шт.

13

3045107R1

SHAFT

knob, isolator valve

1шт.

443137

AXLE PIN

groove, 5/32" x 1/2"

1шт.

14

3045104R1

PLATE

stop

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

15

3045113R1

KNOB

isolator valve

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Type A

1шт.

16

3045102R21

VALVE

ASSY. isolator

1шт.

17

3045105R1

PISTON

speed control

1шт.

18

3045111R1

SPRING

piston, speed control

1шт.

19

3045110R1

PLUG

piston, speed control

1шт.

20

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O, 7/16" x 5/8" x 3/32"

1шт.

21

3047246R1

RETAINER

CIRCLIP piston plug, speed control

1шт.

22

3045112R1

KNOB

speed control

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32" x 7/8", Type A

1шт.

23

NSS

NOT SOLD SEPARAT

LATCH spool, order spool assy. 3045103R11

1шт.

24

3045118R1

SEAL

WASHER dowty

1шт.

25

3045103R11

SPOOL

ASSY. speed control

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

1шт.

26

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16"

1шт.

27

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O pressure inlet, 7/16" x 5/8" x 3/32"

1шт.

28

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16" x 3/4" x 3/32"

1шт.

30

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

pressure outlet, 7/8" x 1-1/16" x 3/32"

1шт.

31

3069235R91

CYLINDER

HEAD ASSY.

1шт.

3108188R11

PLUG

ASSY.

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON, order piston assy. 3044376R92

1шт.

33

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

relief valve, 3/8" x 1/2" x 1/16"

1шт.

34

3072018R1

WASHER

back up

1шт.

35

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

O piston, 2-5/8" x 3" x 3/16"

1шт.

36

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

O cylinder, 2-5/8" x 3" x 3/16"

1шт.

37

3044434R1

SLEEVE

CYLINDER hydraulic lift

1шт.

38

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8" x 1/2" x 1/16"

1шт.

39

3044426R1

BODY

valve

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

40

444697

PLUG,Hex Soc, 3/8"-18

pipe, auto., hex socket, 3/8"-18

1шт.

41

444687

PLUG,Hex Soc, 1/8"-27

Pipe, Auto

3шт.

42

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

lowering spool, 7/8" x 1-1/16" x 3/32"

1шт.

43

41608D

SPRING

spool

1шт.

44

3049142R93

SPOOL

SPOOL ASSY. lower

1шт.

45

NSS

NOT SOLD SEPARAT

SPOOL lowering, order spool assy. 3049142R93

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE lowering, order spool assy. 3049142R93

1шт.

47

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4" x 3/8" x 1/16"

2шт.

48

NSS

NOT SOLD SEPARAT

GLAND lowering spooling, order spool assy. 3049142R93

1шт.

49

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16" x 7/16" x 1/16"

1шт.

50

NSS

NOT SOLD SEPARAT

PLUG lowering sleeve, order spool assy. 3049142R93

1шт.

51

3045610R1

SPRING

PLUNGER

1шт.

52

NSS

NOT SOLD SEPARAT

PLUNGER AND SLEEVE, order spool assy. 3049142R93

1шт.

53

3040910R1

RETAINER

CIRCLIP internal, 1/2" bore

1шт.

54

3049088R91

SPOOL

SLEEVE ASSY., matched set

1шт.

55

3040809R1

PLUG

main sleeve

1шт.

56

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve sleeve, 13/16" x 1-1/16" x 1/8"

1шт.

57

352026R2

SPRING

ball, valve, flow control

1шт.

58

350084R2

SEAT

RIDER ball, valve, flow control

1шт.

59

3072912R1

BALL

valve, flow control, Replaces: 16018R1

1шт.

60

751562R1

SEAT

valve, flow control

1шт.

61

704378R1

O-RING,0.139" Thk x 0.85" ID

O piston plug, valve

2шт.

62

751563R91

PISTON

ASSY. valve

1шт.

63

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

piston, valve, 13/16" x 1-1/16" x 1/8"

1шт.

64

751566R1

PLUG

valve piston

1шт.

65

751567R1

RETAINER

CIRCLIP internal, 1-3/16" bore

1шт.

66

3108947R1

HOUSING

HOUSING spring, relief valve, Replaces: 751558R2

1шт.

67

751557R1

SPRING

valve, relief

1шт.

68

3108946R2

SEAT/SLOT

RIDER ball, relief valve, Replaces: 751556R2

1шт.

69

3072883R1

BALL,3/8" Dia

valves, relief and non-return, Replaces: 16012R1

2шт.

70

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

seat, valve, 9/16" x 3/4" x 3/32"

1шт.

71

751554R1

SEAT

valve, relief

1шт.

72

3074227R1

SPRING

SPRING valve, non-return, Replaces: 704717R1

1шт.

73

751555R2

SLEEVE

valve, non-return

1шт.

74

3063495R1

SEAT

RIDER ball

1шт.

75

751559R2

SEAT

valve, non-return

1шт.

76

751560R1

COPPER WASHER

copper, 9/32" x 23/32" x 16 gauge

1шт.

77

3044376R92

PISTON

PISTON ASSY., composed of: (1) ball 16003R1, (1) O-ring 379365R1, (1) piston 3044377R4, (1) plug 707745R1, (1) rider 707746R2, (1) spring 3066410R1

1шт.

78

3066410R1

SPRING

valve

1шт.

79

707746R2

SEAT

RIDER ball

1шт.

80

16003R1

BALL

steel, cr. pltd., 3/32" diameter

1шт.

81

707745R1

PLUG

relief

1шт.

3063656R92

KIT

SPARE PART PACKAGE valve, non-return and relief

1шт.

Consists of: (2) ball 3072883R1, (1) housing 3108947R2, (1) O-ring 377952R1, (1) rider 3063495R1, (1) rider 3108946R3, (1) seat 751554R1, (1) seat 751559R2, (1) sleeve 751555R2, (1) spring 3074227R1, (1) spring 751557R1, (5) shim 3110027R1, (1) washer 751560R1

1шт.

3067990R91

KIT

PACKAGE service, O-ring, control valve

1шт.

Consists of: (2) O-ring 21433R1, (2) O-ring 379365R1, (2) O-ring 379366R1, (2) O-ring 377952R1, (1) O-ring 381871R1, (4) O-ring 384937R1, (2) O-ring 385713R1, (2) O-ring 704378R1, (1) O-ring 3045226R1, (2) O-ring 3067183R1, (1) O-ring 3067284R1

1шт.
