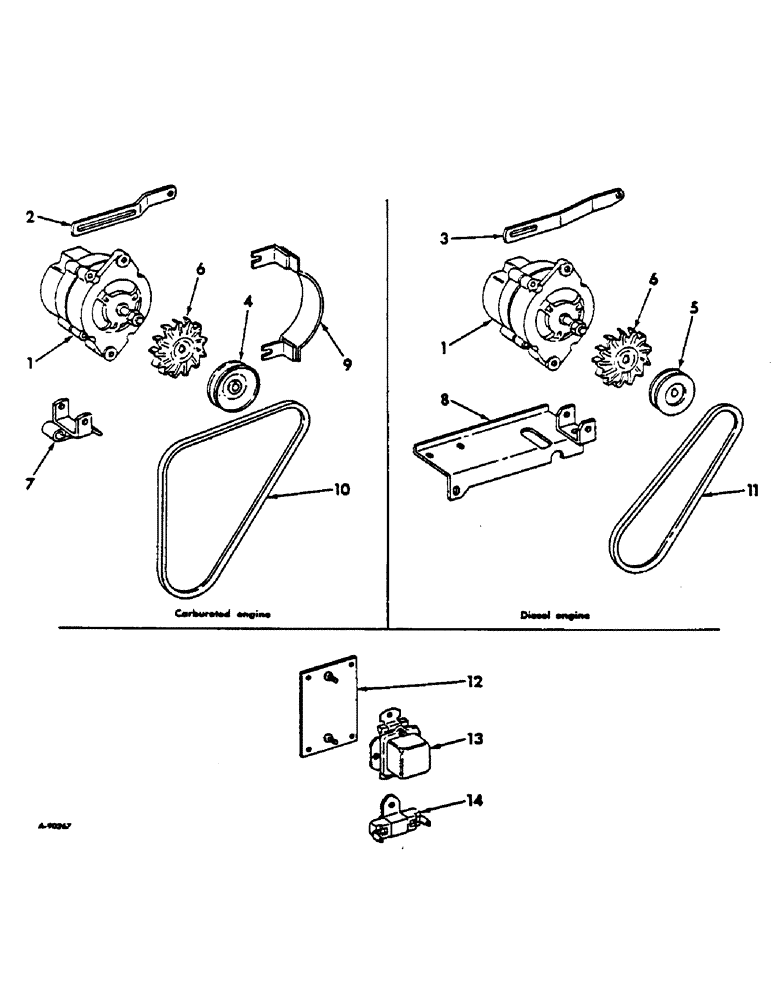

Запчасти Case IH 444 (G-02) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

1100805

GENERATOR

ALTERNATOR, 702337C91, 32 amp, for components see list of parts under details of alternator generator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

102635

NUT,3/8"-16, G5

1шт.

225-14112

NUT,#12-24

machine screw, hex head, 12-24 C-Z

1шт.

120614

NUT,Hex, #10 - 32

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

492-11012

LOCK WASHER,#12

1шт.

120217

LOCK WASHER,#10

1шт.

2

BRACE alternator/generator, refer to eng-1 parts catalog

1шт.

3

401410R1

SPARE PART BRACE alternator/generator

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

cap, hex head, 5/16"-18 C-Z

1шт.

80681

LOCK WASHER,5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

11/32" x 11/16" x .065" C-Z

1шт.

4

1949358

PULLEY

alternator/generator, 606939C1

1шт.

5

1961291

PULLEY

alternator/generator, 393821R1

1шт.

6

1966990

FAN

alternator/generator, 221425R1

1шт.

7

402998R1

SPARE PART ASSY. alternator/generator

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

cap, hex head, 1/2"-13 x 2-3/4"

1шт.

103323

LOCK WASHER,1/2"

1шт.

8

401408R1

SPARE PART ASSY. mounting, alternator/generator

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

9

403293R1

SPARE PART ASSY. alternator fan

1шт.

10

403580R1

V-BELT,0.42" W x 43.30" L

Alternator

1шт.

11

401691R1

BELT,0.50" W x 34.00" L

Alternator

1шт.

12

401500R1

SPARE PART ASSY. mounting, voltage regulator

1шт.

179795

TILLAGE BLADE

cap, hex head, 1/4"-20 x 3/4"

2шт.

103319

LOCK WASHER,1/4"

2шт.

13

1119516

REGULATOR

voltage, 384988R91, composed of: (1) cover 1958151, (2) screw, cover 1962733, (1) shock bracket package 1962629

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

14

260602C91

RESISTOR

UNIT

1шт.
