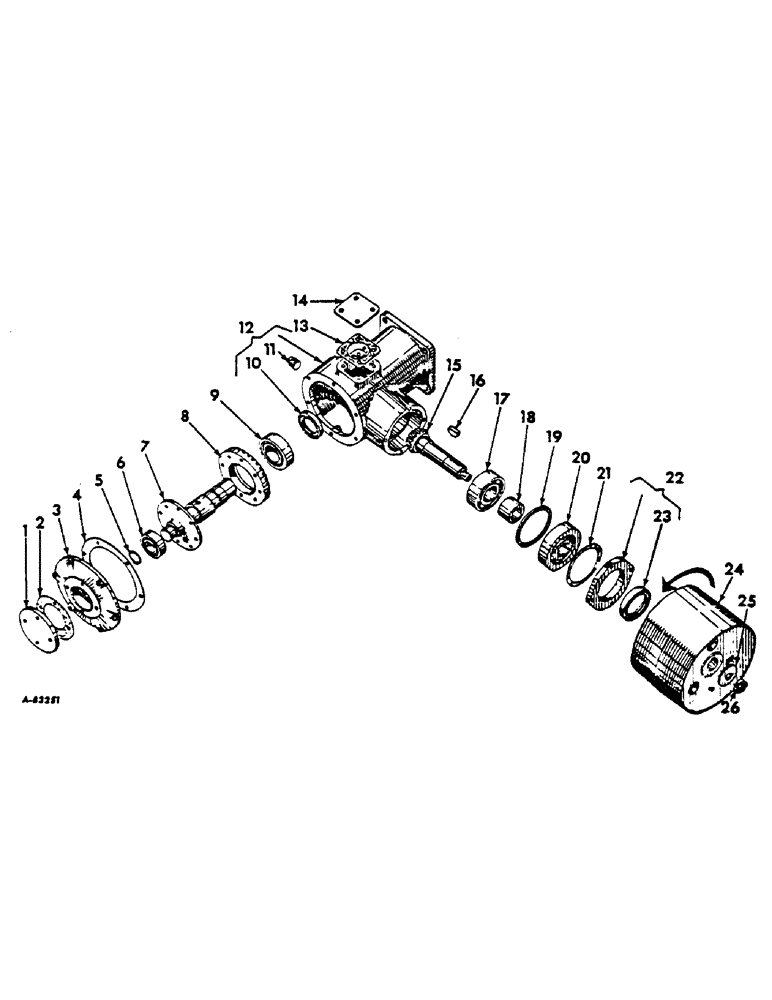

Запчасти Case IH 444 (B-19) - POWER TRAIN, BELT PULLEY ATTACHMENT, COUNTER CLOCKWISE (03) - POWER TRAIN

ATTACHMENT belt pulley, 704227R91

1шт.

1

711877R1

RETAINER

RETAINER bearing, belt pulley

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

2

711304R2

GASKET

retainer, bearing, belt pulley

1шт.

3

704241R1

SPARE PART housing, drive, belt pulley

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

6шт.

103321

LOCK WASHER,3/8"

6шт.

4

704239R1

GASKET

SHIM heavy, cover, drive housing, belt pulley, or as required

2шт.

4

704240R1

SPARE PART light, cover, drive housing, belt pulley, or as required

2шт.

4

707844R1

SHIM

cover, drive housing, belt pulley, .002" thick

1шт.

5

704238R1

RETAINER

SPARE PART CIRCLIP external type, 35 mm shaft size

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

outer, shaft, belt pulley

1шт.

7

704231R12

SHAFT

ASSY. drive, belt pulley

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

cap, hex head, 5/16"-18 x 5/8"

8шт.

115548

LOCK WASHER,Int Tooth, 5/16"

8шт.

8

704233R2

GEAR

bevel, belt pulley

1шт.

9

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

inner, shaft, belt pulley

1шт.

10

704229R91

OIL SEAL

drive housing, belt pulley

1шт.

11

217-442

PLUG,3/4" - 14

PLUG pipe, 3/4"

1шт.

12

704228R11

HOUSING

drive, belt pulley, with oil seal 704229R91 and plug 103869

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

4шт.

13

711882R1

GASKET

cover plate, top, drive housing, belt pulley

1шт.

14

711881R1

PLATE

cover, top, drive housing, belt pulley

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

SCREW cap, hex head, 3/8"-16 x 11/16"

4шт.

103321

LOCK WASHER,3/8"

4шт.

15

704242R1

GEAR

BEVEL pinion shaft, drive, belt pulley

1шт.

16

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

17

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

inner, pinion, belt pulley

1шт.

18

704243R1

SPACER

SPARE PART bearing, belt pulley

1шт.

19

706745R1

SPACER

pinion shaft, belt pulley, .148" thick

1шт.

19

711863R1

SPACER

SPACER pinion shaft, belt pulley, .150" thick

1шт.

19

711864R1

BLOCK

SPACER pinion shaft, belt pulley, .152" thick

1шт.

19

711865R1

RING

SPACER pinion shaft, belt pulley, .154" thick

1шт.

19

711866R1

BLOCK

SPACER pinion shaft, belt pulley, .156" thick

1шт.

19

711867R1

BLOCK

SPACER pinion shaft, belt pulley, .158" thick

1шт.

19

711868R1

SPACER

SPACER pinion shaft, belt pulley, .160" thick

1шт.

19

711869R1

BLOCK

SPACER pinion shaft, belt pulley, .162" thick

1шт.

19

711870R1

SPACER

SPACER pinion shaft, belt pulley, .164" thick

1шт.

20

137869H

BEARING

ball, outer, pinion, belt pulley

1шт.

21

711872R1

GASKET

retainer, pinion shaft, belt pulley

1шт.

22

704246R21

RETAINER

shaft, belt pulley, with oil seal 704247R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

23

704247R91

OIL SEAL

retainer, pinion shaft, belt pulley

1шт.

24

704249R11

PULLEY

belt, with bushing 704250R1

1шт.

704250R1

BUSHING

SPARE PART belt pulley

1шт.

25

704251R1

WASHER

retainer, belt pulley

1шт.

26

704252R1

NUT

pinion shaft, belt pulley

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

1шт.
