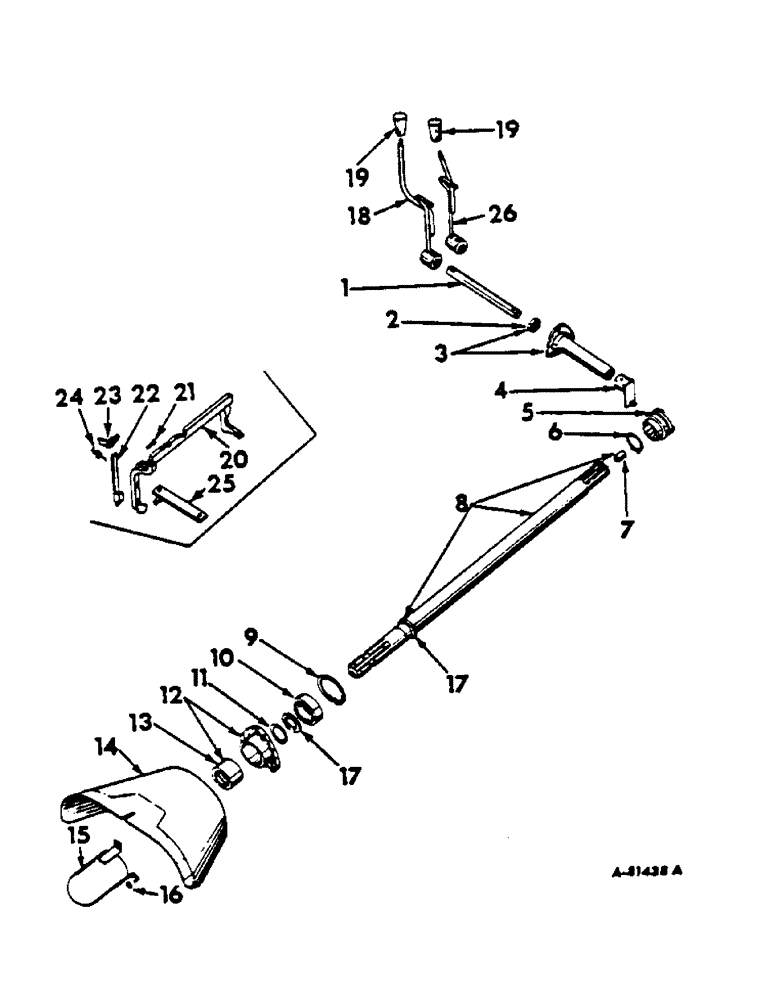

Запчасти Case IH 444 (B-15) - POWER TRAIN, POWER TAKE-OFF REAR SECTION (03) - POWER TRAIN

1

3069698R1

SPARE PART shifter, PTO, Replaces: 3064231R1

1шт.

2

704393R91

OIL SEAL

oil, shifter bracket

1шт.

3

704392R21

SUPPORT

BRACKET ASSY. rear clutch

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

3шт.

4

3063246R11

LEVER

SHIFTER ASSY., PTO, used only on tractors with forward and reverse transmission and/or constant running PTO

1шт.

4

3061857R11

LEVER

SHIFTER ASSY., PTO, not used on tractors with forward and reverse transmission or dual clutch

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, 3/16" x 1-1/4"

1шт.

5

751113R2

CLUTCH

rear shaft, PTO

1шт.

6

751117R1

CLIP

cir, clutch, rear shaft, PTO

1шт.

7

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

rear shaft, PTO

1шт.

8

751114R51

SHAFT HOUSING

ASSY. rear, PTO

1шт.

9

704385R1

CLIP

cir, internal

1шт.

10

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

rear shaft, PTO

1шт.

11

708541R1

RETAINER

CIRCLIP external

1шт.

12

704387R12

RETAINER

ASSY. oil seal, PTO

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

Used only with belt pulley attachment

3шт.

3072253R1

STUD

safety shield, PTO

3шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

103320

LOCK WASHER,5/16"

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 gauge

3шт.

13

358812R91

OIL SEAL

oil, rear, PTO shaft

1шт.

14

704395R96

SHIELD

ASSY. safety, PTO

1шт.

15

3041319R11

CAP

ASSY. safety, PTO

1шт.

16

751472R1

WASHER

safety cap, PTO

3шт.

17

707991R1

COLLAR

shaft, PTO

1шт.

18

389573R92

LEVER

ASSY. shifter, PTO, tractors with auxiliary valves

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

19

390001R1

GRIP

shifter lever, PTO

1шт.

20

3072193R91

FORK

ASSY. shifter, high-speed, not used on tractors with forward and reverse transmission or dual clutch

1шт.

21

751797R3

PIN

pivot, interlock latch, not used on tractors with forward and reverse transmission or dual clutch

1шт.

22

751799R12

PLATE

ASSY. operating, interlock latch, not used on tractors with forward and reverse transmission or dual clutch

1шт.

3064717R1

CLIP

retaining

2шт.

23

751794R2

LATCH

interlock, not used on tractors with forward and reverse transmission or dual clutch

1шт.

3066786R1

SPARE PART cir, interlock latch, 1/4"

1шт.

16558R1

WASHER

17/64" x 5/8" x 18 gauge

1шт.

24

751798R1

SPRING

interlock latch

1шт.

25

3044010R11

FORK

BRACKET ASSY., gear shifter guide, not used on tractors with forward and reverse transmission or dual clutch

1шт.

26

389569R91

LEVER

ASSY. shifter, PTO, tractors without auxiliary valves

1шт.

20596R1

PIN,3/8" x 1 1/4", Coiled

3/8" x 1 1/4", Coiled

1шт.
