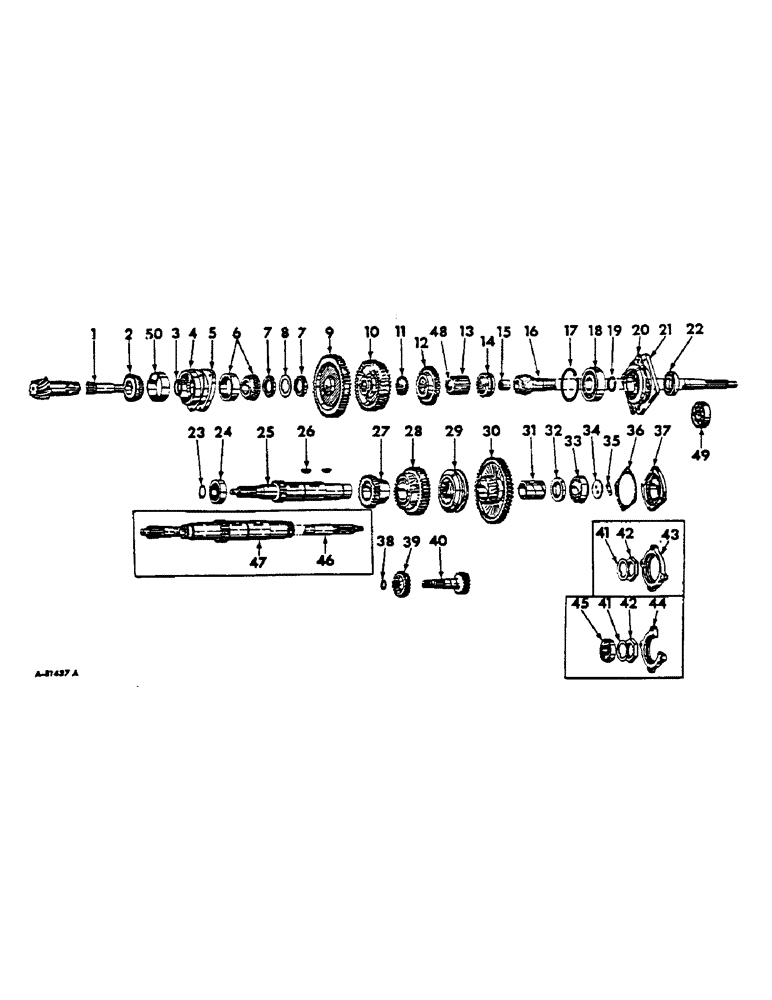

Запчасти Case IH 444 (B-08) - POWER TRAIN, TRANSMISSION GEARS AND SHAFTS (03) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

SHAFT transmission spline, order transmission spline shaft and drive bevel gear package

1шт.

2

392679R91

BEARING CONE,47.63mm ID x 29.37mm W

ASSY. spline shaft

1шт.

3

3044037R1

SPACER

SPARE PART bearing, spline shaft

1шт.

3044038R1

SHIM

roller bearing spacer, spline shaft, .002" thick

1шт.

3044040R1

SHIM

roller bearing spacer, spline shaft, .004" thick

1шт.

3044039R1

SHIM

roller bearing spacer, spline shaft, .010" thick

1шт.

4

704008R1

SHIM

roller bearing cage, spline shaft, .0108" thick, or as required

1шт.

4

704009R1

SHIM

SPARE PART roller bearing cage, spline shaft, .006" thick, or as required

1шт.

4

704010R1

SHIM

roller bearing cage, spline shaft, .0016" thick, or as required

1шт.

5

3044041R1

CAGE

roller bearing, spline shaft

1шт.

25-118

NUT,1/2"-20, G5

hex, 1/2"-20

3шт.

186334

SCREW cap, hex head, 1/2"-20 x 2-5/8"

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

3шт.

6

3044033R91

BEARING

ASSY. taper roller, front, spline shaft

1шт.

7

3044035R1

BEARING LOCK NUT

lock, bearing, spline shaft

2шт.

8

3044036R1

LOCK WASHER

lock nut, bearing, spline shaft

1шт.

9

3043990R1

GEAR

sliding, 1st and reverse speed, 15 teeth

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed, 44 teeth and 38 teeth

1шт.

11

751073R2

GEAR

coupling, 4th and direct speed

1шт.

12

751072R3

SPLINED COUPLING

GEAR sliding, 4th and direct speed, 31 teeth

1шт.

13

3069962R11

GEAR

sliding quill, with two bearings 3069963R91

1шт.

14

751076R3

COUPLING, BREAK AWAY

sliding gear

1шт.

15

321981R91

NEEDLE BEARING

ASSY. pilot, spline shaft, transmission

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot bearing

1шт.

16

3069967R1

SHAFT

driving, transmission

1шт.

17

751081R1

CLIP

cir, bearing retaining, driving shaft

1шт.

18

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

rear, driving shaft, transmission

1шт.

19

751146R1

RING

CIRCLIP bearing, driving shaft

1шт.

20

704017R1

GASKET

bearing cage, driving shaft

1шт.

21

751181R1

CAGE

bearing, driving shaft, tractors without constant running PTO or forward and reverse transmission

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

22

751080R91

SEAL

oil, driving shaft

1шт.

23

703984R1

SNAP RING

CIRCLIP rear ball bearing, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

23

751638R1

RING, SNAP

RING SNAP CIRCLIP rear ball bearing, countershaft, tractors with constant running PTO, tractors with forward and reverse transmission

1шт.

24

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

rear, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

24

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

ball, rear, countershaft, tractors with constant running PTO, tractors with forward and reverse transmission

1шт.

25

3043987R1

COUNTERSHAFT

with 1st speed gear, tractors without constant running PTO or forward and reverse transmission

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

driving, 2nd speed, 26 teeth

1шт.

28

751055R3

GEAR

driving, 3rd and 4th speed, 32 teeth and 39 teeth

1шт.

29

3040868R3

SPLINED COUPLING

sliding gear

1шт.

30

3043988R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

1шт.

32

751059R1

SPACER

countershaft

1шт.

33

ST382

BEARING, BALL

front, countershaft

1шт.

34

751120R2

WASHER

retaining, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

PLATE lock, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

36

751061R1

GASKET

retainer, front ball bearing, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

37

751062R1

RETAINER

front ball bearing, countershaft, tractors without constant running PTO or forward and reverse transmission

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

38

704029R1

RING

CIRCLIP, 1 ext. seeger

1шт.

S/N 12780 and below

1шт.

38

515440R1

SNAP RING,#98, Ext

external, 25 mm

1шт.

S/N 12781 and above

1шт.

3110755R1

WASHER

reverse idler

1шт.

39

3043991R1

GEAR

driving, reverse idler, 21 teeth

1шт.

40

3071849R2

SHAFT

GEAR reverse idler, 20 teeth

1шт.

41

751066R1

WASHER

lock, front bearing, countershaft, tractors with constant running PTO, tractors with forward and reverse transmission

1шт.

42

751065R1

BEARING LOCK NUT

lock, front bearing, countershaft, tractors with constant running PTO, tractors with forward and reverse transmission

1шт.

43

751150R1

RETAINER

front ball bearing, countershaft, tractors with constant running PTO

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

44

3048705R1

RETAINER

front ball bearing, countershaft, tractors with forward and reverse transmission

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

45

3048764R1

SLINGER

FLINGER oil, PTO front shaft, tractors with forward and reverse transmission

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set, hex socket head, cup point, 1/4" x 1/4"

2шт.

46

3068451R2

SHAFT

front PTO, tractors with constant running PTO

1шт.

46

3048703R31

SHAFT

front PTO, with flinger, tractors with forward and reverse transmission

1шт.

516010R1

O-RING

CIRCLIP, 3/4" external

1шт.

751142R1

WASHER

retainer, PTO front shaft

1шт.

47

3043992R11

SHAFT

counter, with gear and bushing, 1st speed driving, tractors with constant running PTO, tractors with forward and reverse transmission

1шт.

48

3069963R91

BEARING

needle, sliding quill gear

2шт.

49

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

clutch pilot

1шт.

50

170234R1

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

BEARING rear, spline shaft

1шт.

372369R4

FLUID hy-tran, one quart can

1шт.
